Passenger Side Air Curtain (Navigator)

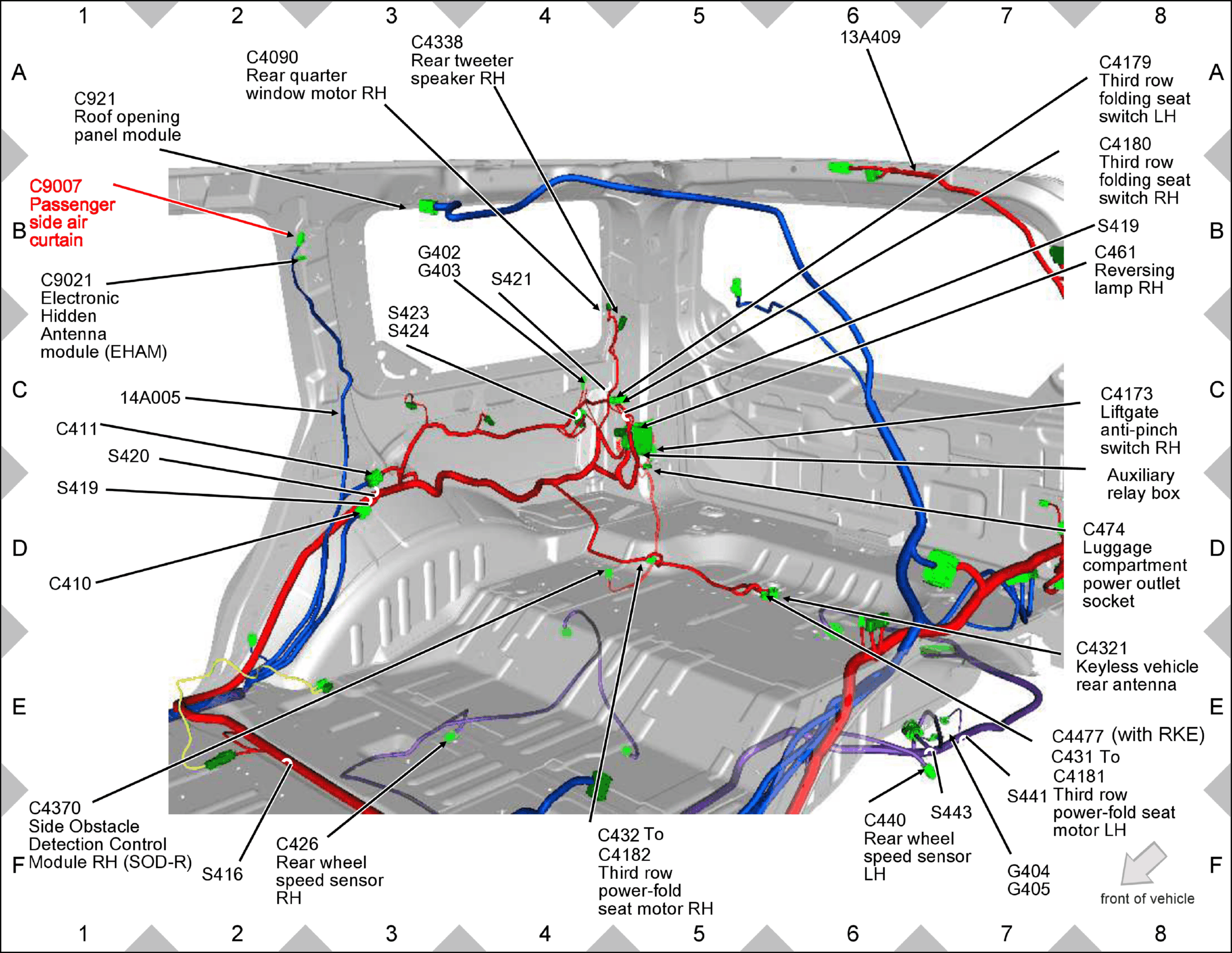

Fig 1: Passenger side air curtain (Navigator)

GFDW59096

Courtesy of FORD MOTOR COMPANY
