High Current Battery Junction Box (BJB) (Navigator)

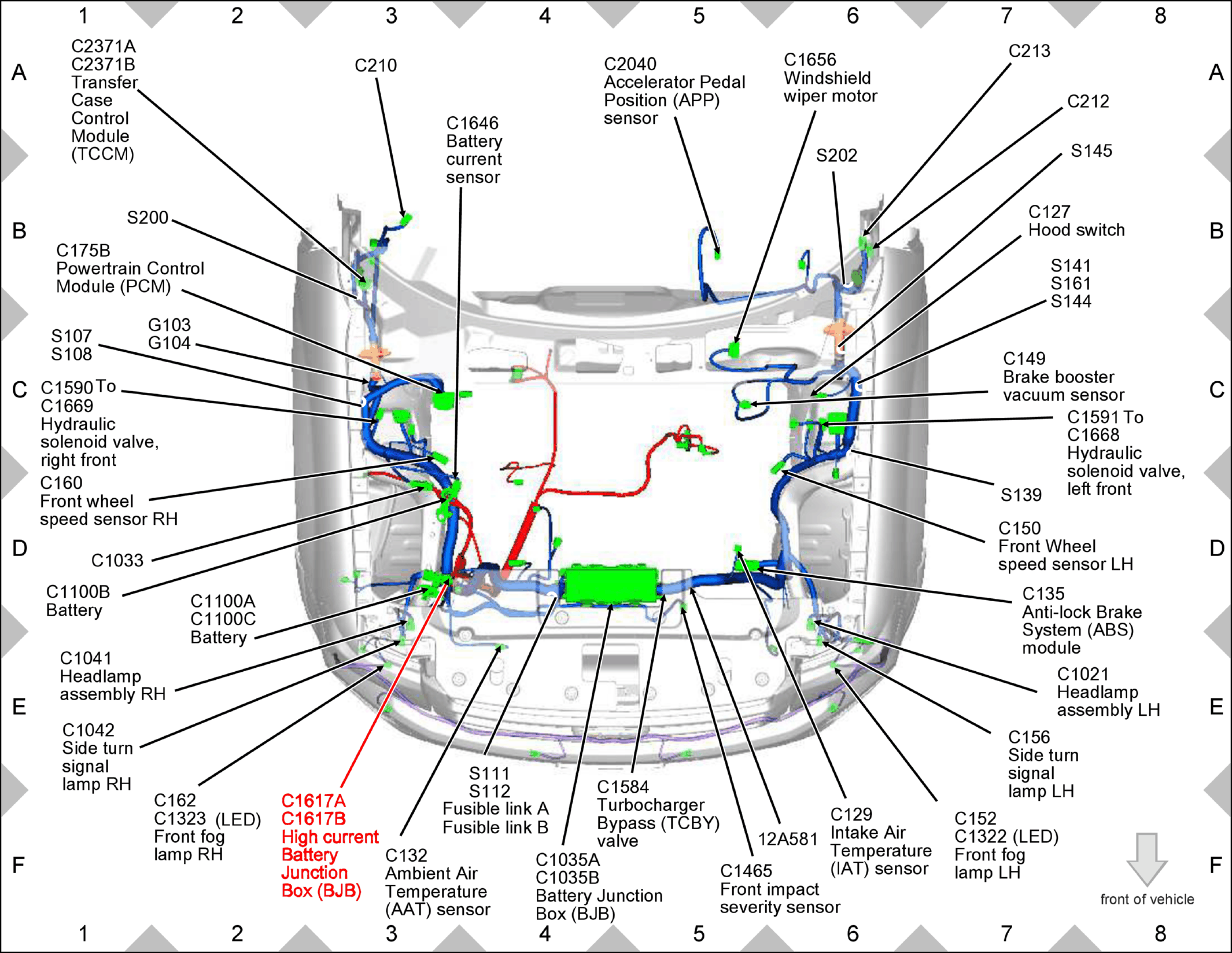

Fig 1: High current Battery Junction Box (BJB) (Navigator)

GFDW59039

Courtesy of FORD MOTOR COMPANY
