Defrost/Panel/Floor Mode Door Actuator (Manual A/C)

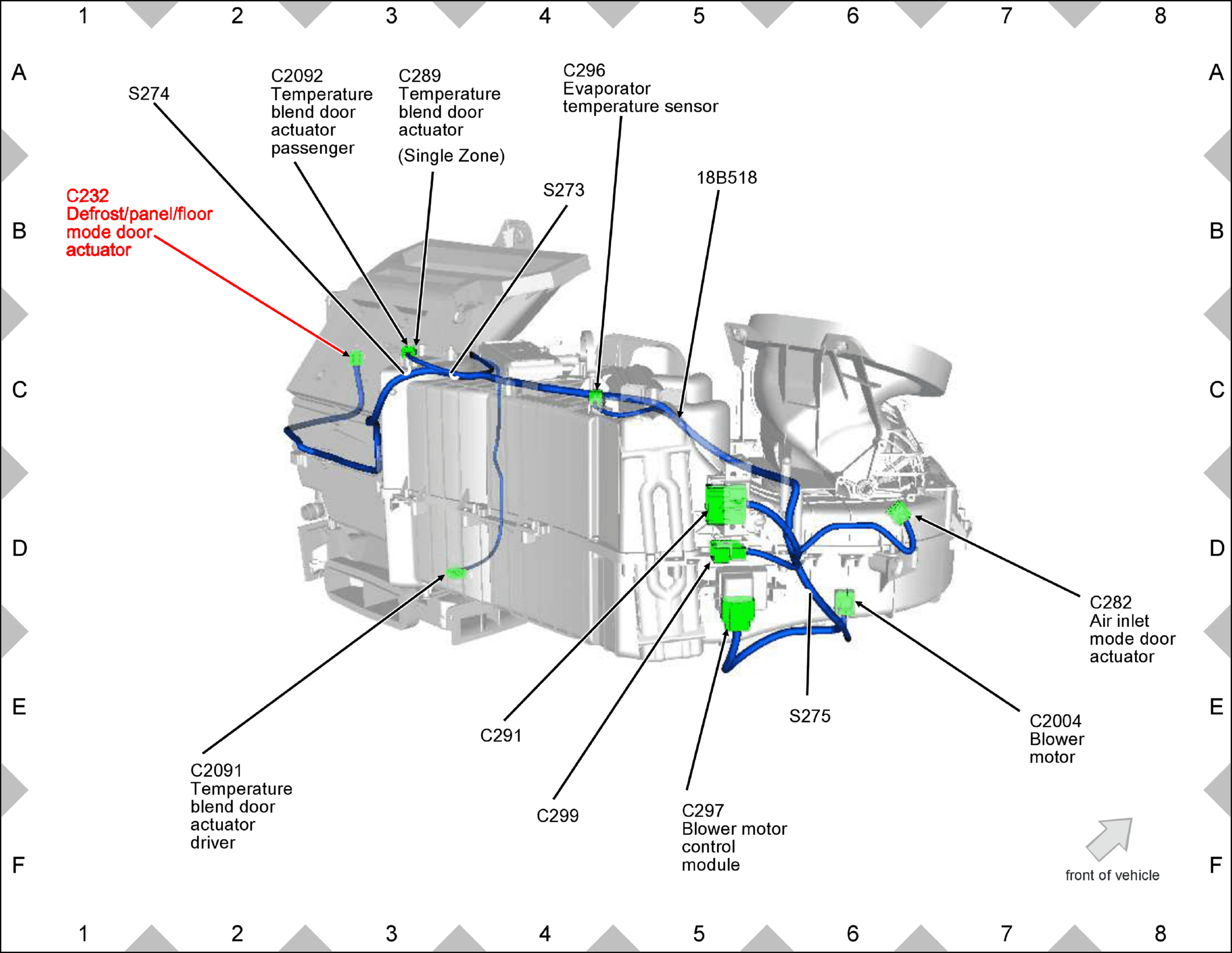

Fig 1: Defrost/Panel/Floor Mode Door Actuator (Manual A/C) Components Location

GFDW58983

Courtesy of FORD MOTOR COMPANY
