Climate Controlled Seat Backrest Thermo-Electric Device (TED), Driver Side

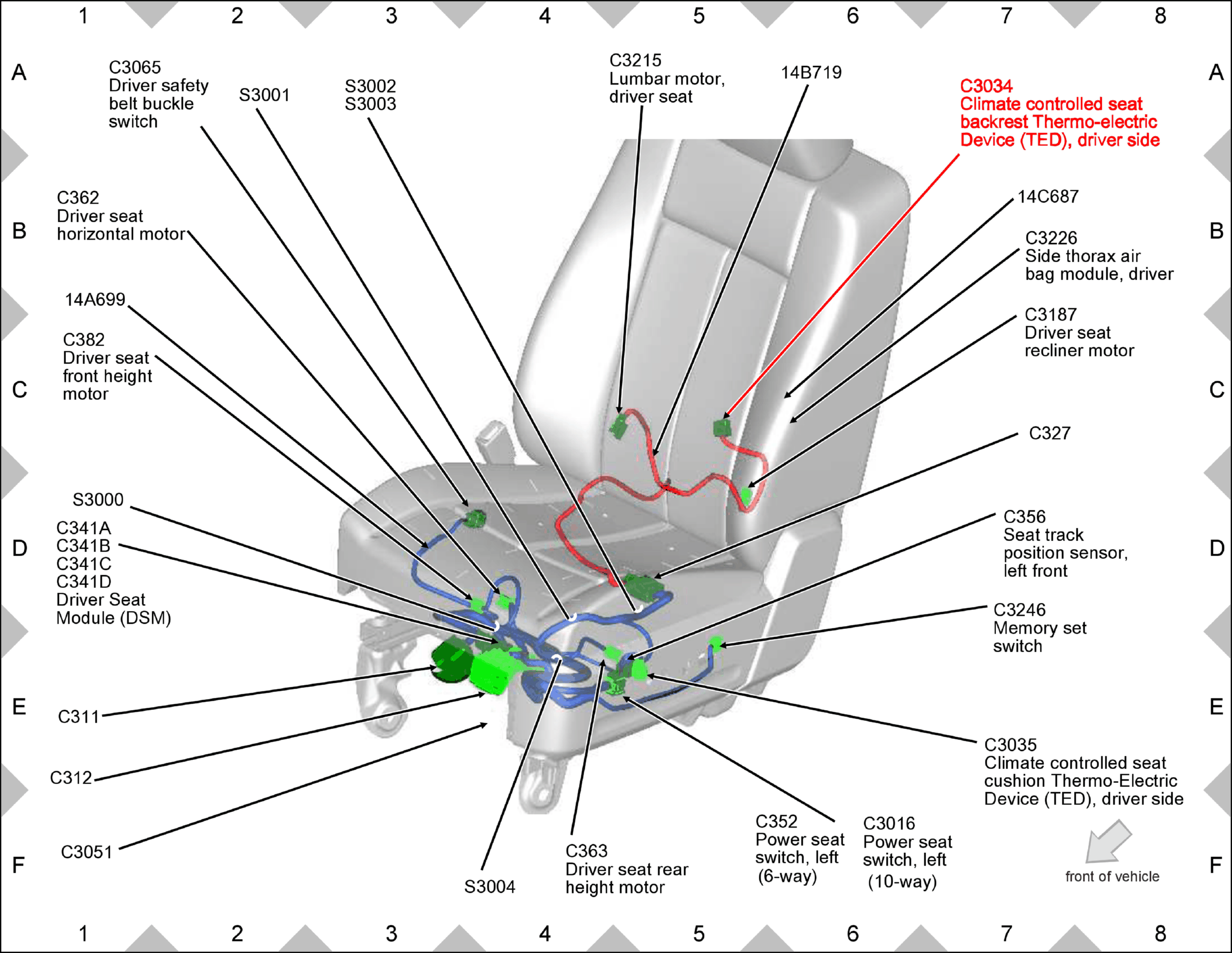

Fig 1: Climate Controlled Seat Backrest Thermo-Electric Device (TED), Driver Side Components Location
GFDW58969Courtesy of FORD MOTOR COMPANY
