Vehicle Dynamic Suspension

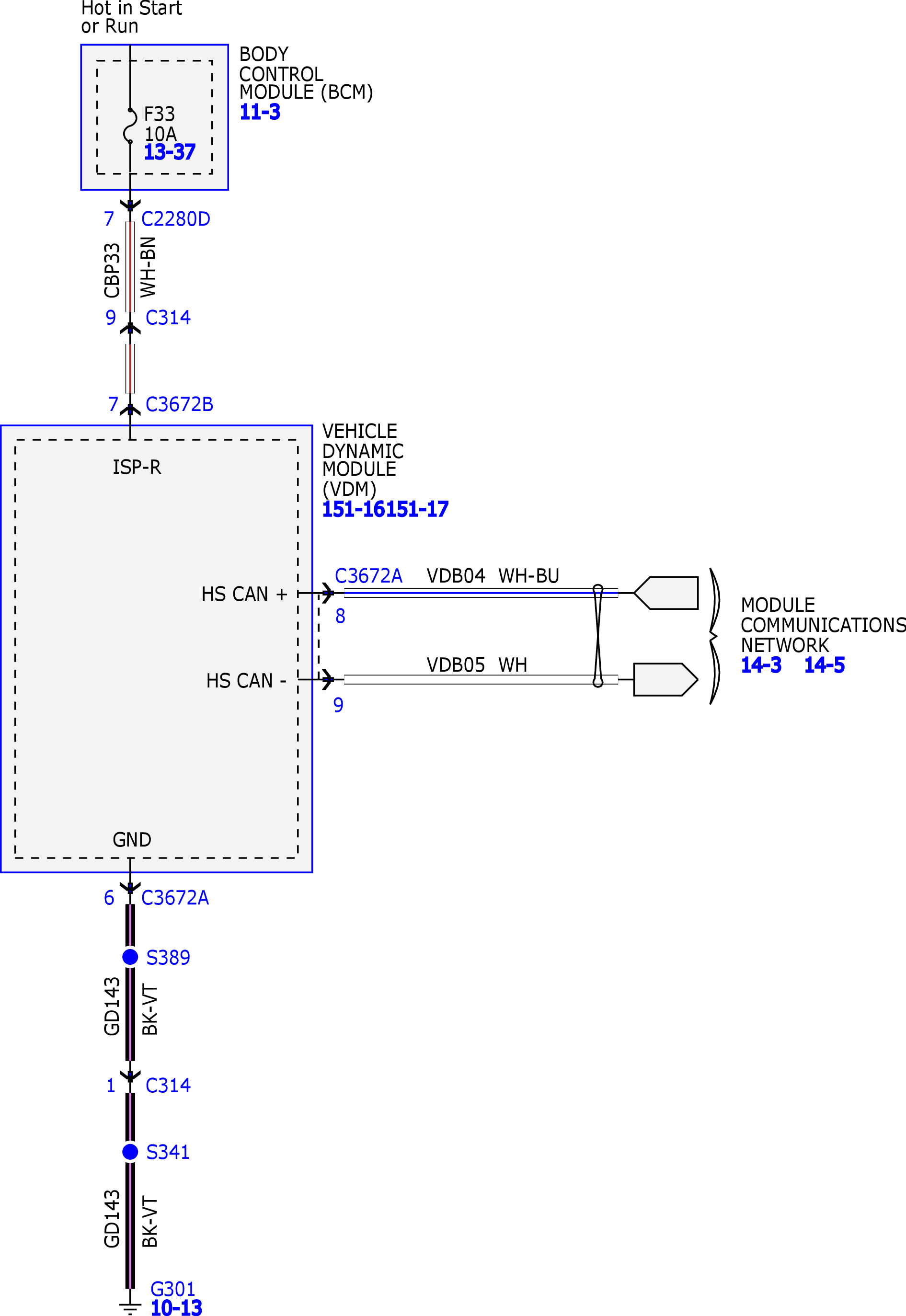

Fig 1: Vehicle Dynamic Suspension Wiring Diagram (1 of 3)
GFDW60208Courtesy of FORD MOTOR COMPANY

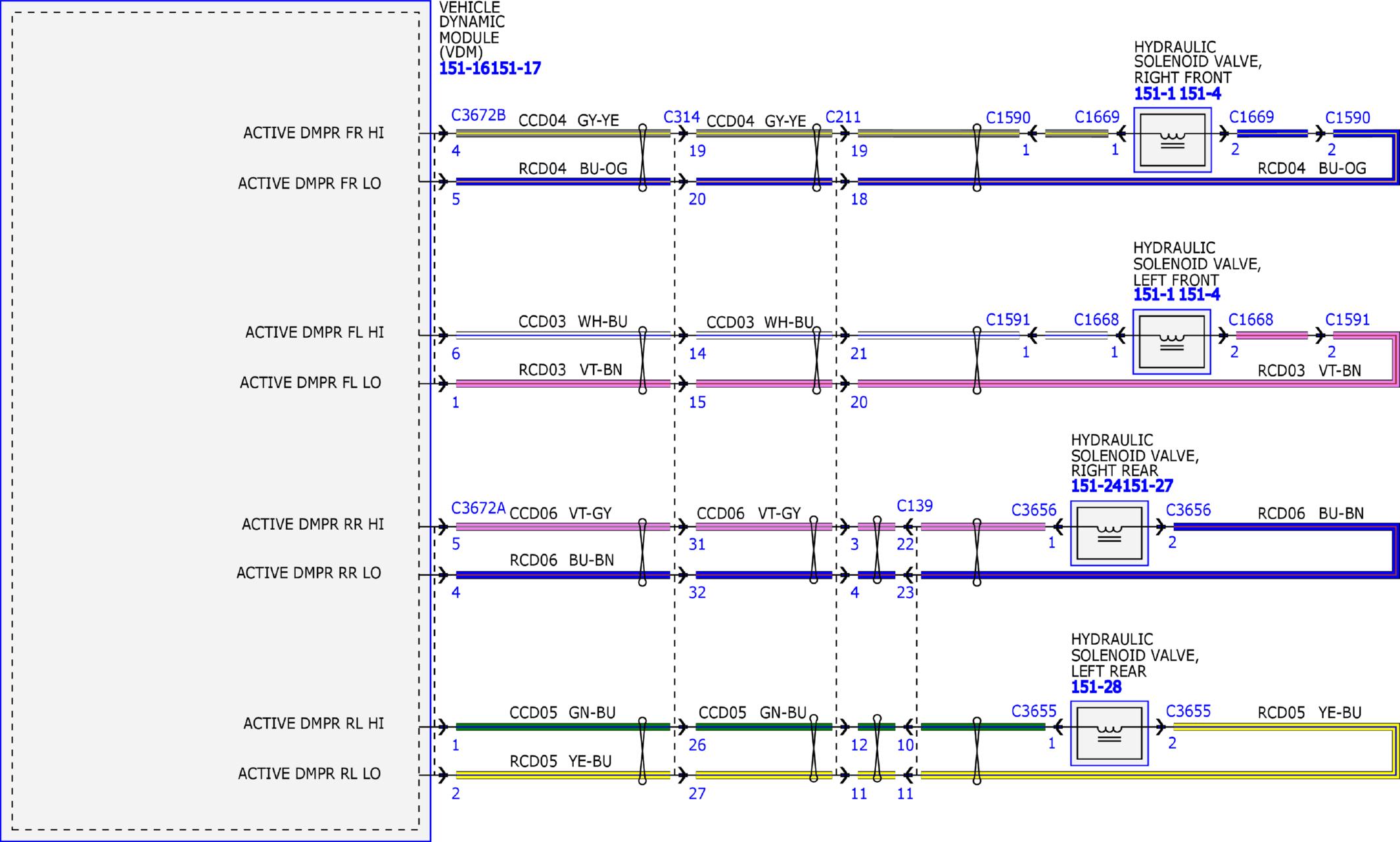

Fig 2: Vehicle Dynamic Suspension Wiring Diagram (2 of 3)
GFDW60209Courtesy of FORD MOTOR COMPANY

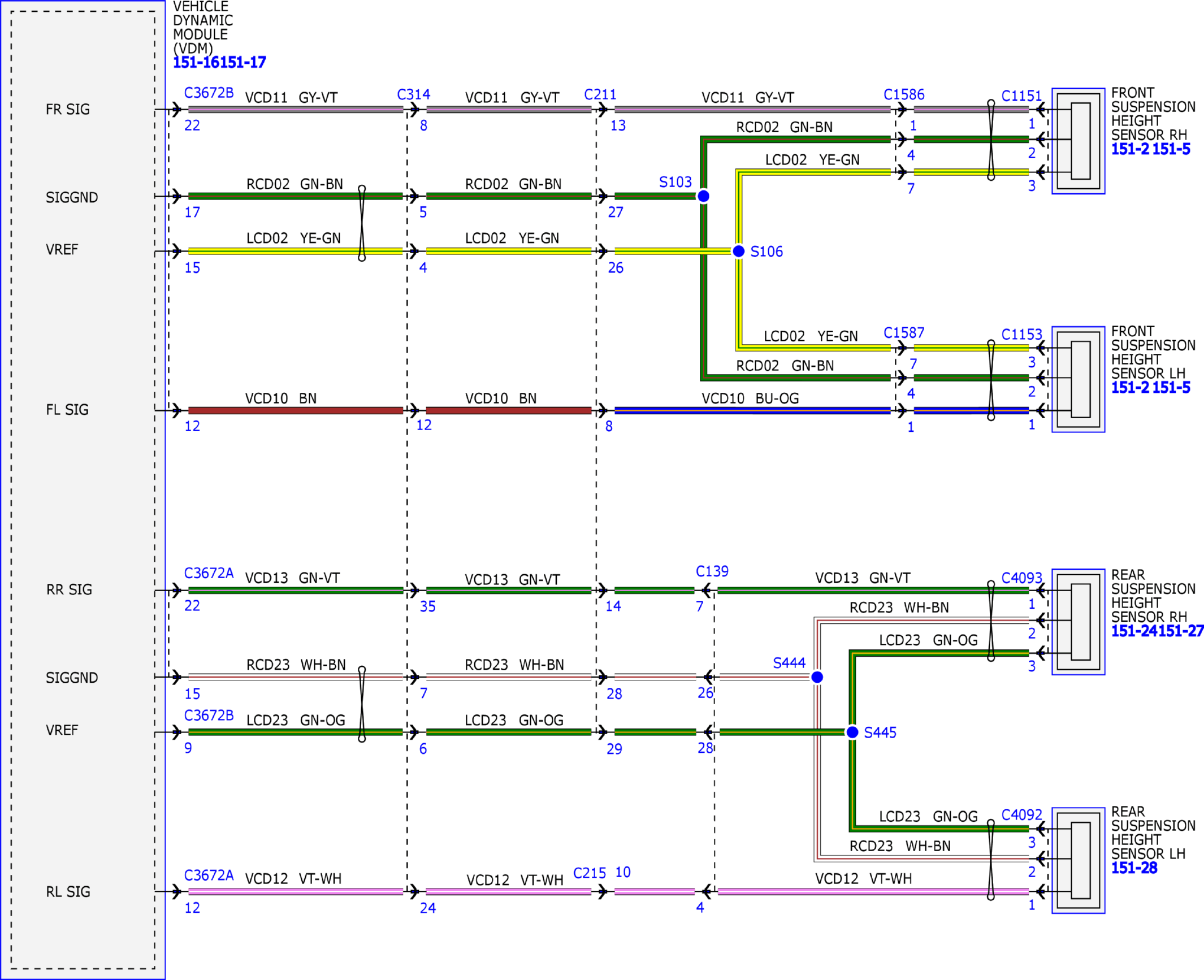

Fig 3: Vehicle Dynamic Suspension Wiring Diagram (3 of 3)
GFDW60210Courtesy of FORD MOTOR COMPANY
