Turn Signal/Stop/Hazard Lamps

Fig 1: Turn Signal/Stop/Hazard Lamps Wiring Diagram (1 of 6)
GFDW60202Courtesy of FORD MOTOR COMPANY

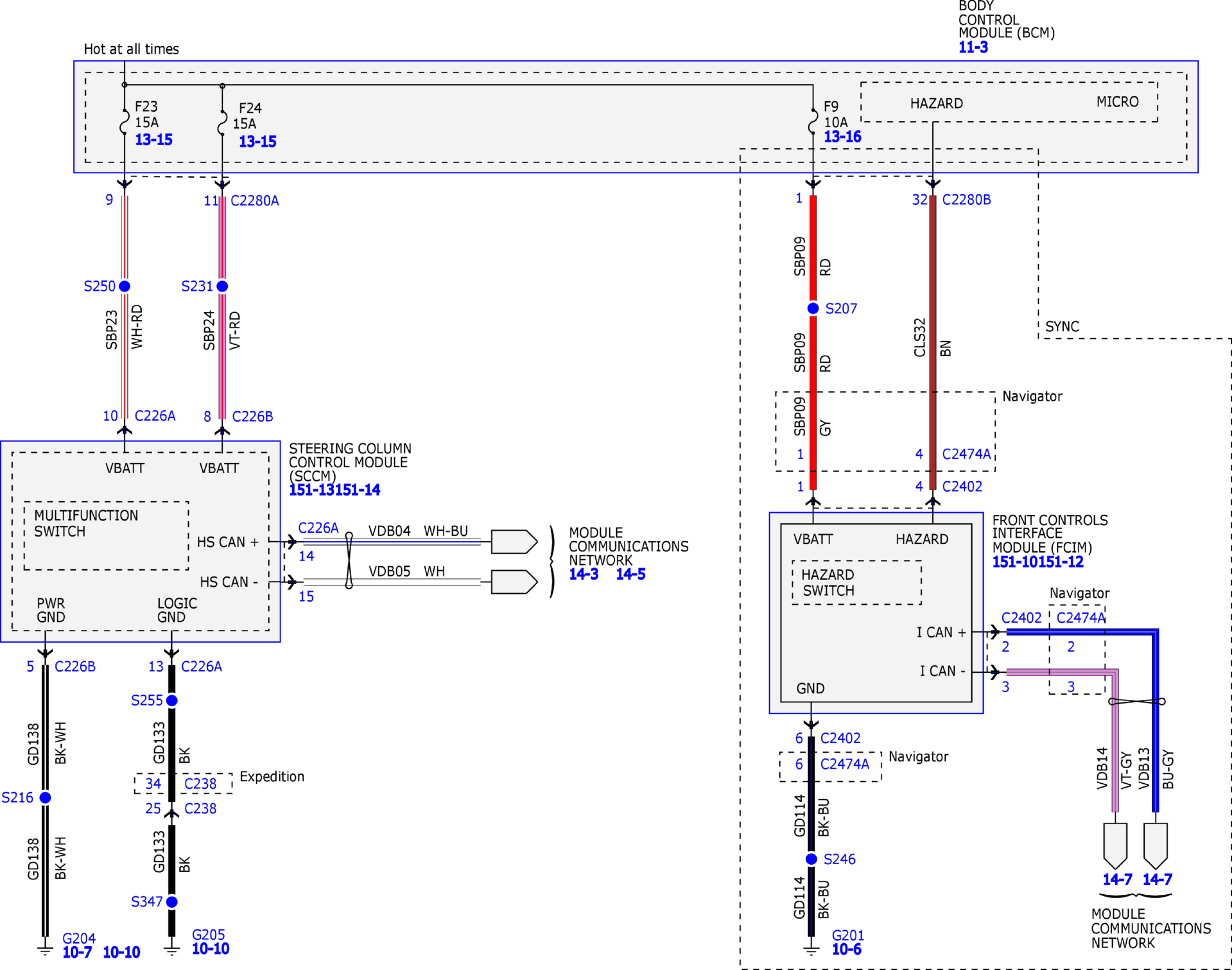

Fig 2: Turn Signal/Stop/Hazard Lamps Wiring Diagram (2 of 6)
GFDW60203Courtesy of FORD MOTOR COMPANY

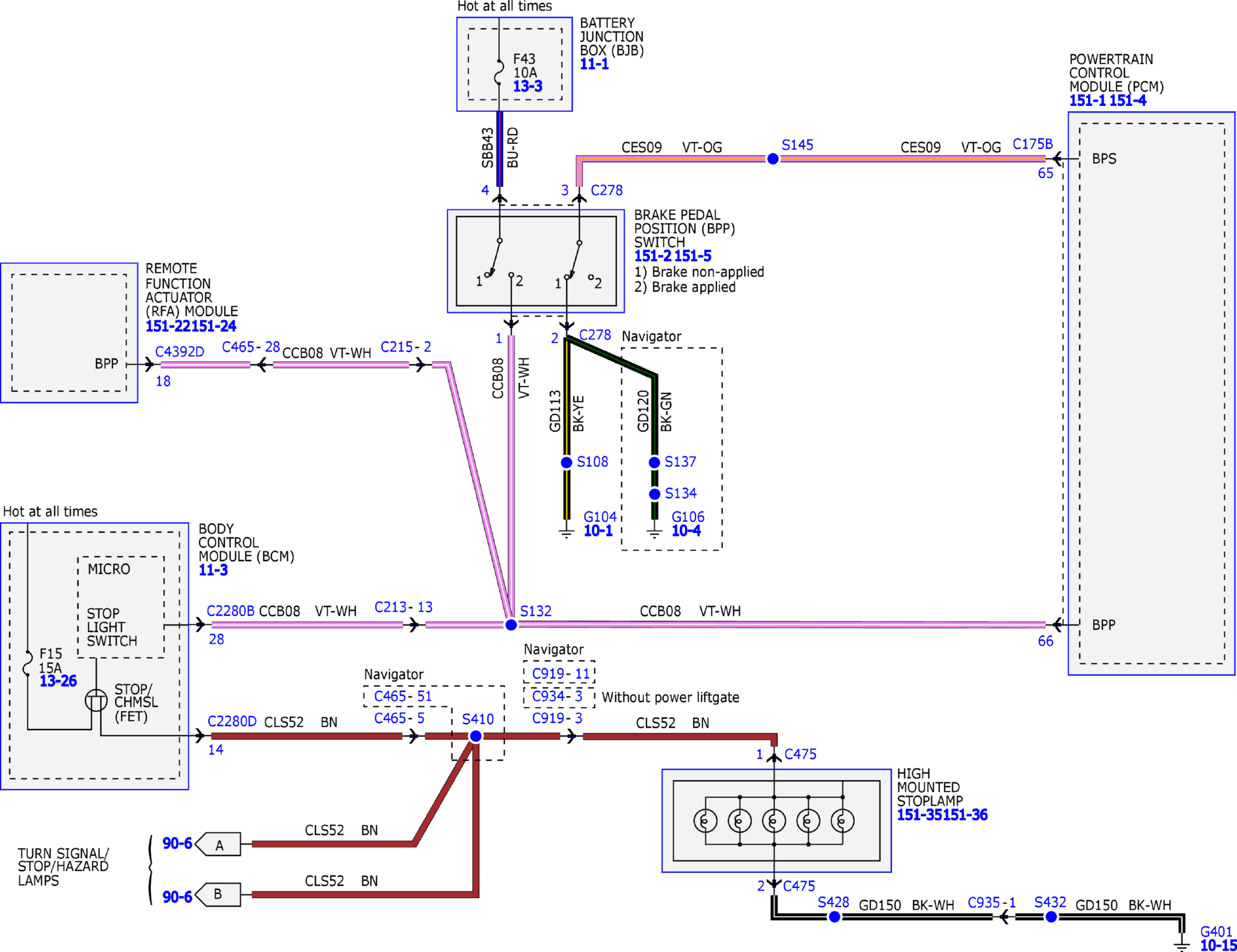

Fig 3: Turn Signal/Stop/Hazard Lamps Wiring Diagram (3 of 6)
GFDW60204Courtesy of FORD MOTOR COMPANY

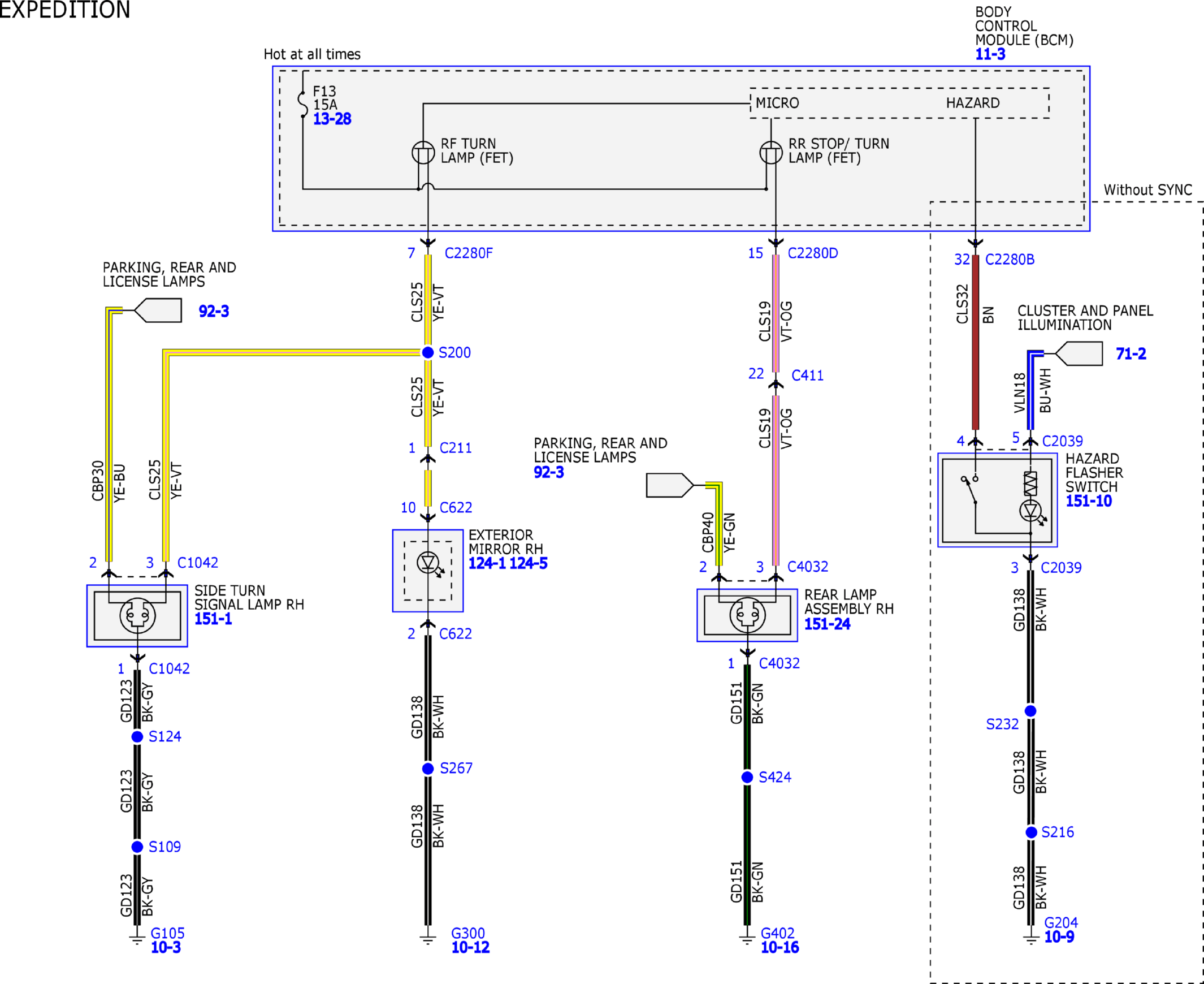

Fig 4: Turn Signal/Stop/Hazard Lamps Wiring Diagram (4 of 6)
GFDW60205Courtesy of FORD MOTOR COMPANY

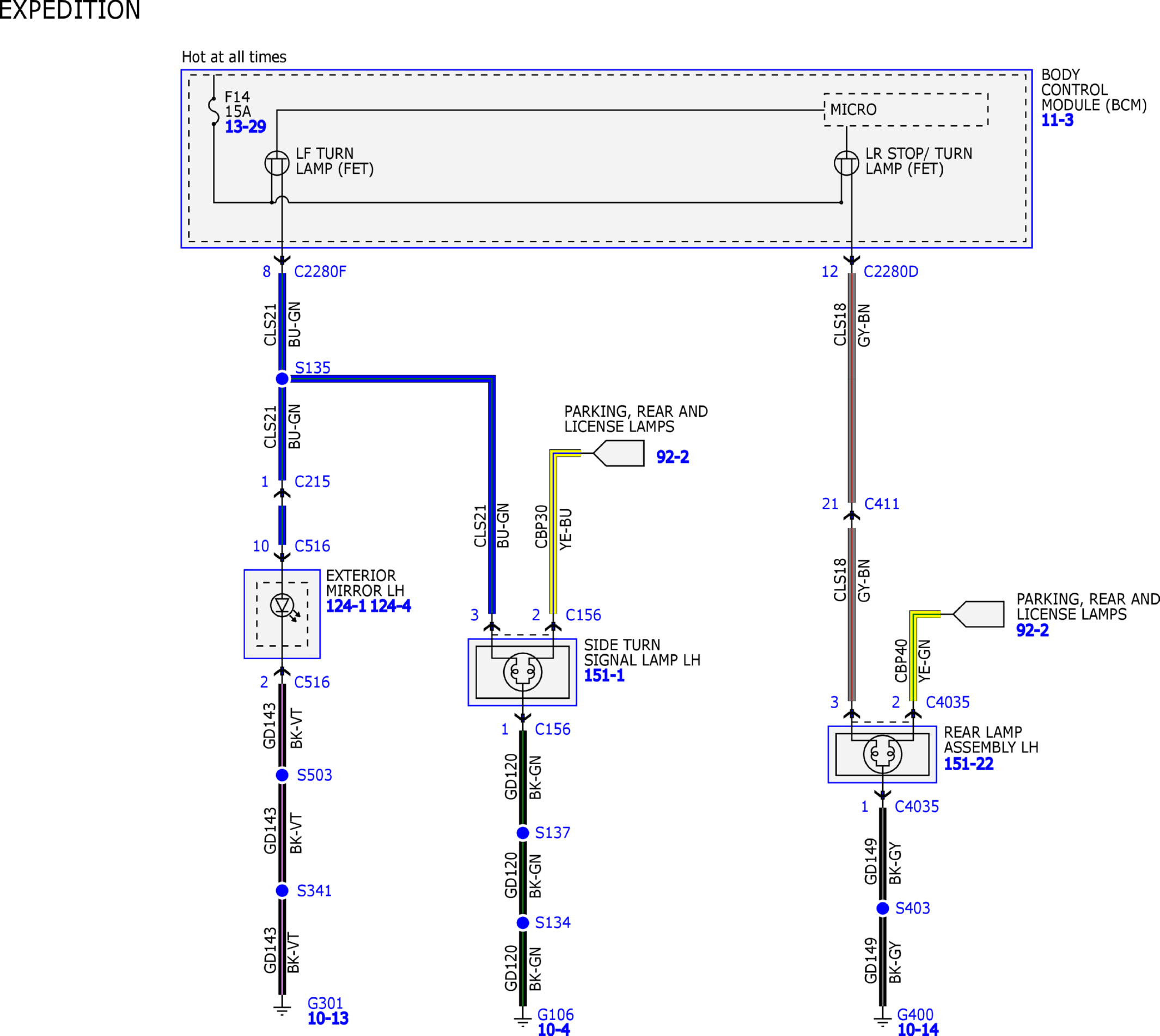

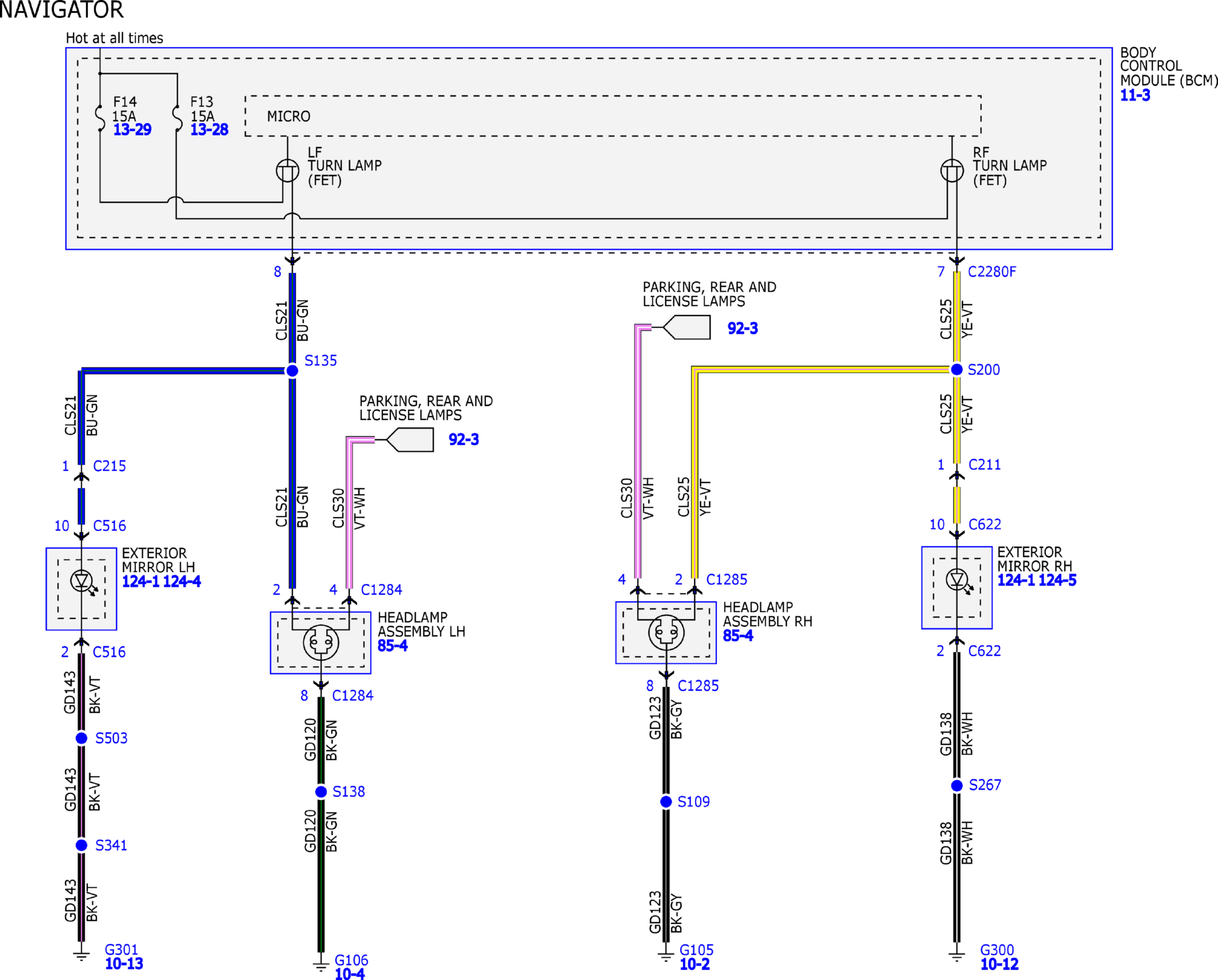

Fig 5: Turn Signal/Stop/Hazard Lamps Wiring Diagram (5 of 6)
GFDW60206Courtesy of FORD MOTOR COMPANY

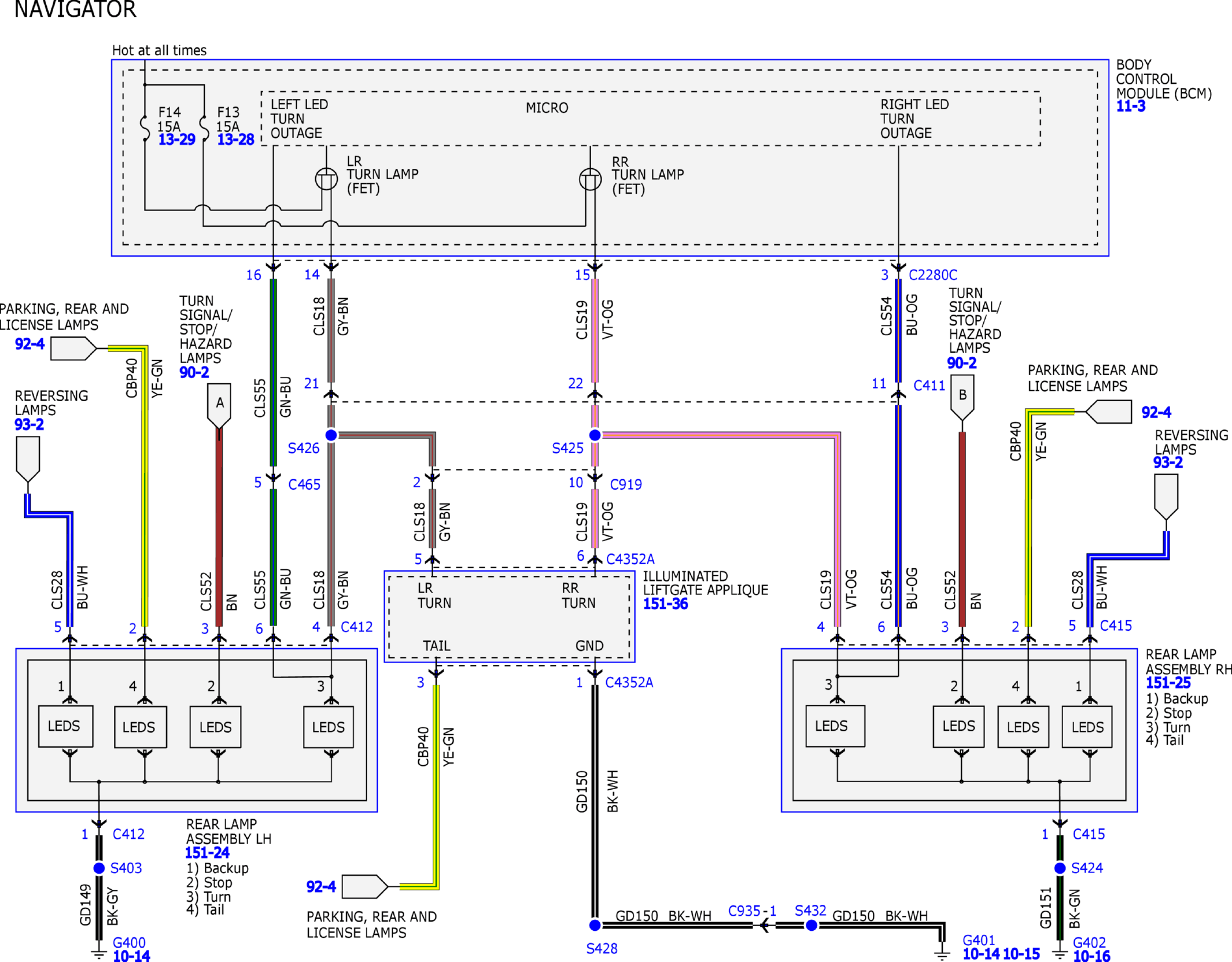

Fig 6: Turn Signal/Stop/Hazard Lamps Wiring Diagram (6 of 6)
GFDW60207Courtesy of FORD MOTOR COMPANY
