Reversing Lamps
Reversing Lamps

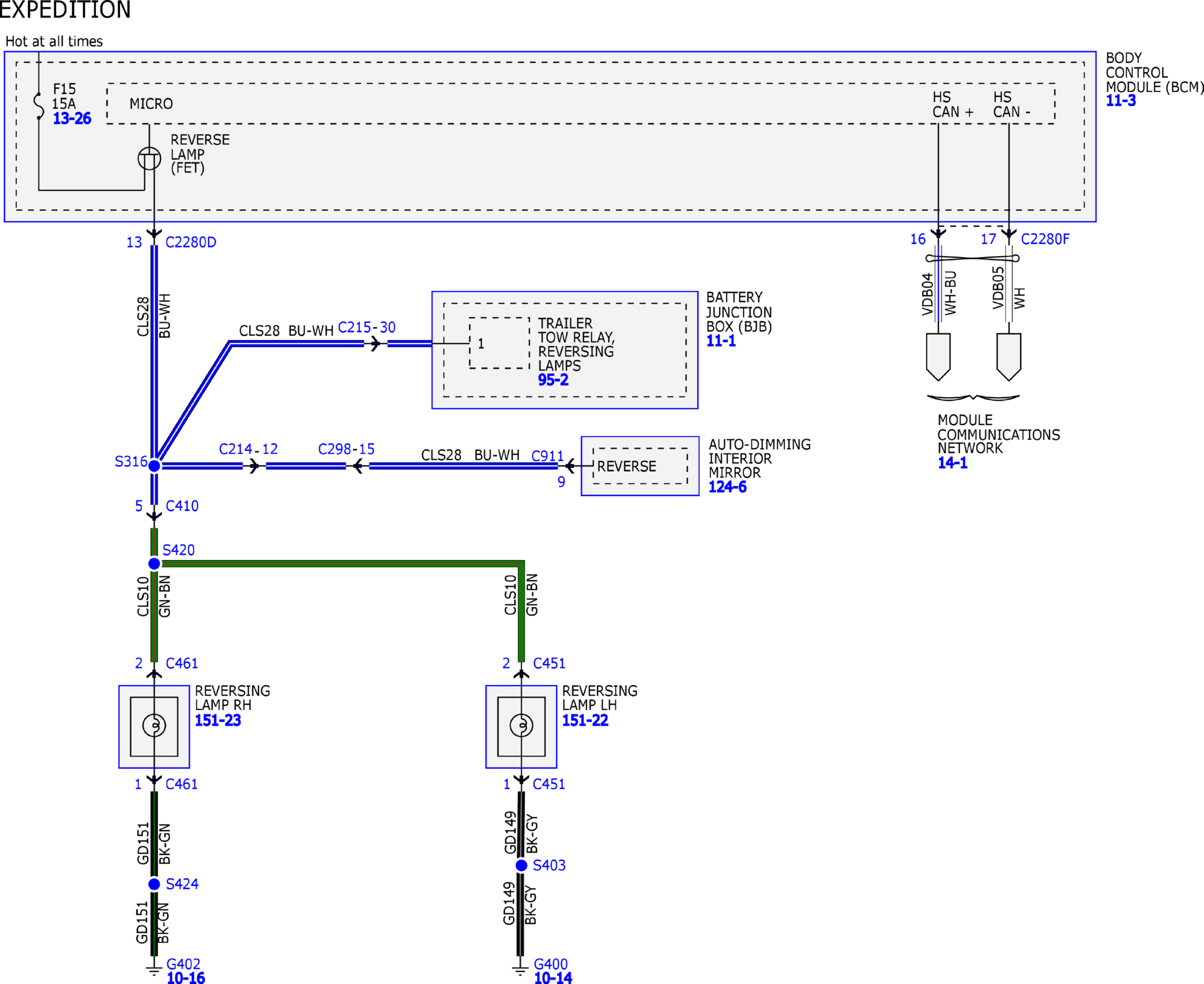

Fig 1: Reversing Lamps Wiring Diagram (1 of 2)
Courtesy of FORD MOTOR COMPANY

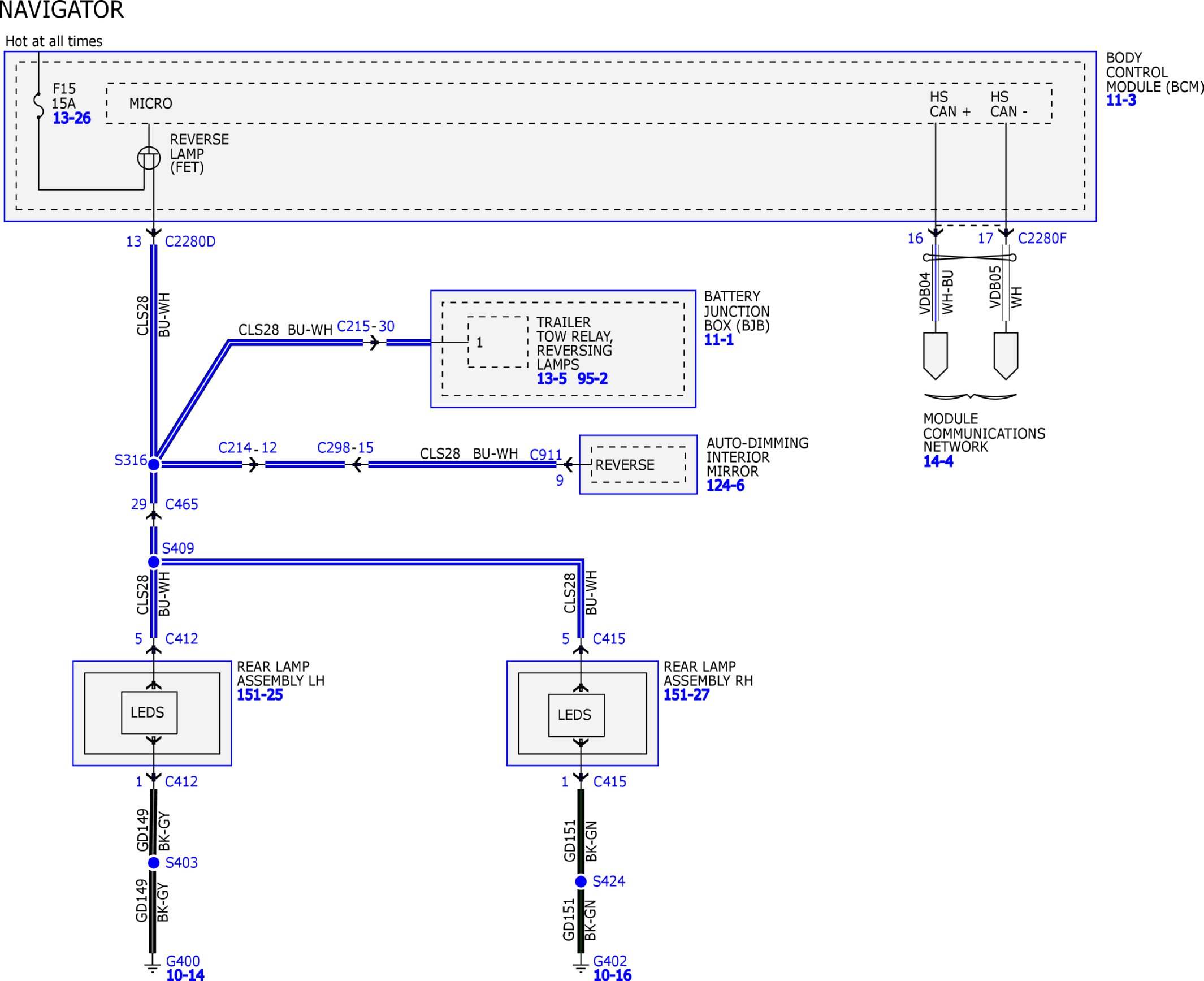

Fig 2: Reversing Lamps Wiring Diagram (2 of 2)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
