Interior Lamps

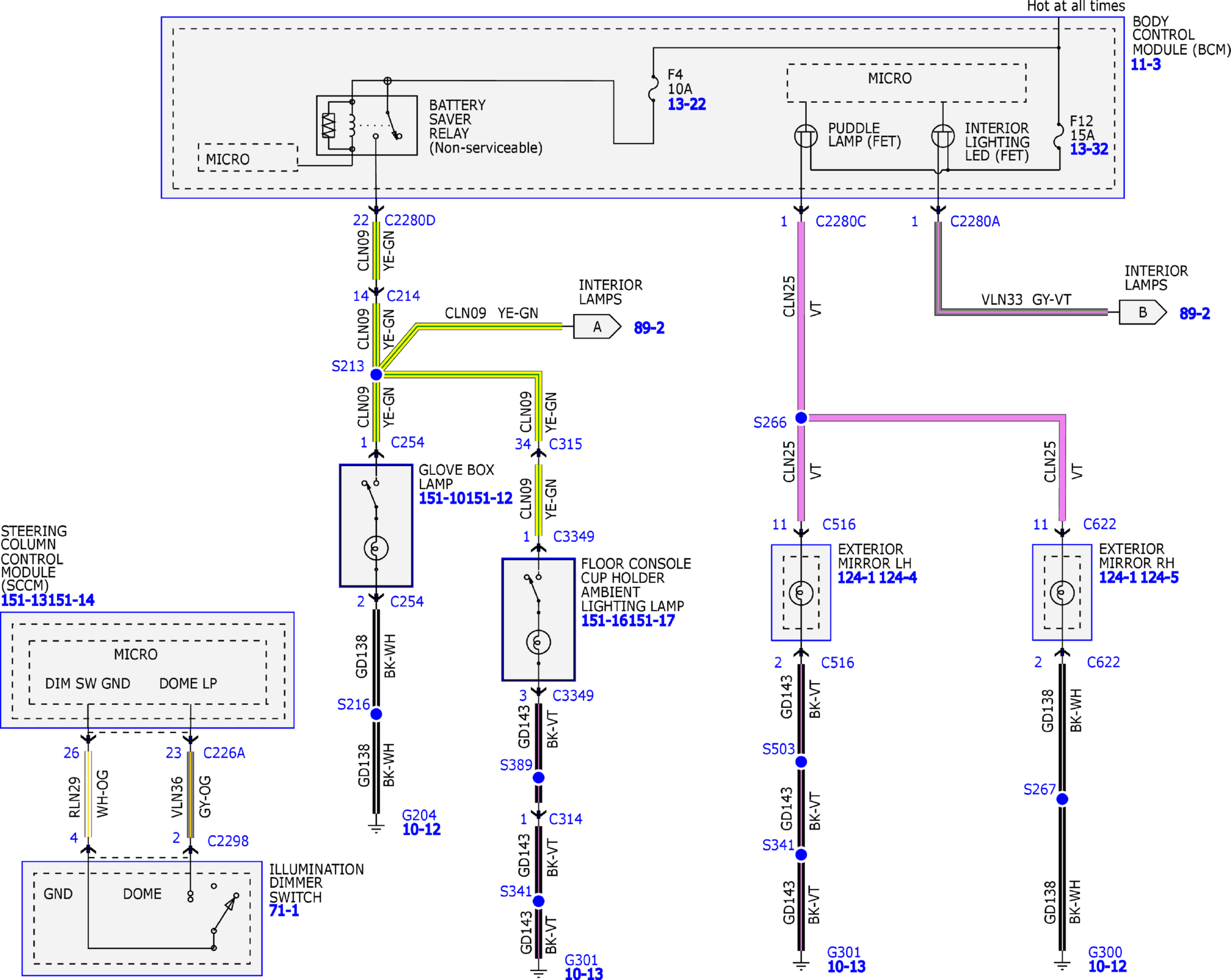

Fig 1: Interior Lamps Wiring Diagram (1 of 3)
GFDW60065Courtesy of FORD MOTOR COMPANY

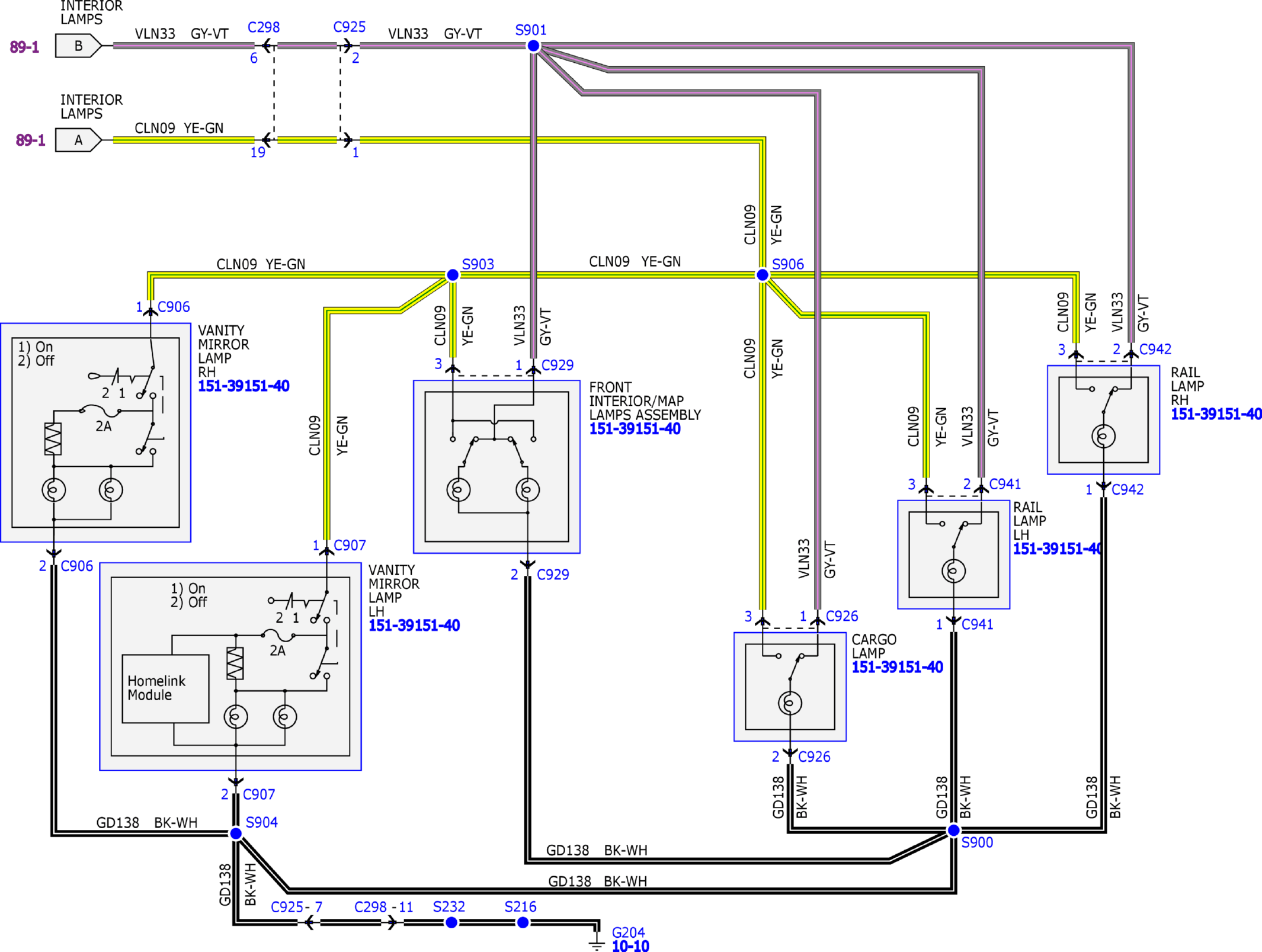

Fig 2: Interior Lamps Wiring Diagram (2 of 3)
GFDW60066Courtesy of FORD MOTOR COMPANY

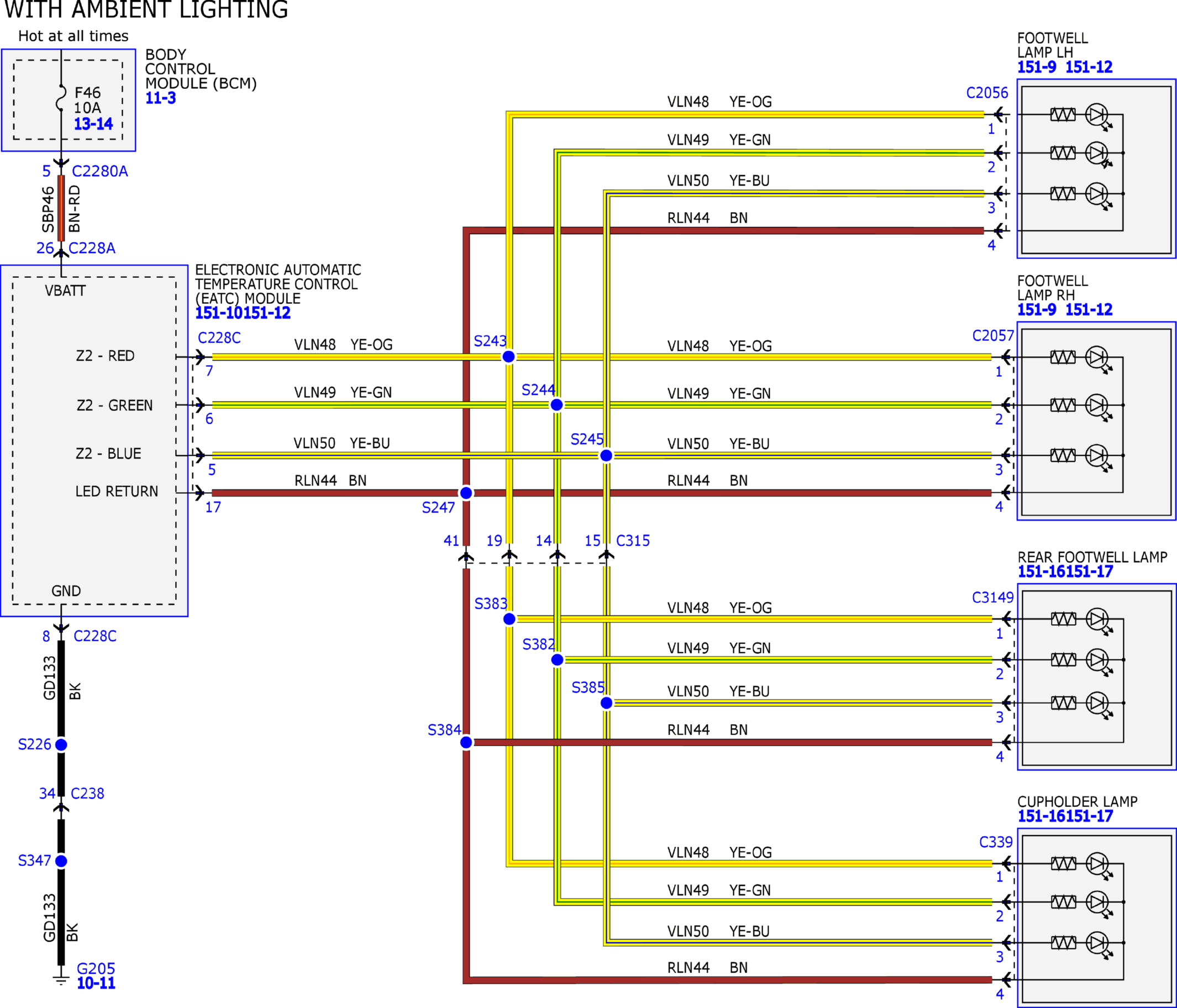

Fig 3: Interior Lamps Wiring Diagram (3 of 3)
GFDW60067Courtesy of FORD MOTOR COMPANY
