Instrument Cluster

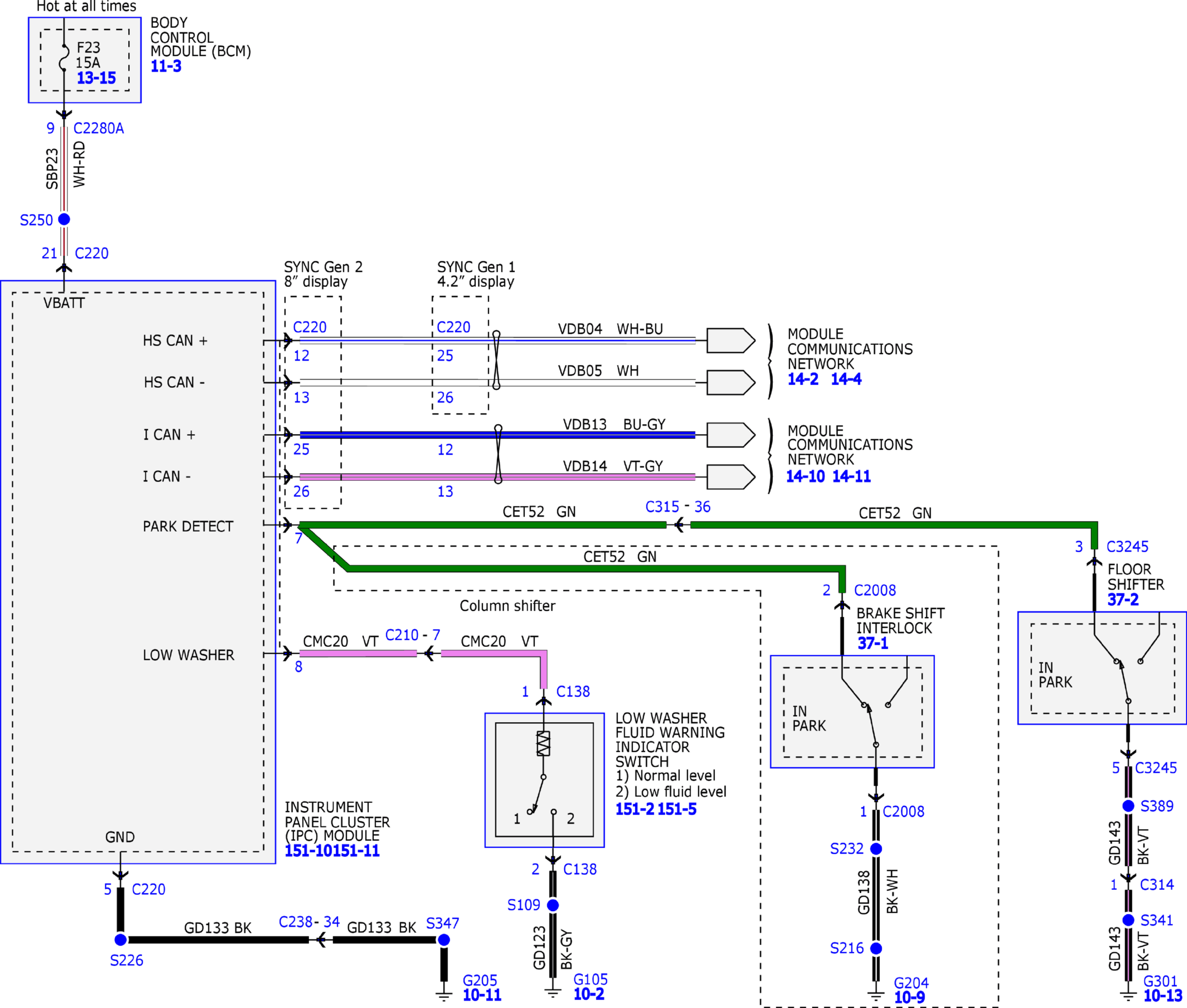

Fig 1: Instrument Cluster Wiring Diagram (1 of 5)
GFDW60060Courtesy of FORD MOTOR COMPANY

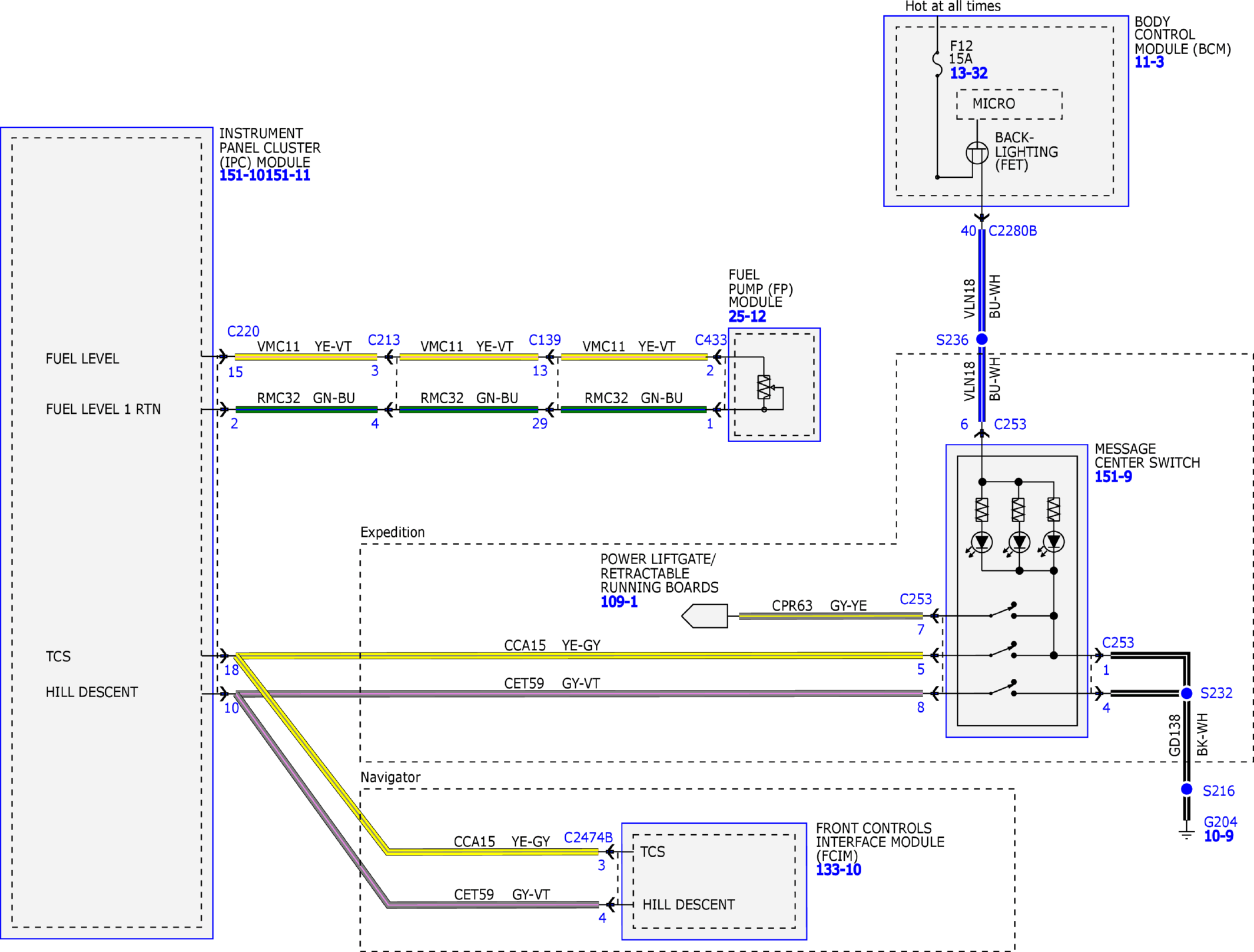

Fig 2: Instrument Cluster Wiring Diagram (2 of 5)
GFDW60061Courtesy of FORD MOTOR COMPANY

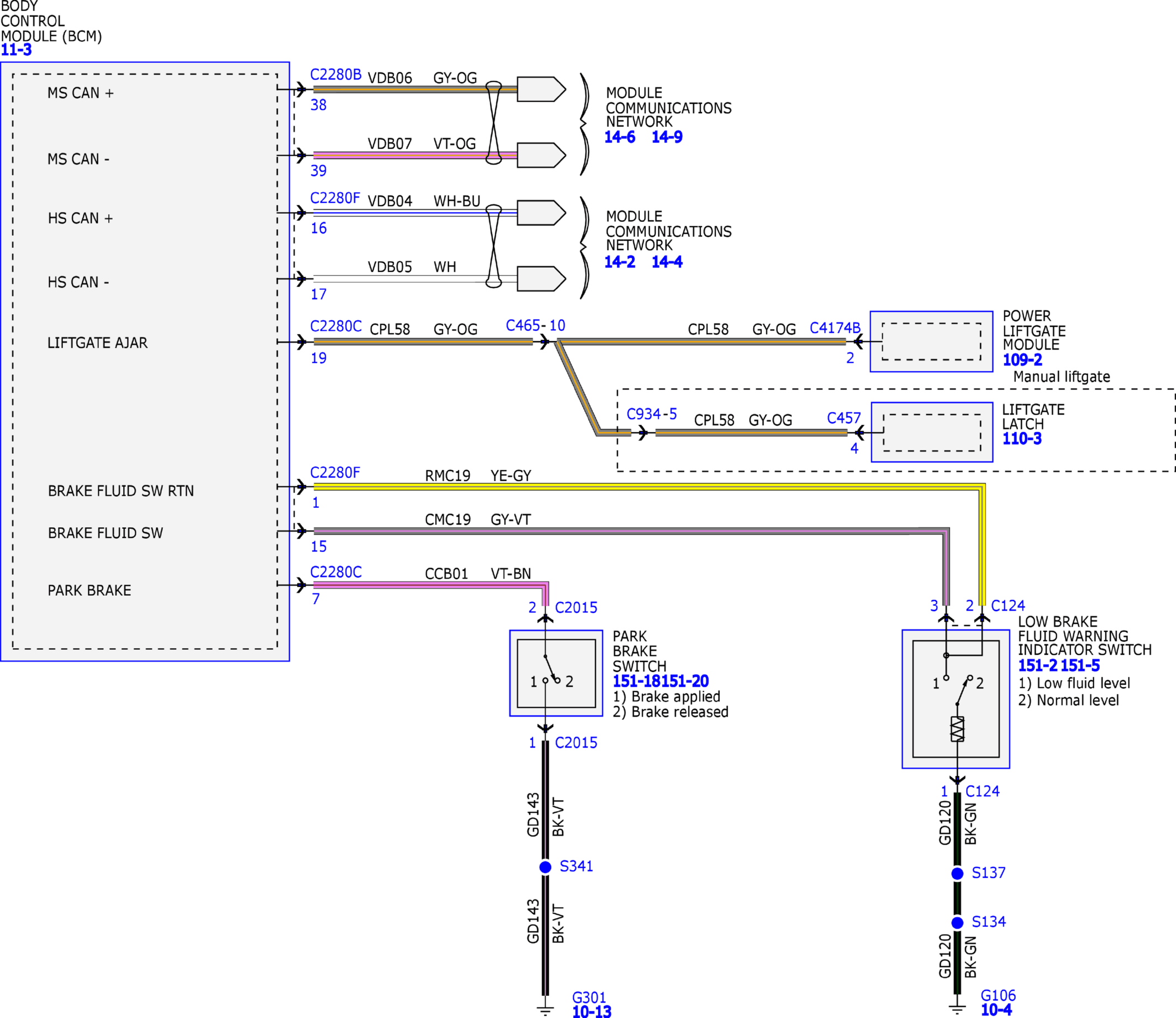

Fig 3: Instrument Cluster Wiring Diagram (3 of 5)
GFDW60062Courtesy of FORD MOTOR COMPANY

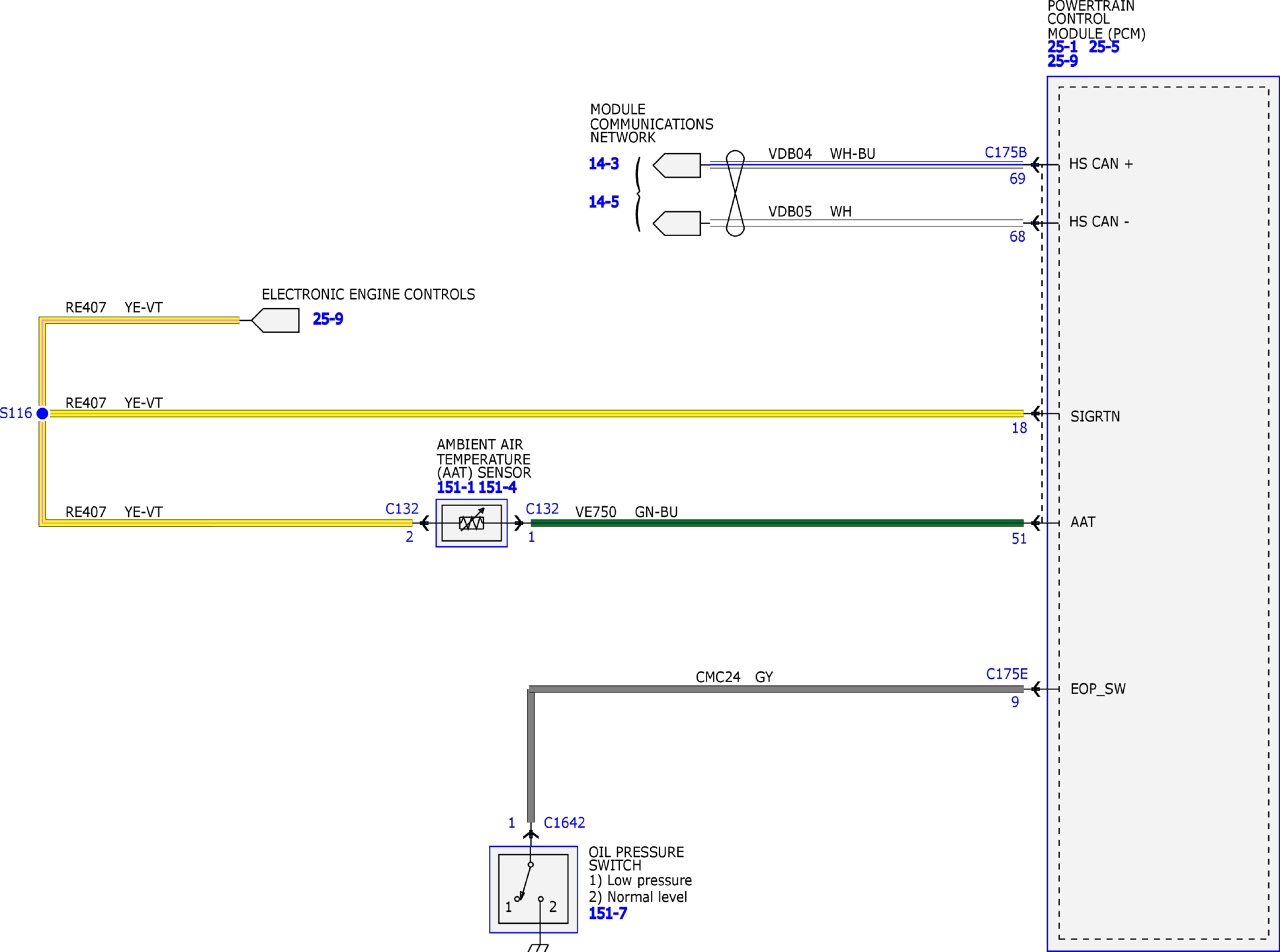

Fig 4: Instrument Cluster Wiring Diagram (4 of 5)
GFDW60063Courtesy of FORD MOTOR COMPANY

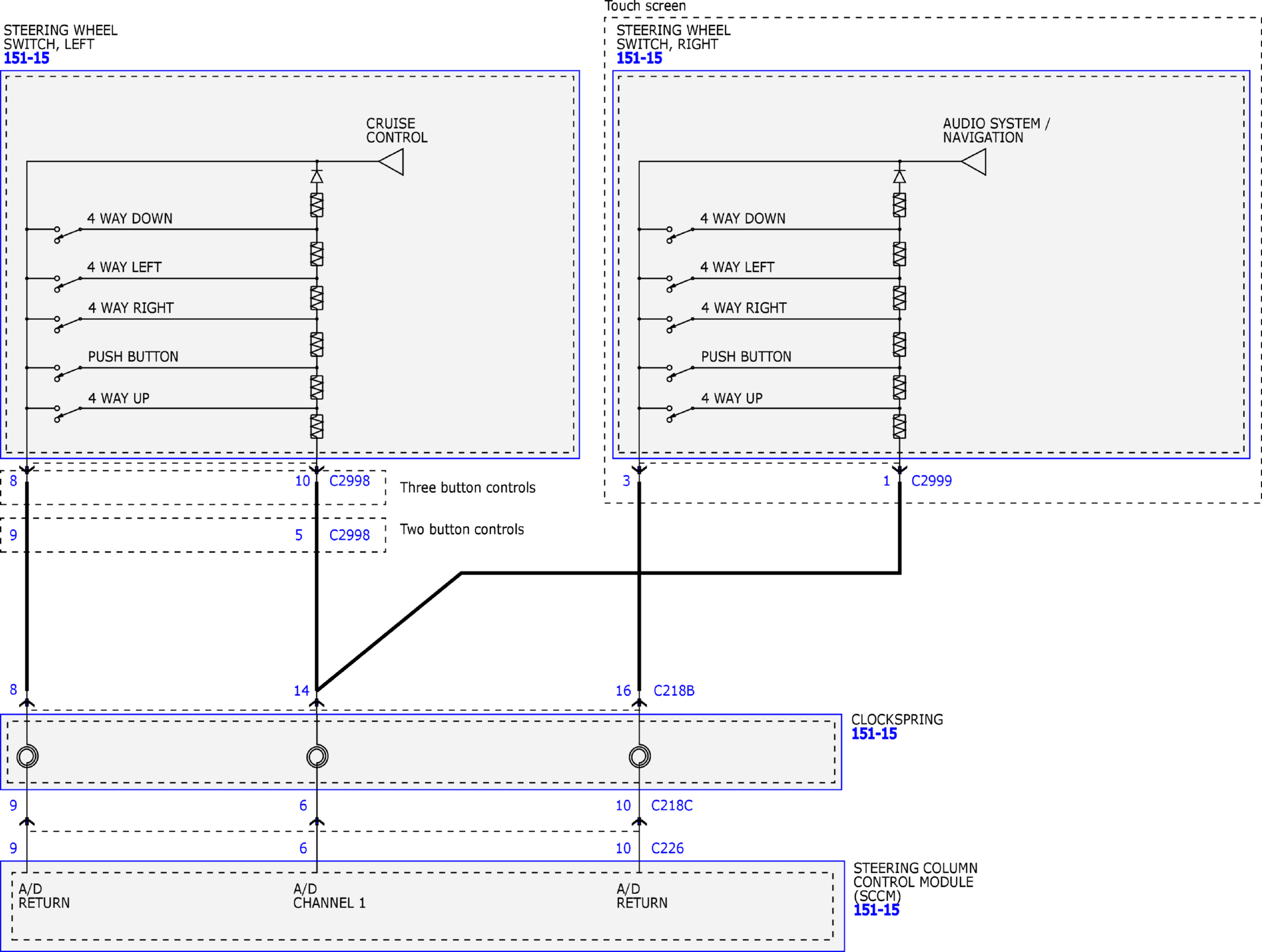

Fig 5: Instrument Cluster Wiring Diagram (5 of 5)
GFDW60064Courtesy of FORD MOTOR COMPANY
