Horn/Cigar Lighter

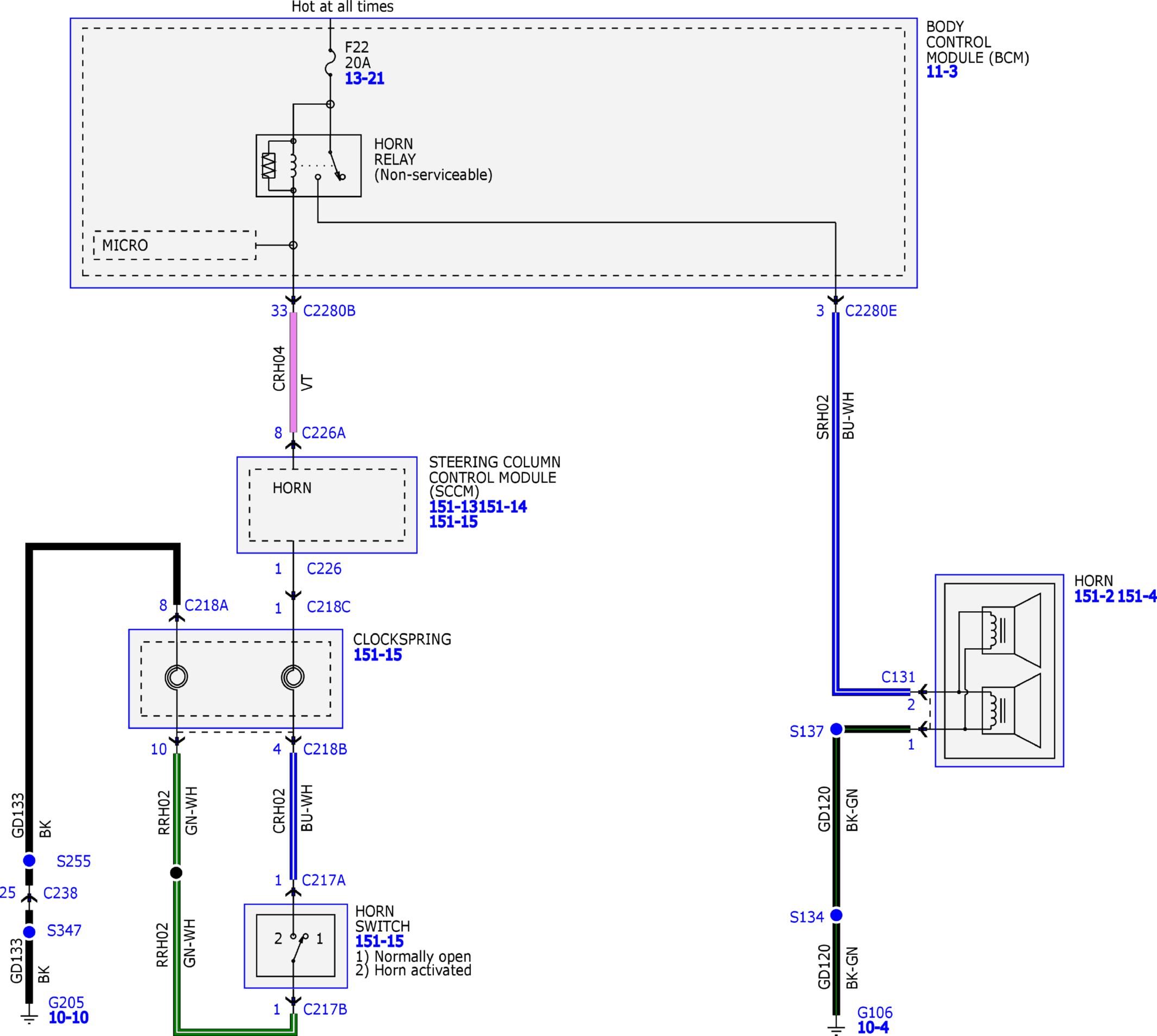

Fig 1: Horn/Cigar Lighter Wiring Diagram (1 of 3)
GFDW60057Courtesy of FORD MOTOR COMPANY

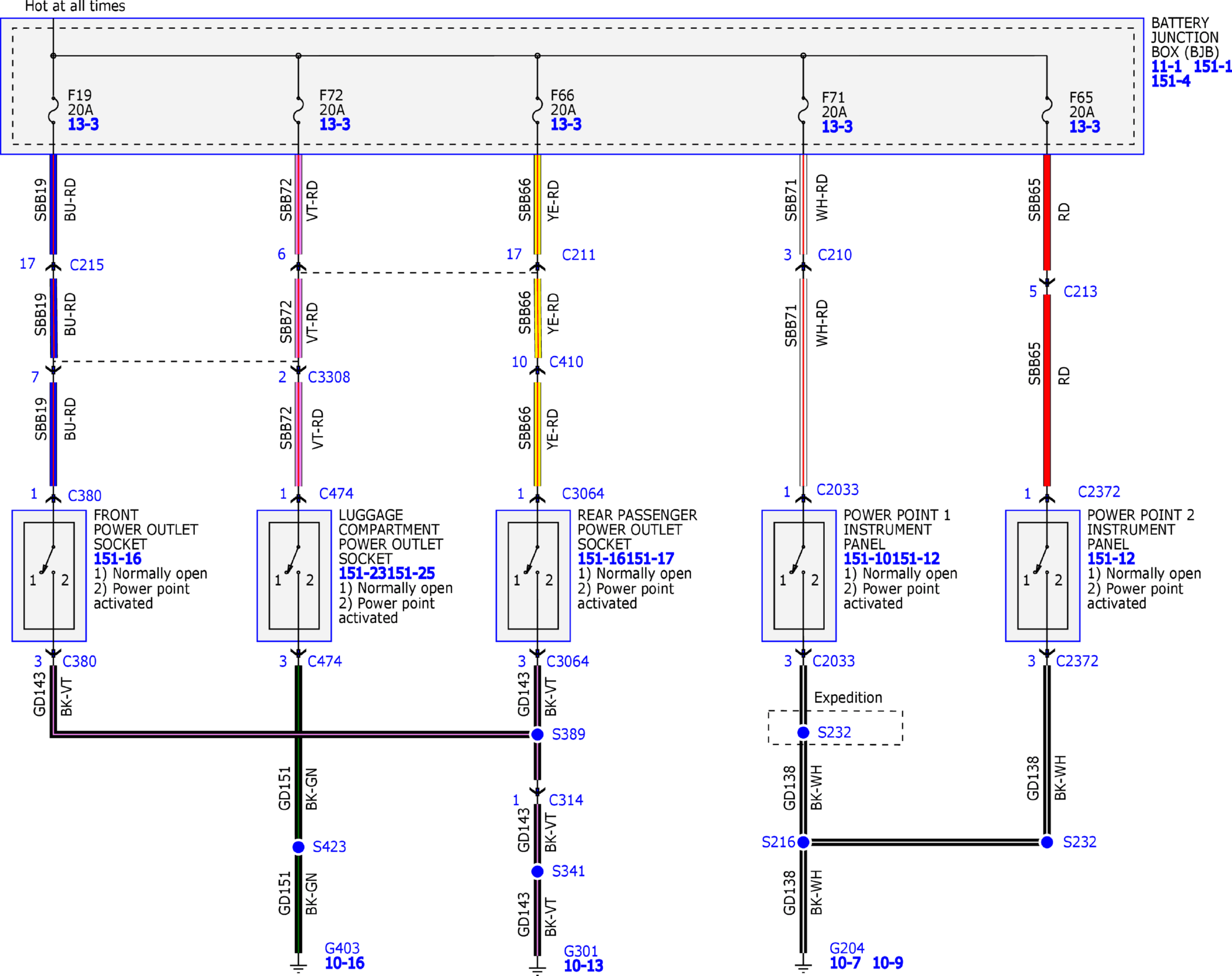

Fig 2: Horn/Cigar Lighter Wiring Diagram (2 of 3)
GFDW60058Courtesy of FORD MOTOR COMPANY

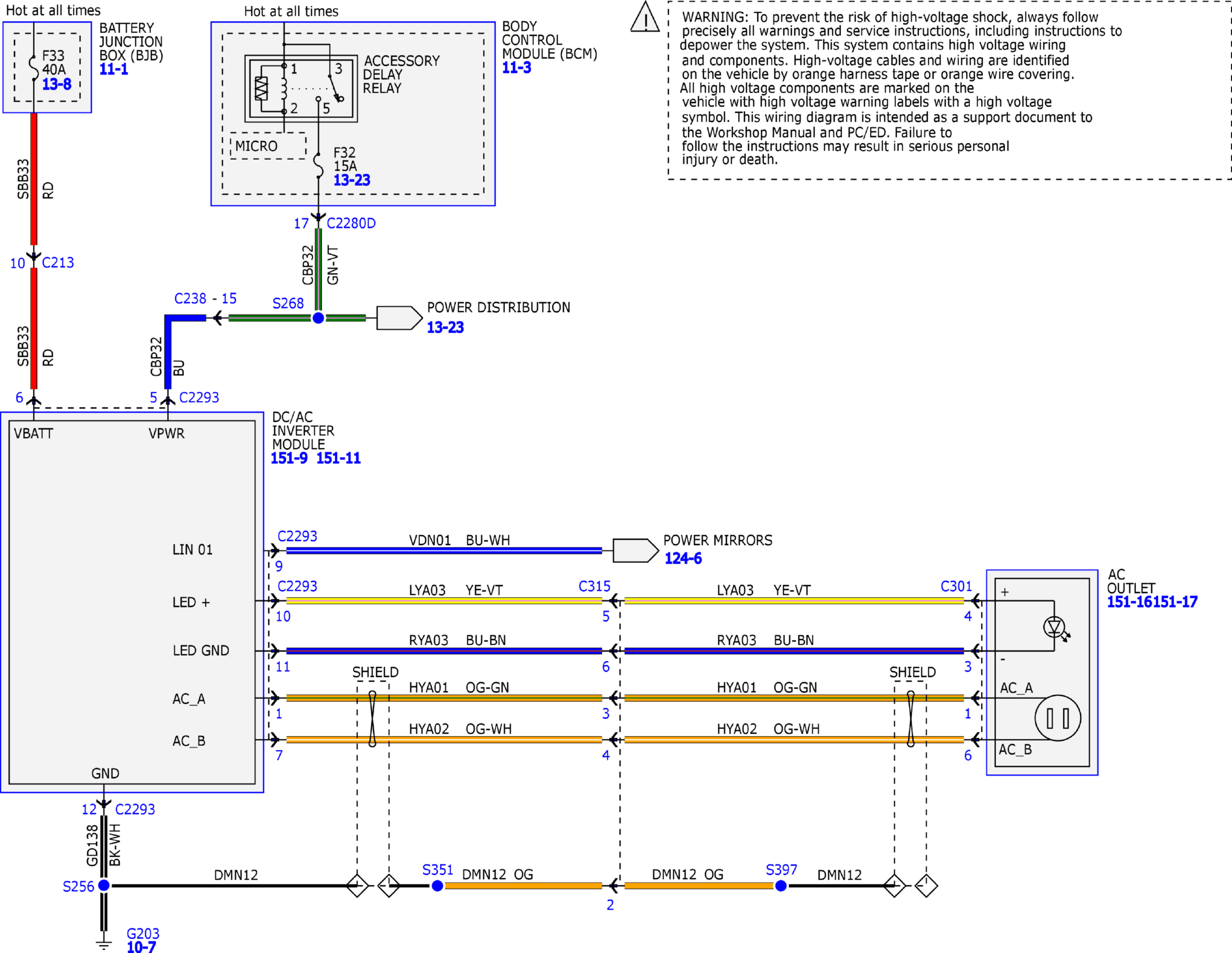

Fig 3: Horn/Cigar Lighter Wiring Diagram (3 of 3)
GFDW60059Courtesy of FORD MOTOR COMPANY
