Fog Lamps
Fog Lamps

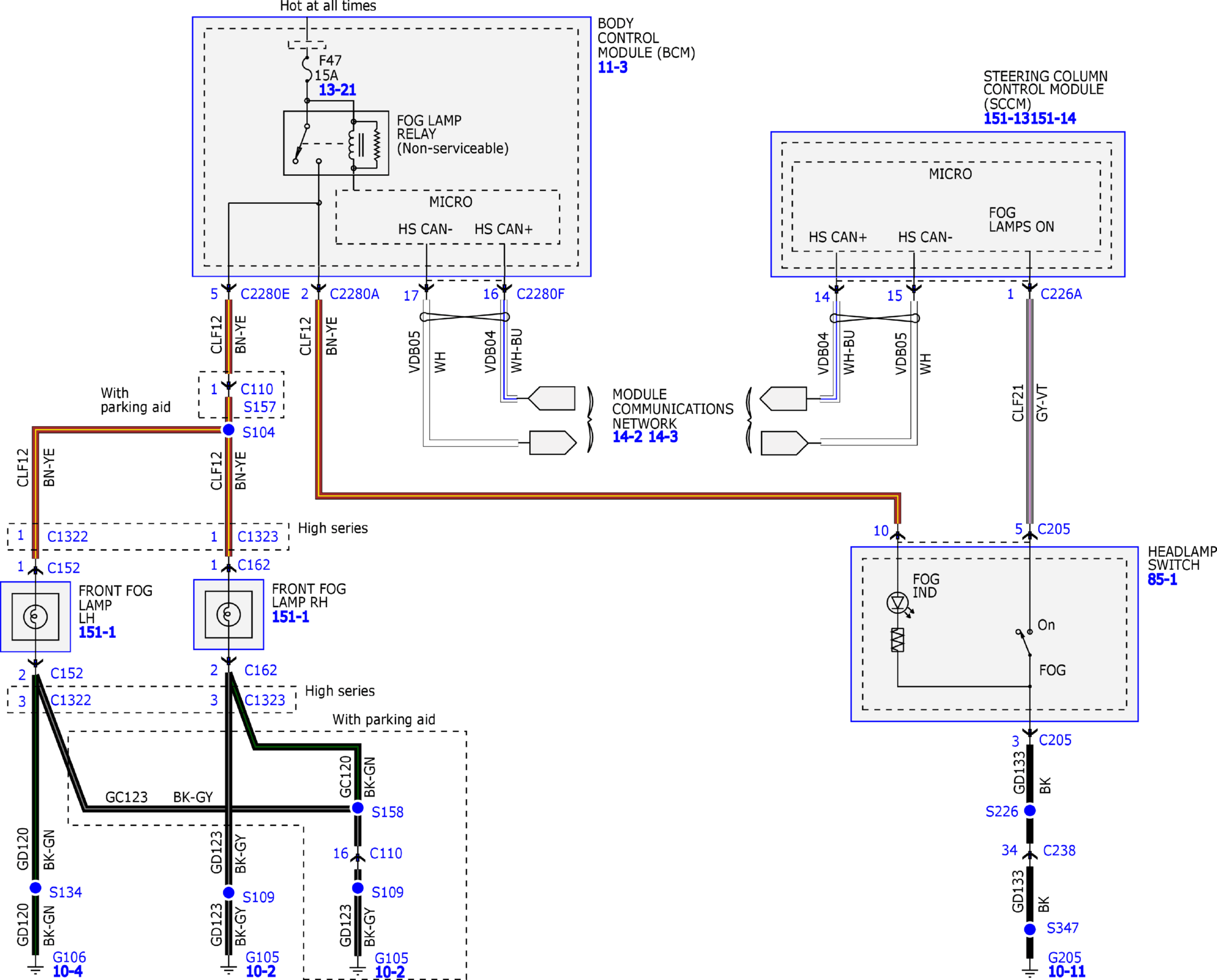

Fig 1: Fog Lamps Wiring Diagram (1 of 2)
Courtesy of FORD MOTOR COMPANY

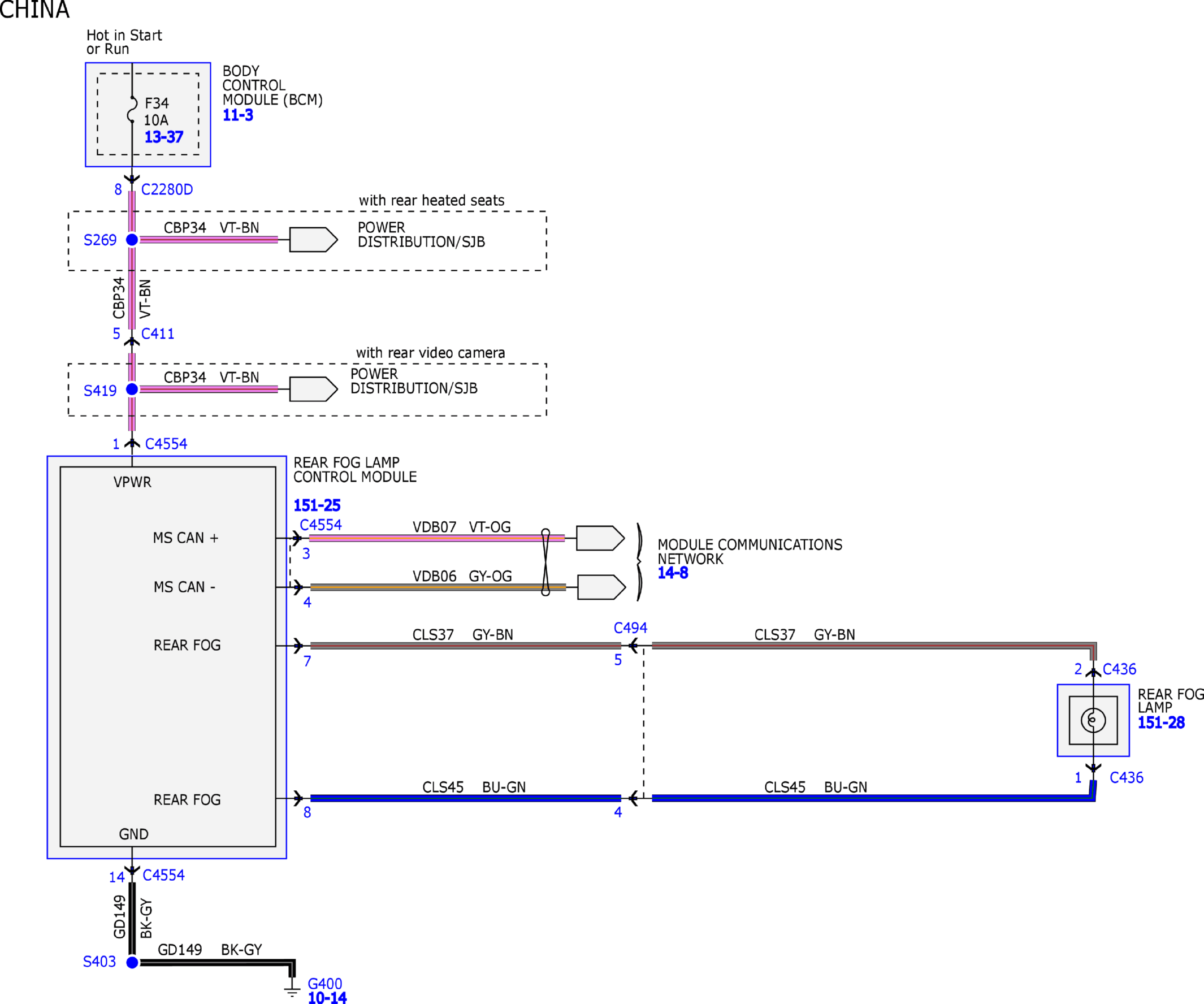

Fig 2: Fog Lamps Wiring Diagram (2 of 2)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
