Cooling Fan
Cooling Fan

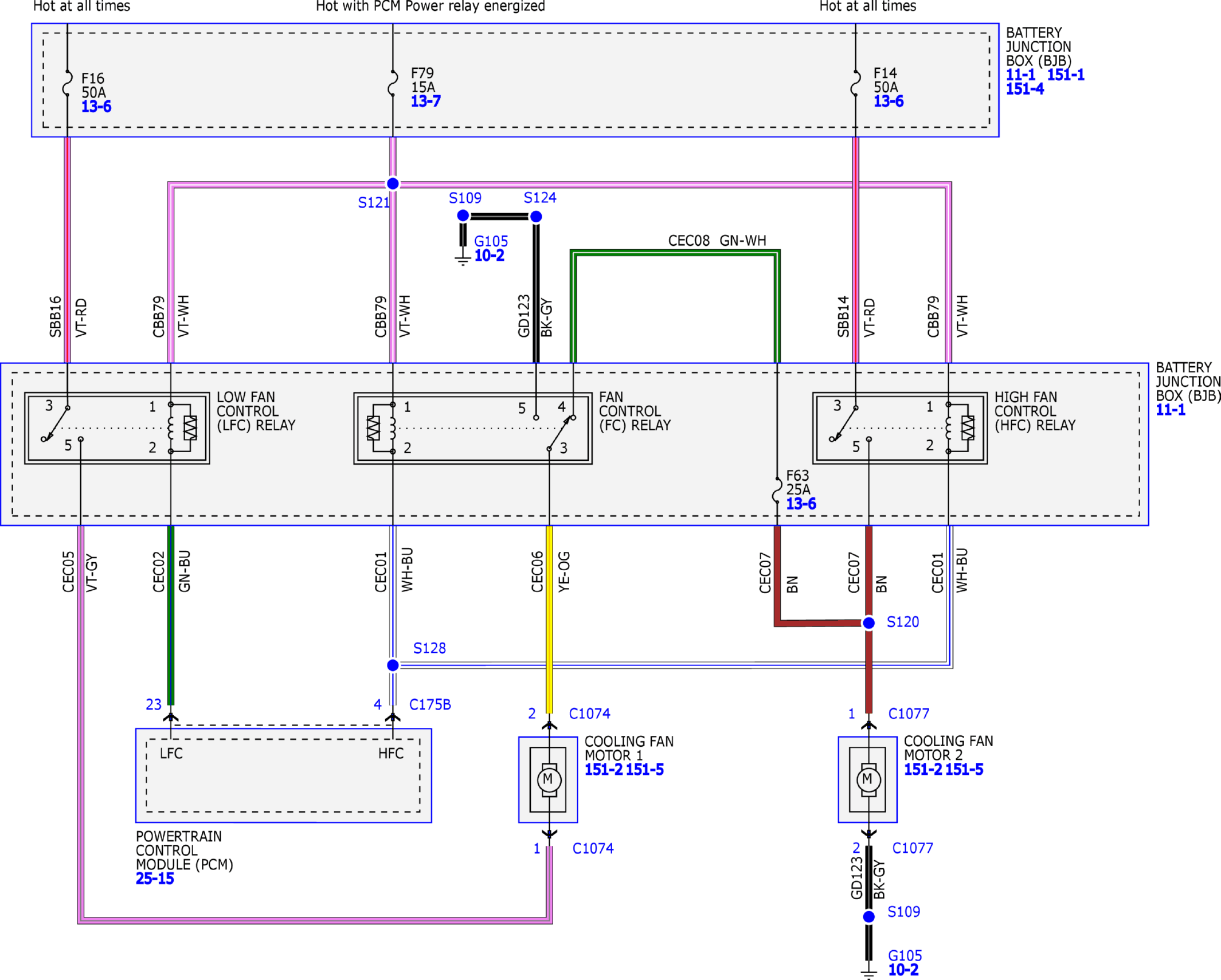

Fig 1: Cooling Fan Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
