Cluster And Panel Illumination

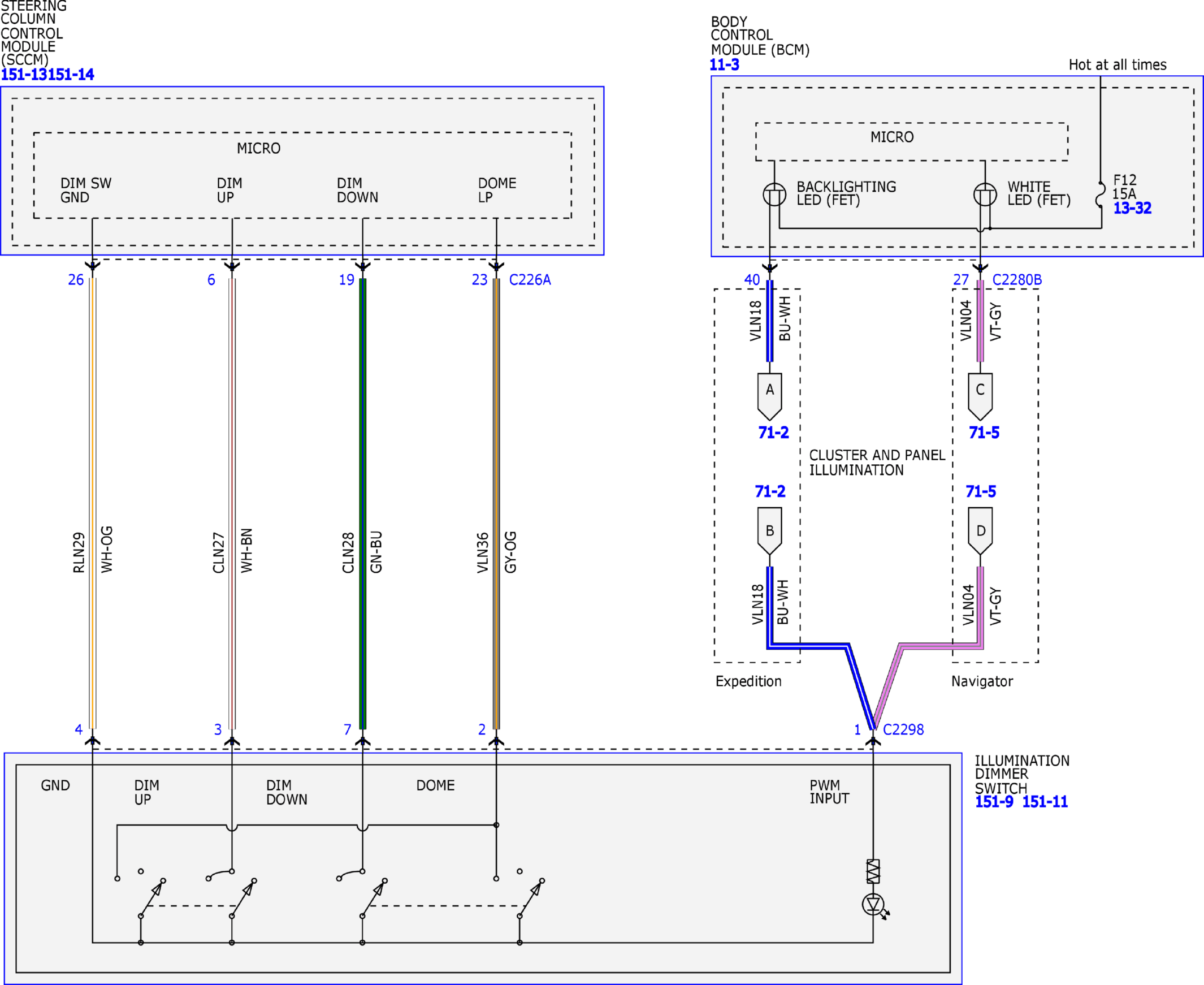

Fig 1: Cluster and Panel Illumination Wiring Diagram (1 of 8)
GFDW60015Courtesy of FORD MOTOR COMPANY

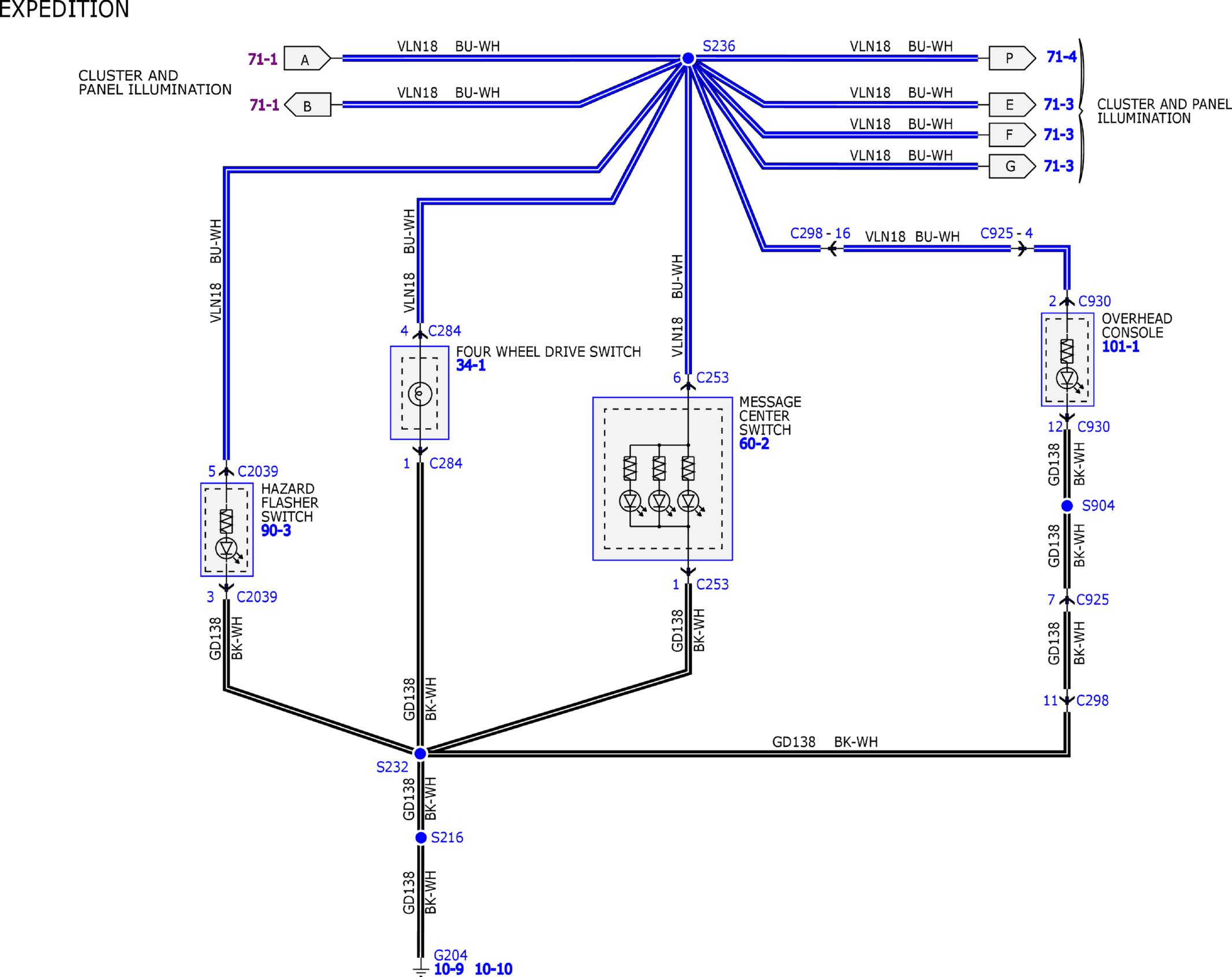

Fig 2: Cluster and Panel Illumination Wiring Diagram (2 of 8)
GFDW60016Courtesy of FORD MOTOR COMPANY

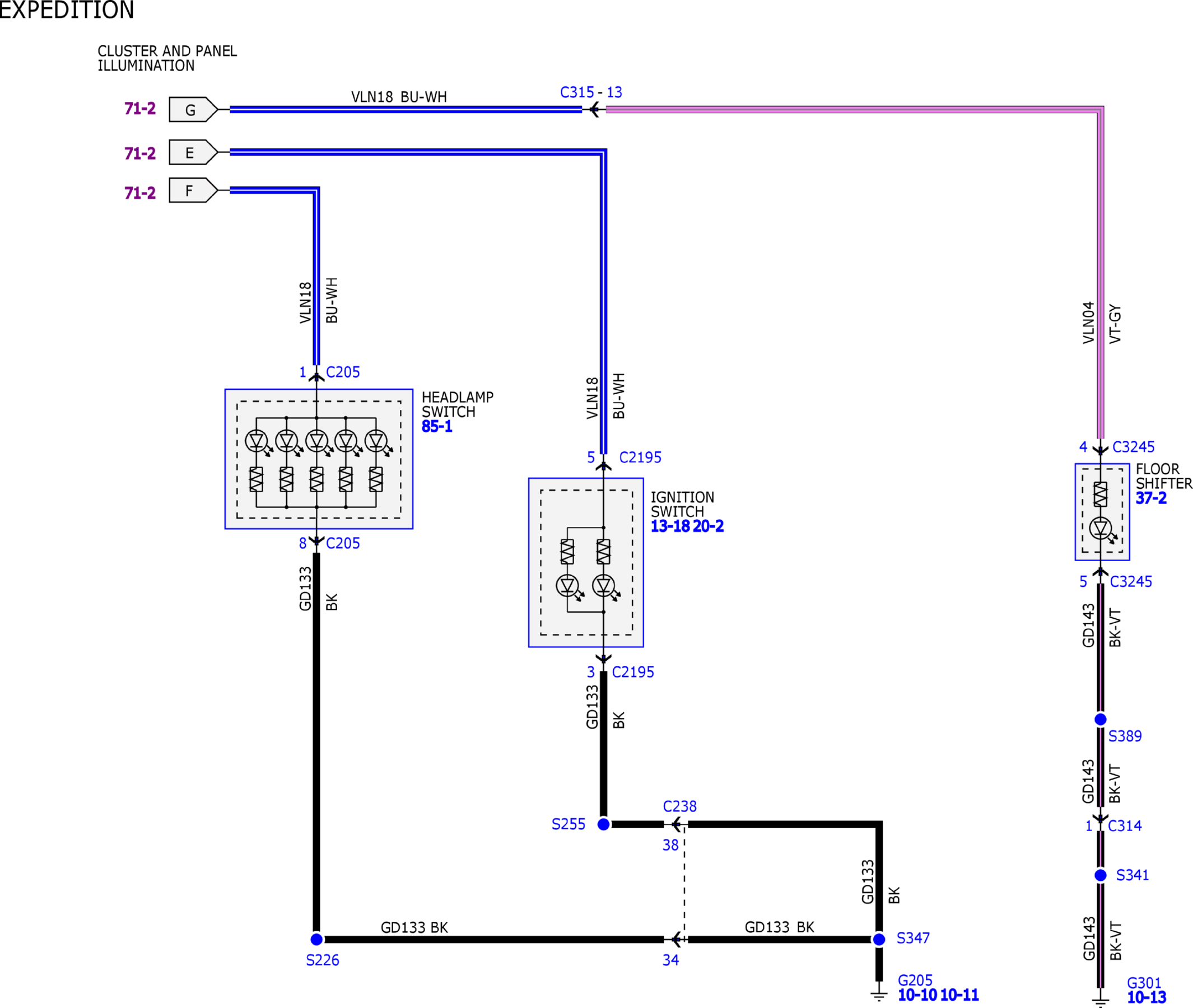

Fig 3: Cluster and Panel Illumination Wiring Diagram (3 of 8)
GFDW60017Courtesy of FORD MOTOR COMPANY

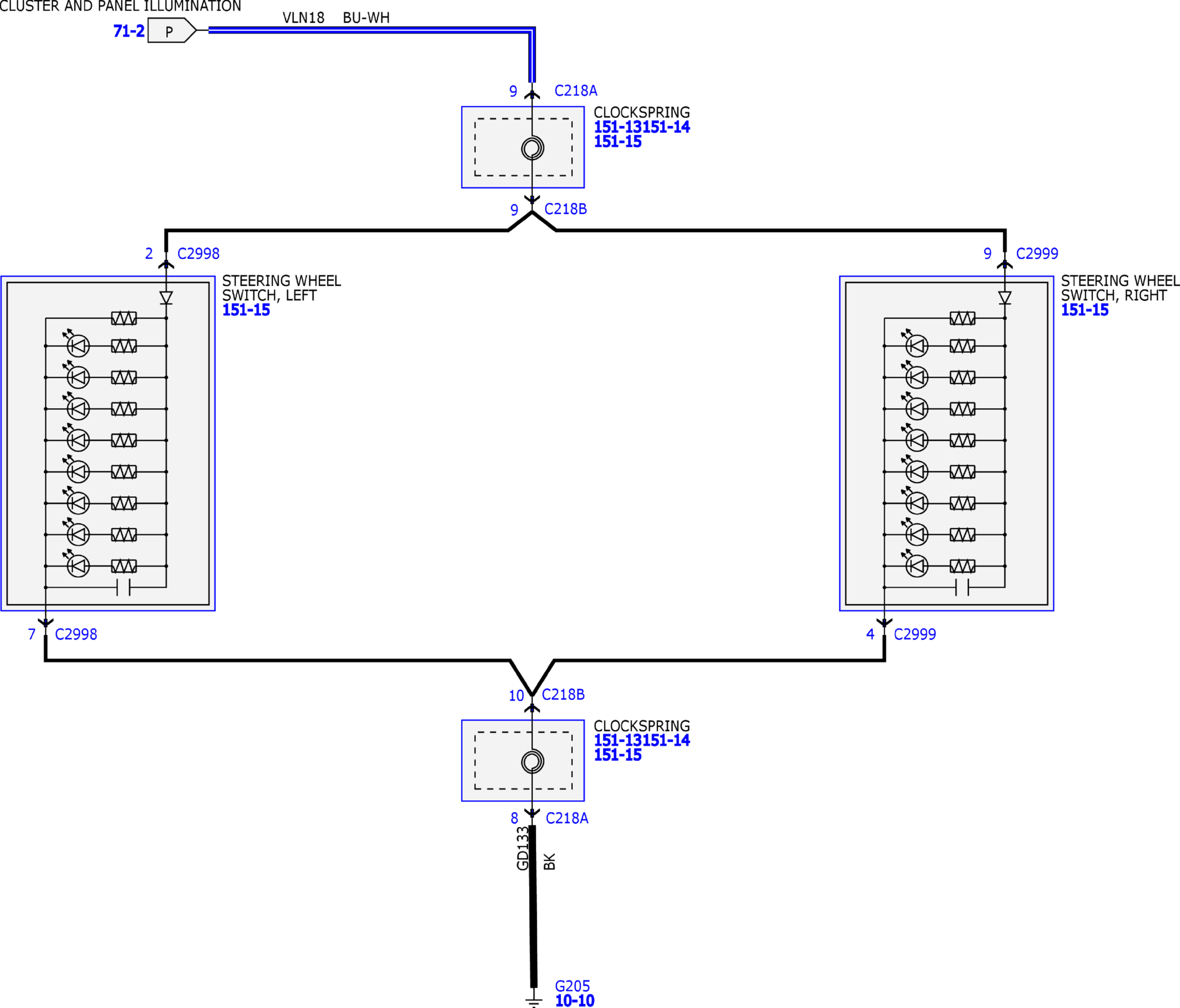

Fig 4: Cluster and Panel Illumination Wiring Diagram (4 of 8)
GFDW60018Courtesy of FORD MOTOR COMPANY

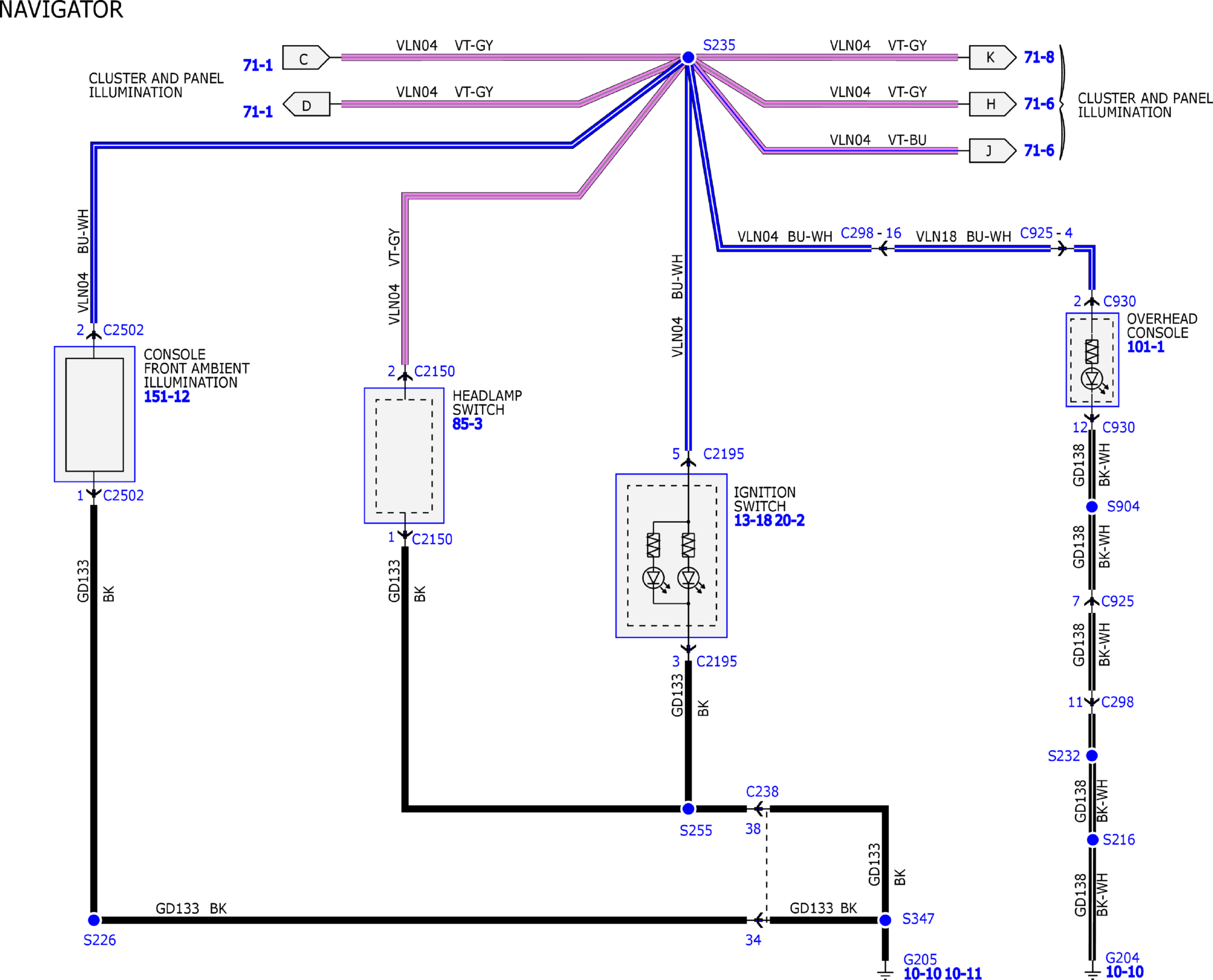

Fig 5: Cluster and Panel Illumination Wiring Diagram (5 of 8)
GFDW60019Courtesy of FORD MOTOR COMPANY

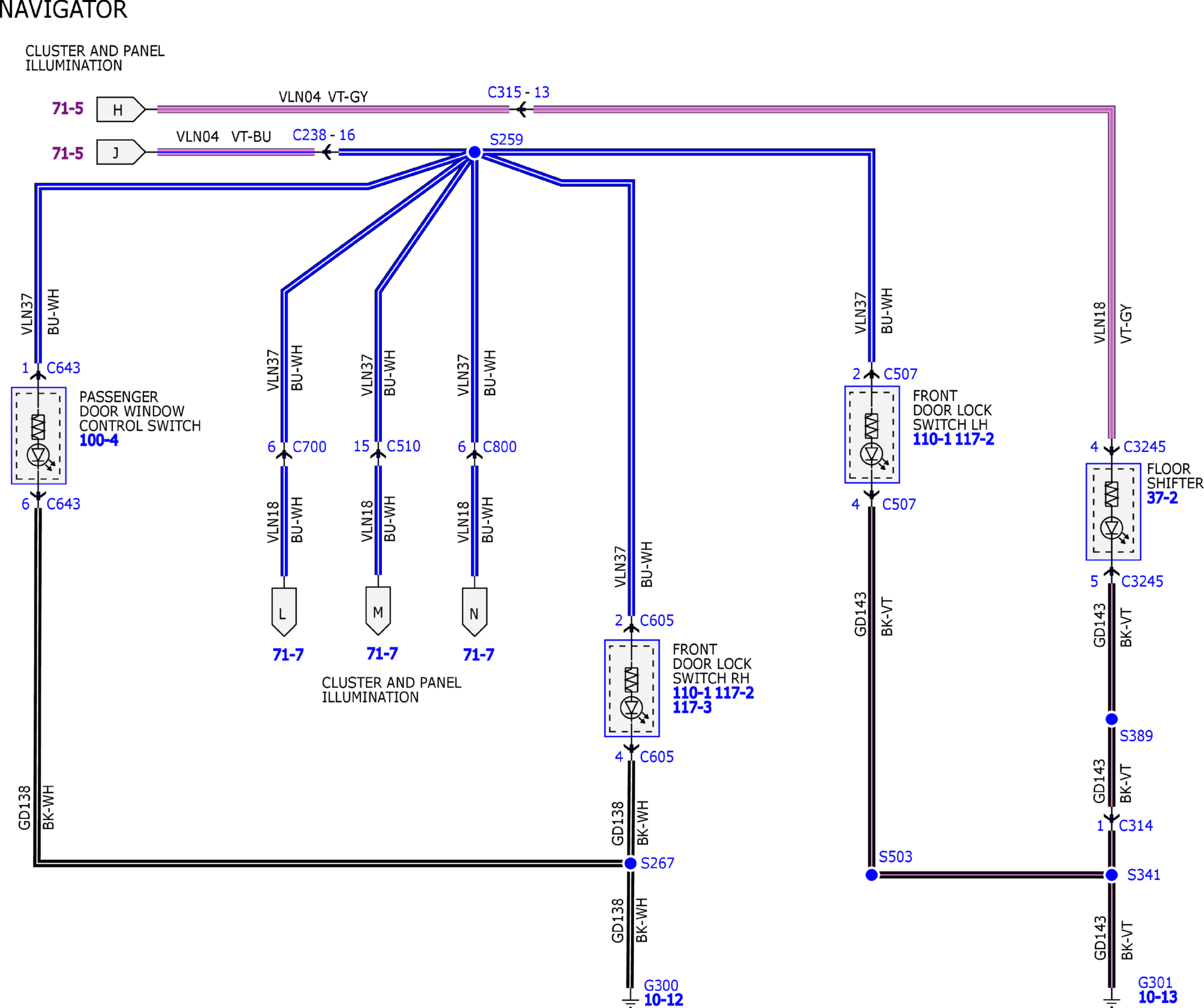

Fig 6: Cluster and Panel Illumination Wiring Diagram (6 of 8)
GFDW60020Courtesy of FORD MOTOR COMPANY
Fig 7: Cluster and Panel Illumination Wiring Diagram (7 of 8)
GFDW60021Courtesy of FORD MOTOR COMPANY

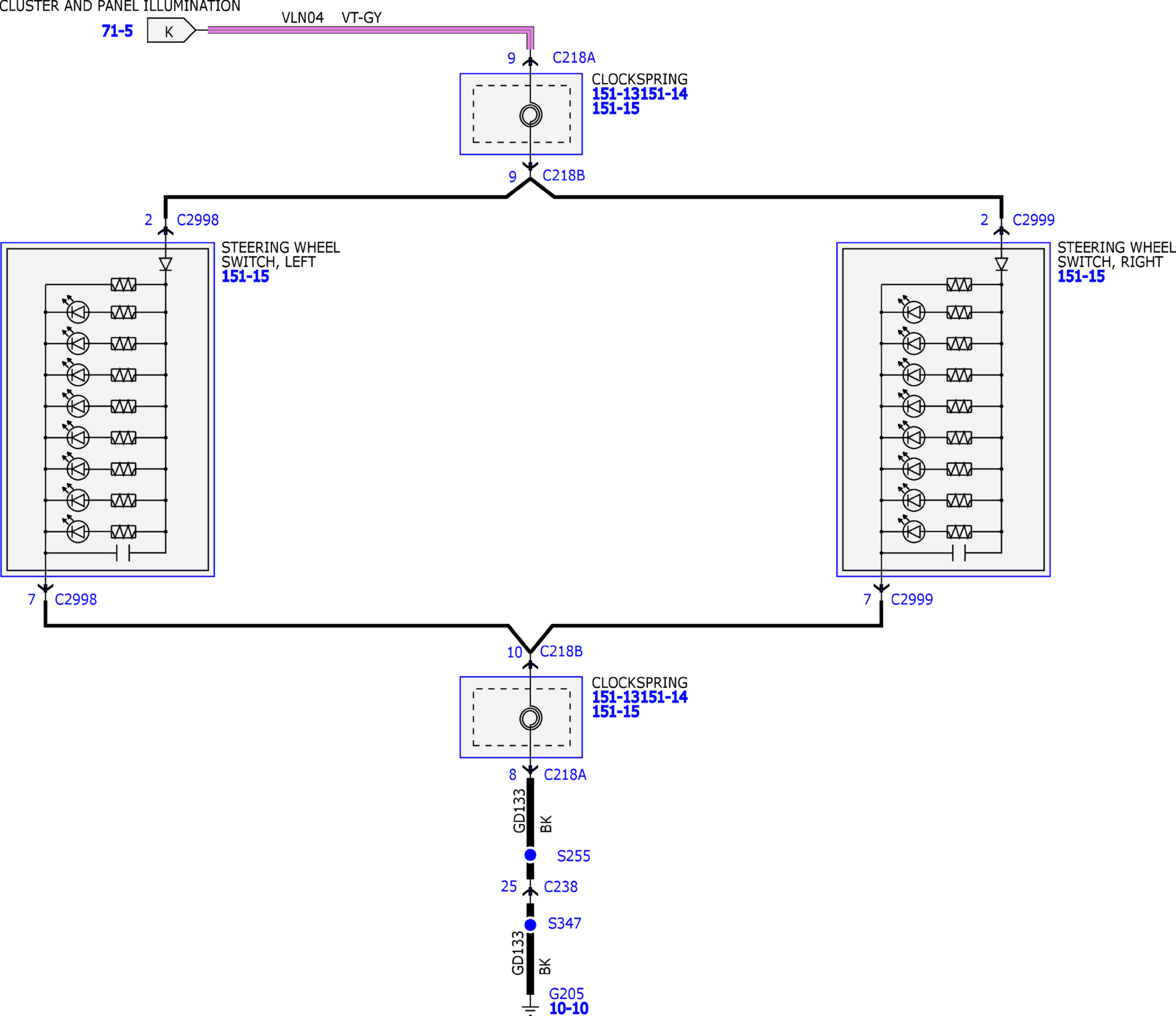

Fig 8: Cluster and Panel Illumination Wiring Diagram (8 of 8)
GFDW60022Courtesy of FORD MOTOR COMPANY
