Connector End View (C926) - CARGO LAMP
Connector:C926
Description
CARGO LAMP
Color
Harness
14335
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VLN33 (GY-VT) | 18 | CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE) | |
| 2 | GD138 (BK-WH) | 20 | GROUND - COWL SIDE/PILLAR A RIGHT (OBSOLETE) | |
| 3 | CLN09 (YE-GN) | 18 | RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) |
| Available Pigtail Kits | |

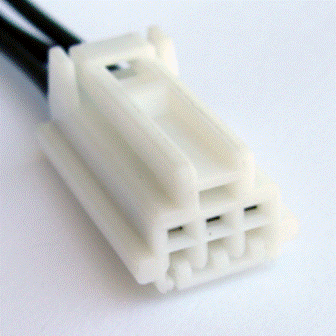

| Pigtail Kit Part Number WPT-203 |
Service Part Number: 3U2Z-14S411-AZA Gauge: 18 Pin material: Tin Cavities: 3 Vehicle Uses Lamp - Dome Lamp - Dome/Map Lamp - Storage Compartment - Cargo Lamp - Storage Compartment - Trunk Switch - Cargo Lamp Switch - Door Ajar / Interior Lamp |
