Connector End View (C1581) - FUEL INJECTION PUMP

Connector:C1581

Description

FUEL INJECTION PUMP

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE226 (YE-VT)	14	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +
2	RE226 (GN-VT)	14	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) -

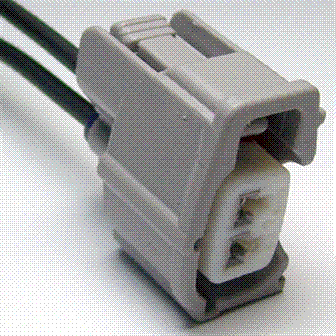

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1277

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-UA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Solenoid - Fuel Volume Regulator Control
