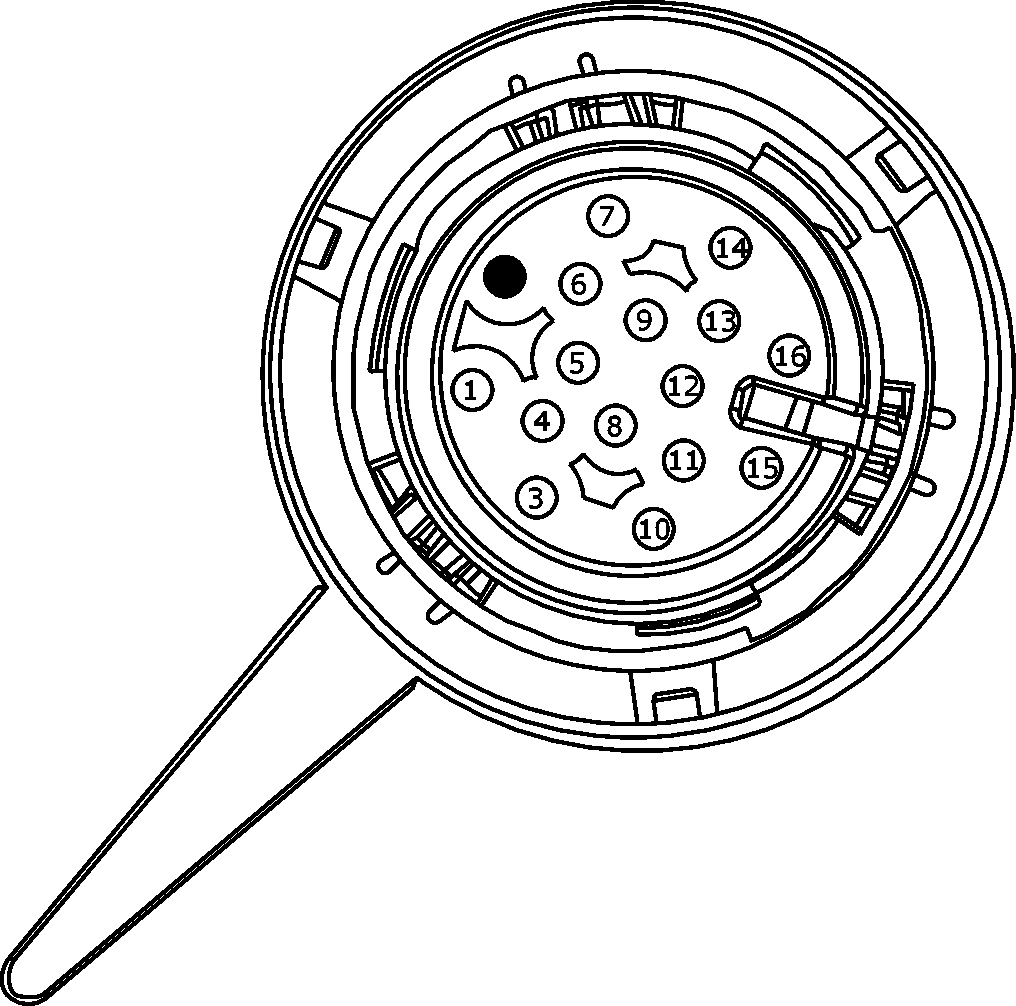

Connector End View (C1575) - AUTOMATIC TRANSMISSION
Connector:C1575
Description
AUTOMATIC TRANSMISSION
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RET33 (WH-VT) | 20 | SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) - | |
| 2 | * | * | Not Used | |
| 3 | CET10 (BU-GY) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (PC6) [EPC] [VFS] | |
| 4 | VET32 (VT) | 20 | SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR -P) | |
| 5 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 | |
| 6 | VET27 (BN-YE) | 20 | SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) | |
| 7 | CET25 (BU-GN) | 18 | CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) | |
| 8 | CET16 (WH-BU) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL HIGH-SIDE 1 (SS-H1) [HMSS] | |
| 9 | CET05 (BU-GN) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS] | |
| 10 | CET08 (BN-WH) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS] | |
| 11 | RET24 (BN-BU) | 20 | CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) | |
| 12 | LE111 (VT-GN) | 20 | CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) | |
| 13 | CET07 (GY-OG) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS] | |
| 14 | CET06 (GN-BN) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS] | |
| 15 | RET04 (YE-OG) | 20 | CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS) | |
| 16 | CET09 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (PC5) [EPC] [VFS] |

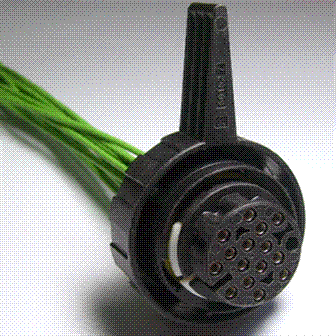

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1390 |
Service Part Number: EU2Z-14S411-HA Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses Transmission - Bulkhead |
