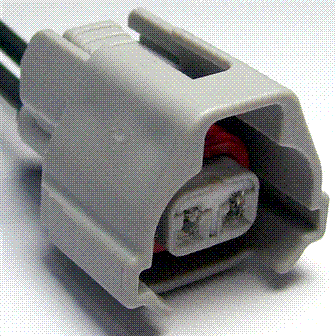

Connector End View (C1184) - FUEL INJECTOR 4
Connector:C1184
Description
FUEL INJECTOR 4
Color
GY
Harness
14B485
Base Part #
9F593
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE208 (YE-OG) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ4) | |
| 2 | RE208 (BU) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ4RTN) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1282 |
Service Part Number: CU2Z-14S411-XA Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Fuel Injector |
