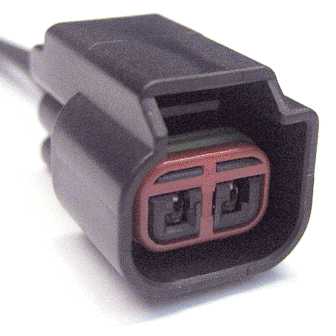

Connector End View (C1029) - EVAPORATIVE EMISSION CANISTER PURGE VALVE

Connector:C1029

Description

EVAPORATIVE EMISSION CANISTER PURGE VALVE

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE113 (WH-BN)	18	CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP)
2	CBK02 (GN)	20	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-905

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-EA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Relay - Daytime Running Lamp (DRL)

Switch - Heater / A/C Blower (Front)
