Connector End View (C4186) - POWER LIFTGATE CHIME

Connector:C4186

Description

POWER LIFTGATE CHIME

Color

Harness

13A409

Base Part #

part# N/A

Service Pigtail

See Below

GFDW59864

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPR56 (VT-BN)	20	CTRL MOD. - POWER LIFTGATE # CHIME +
2	RPR56 (GY-VT)	20	CTRL MOD. - POWER LIFTGATE # CHIME -

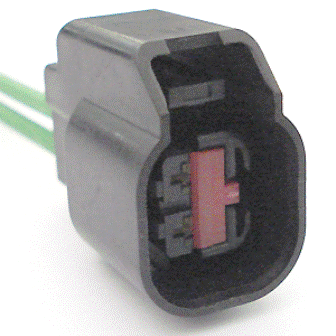

Available Pigtail Kits

Pigtail Kit Part Number

WPT-966

GFDW59814

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-CNB

Gauge:

14

Pin material:

Silver

Cavities:

2

Vehicle Uses

Actuator - Door Lock - Decklid/Liftgate

Actuator - Liftgate Glass

Lamp - CHMSL (Center High Mount Stop Lamp)

Module - Warning Chime/ Beltminder

Sensor - Brake Pedal Position

Speaker - Door (front)

Speaker - Door (rear)

Speaker - Front

Speaker - Rear

Speaker - Subwoofer

Switch - Brake Deactivation

Switch - Stop Lamp
