Connector End View (C431) - INLINE
Inline:C431
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 14A509
FEMALE
Harness 13A409
| Pin | Circuit | Gauge | Qualifier |
| 1 | CPS49 (BN-GN) | 6 | |
| 2 | CPS50 (BU-BN) | 6 |
| Available Pigtail Kits | |

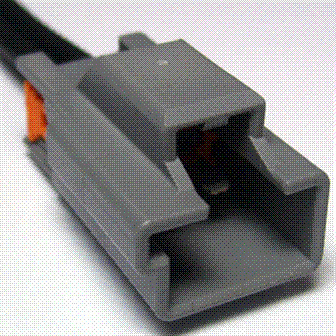

| Pigtail Kit Part Number WPT-1149 |
Service Part Number: 6U2Z-14S411-PB Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses: Element - Heated Windshield Motor - Convertible Top Motor - Power Window - LH - Rear Motor - Power Window - RH - Rear Motor - Seat Lumbar Switch - Heater A/C Blower (Rear) Terminal - Rear Window Defroster Grid |
