Connector End View (C2280F) - BODY CONTROL MODULE (BCM)
Connector:C2280F
Description
BODY CONTROL MODULE (BCM)
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RMC19 (YE-GY) | 20 | SWITCH - LOW LEVEL BRAKE FLUID (CONTINUITY CHECK) | |
| 2 | CPL25 (BU-OG) | 20 | SWITCH - HOOD # AJAR | |
| 3 | * | * | Not Used | |
| 4 | CLS56 (YE-GN) | 20 | LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT | |
| 5 | CE436 (VT-OG) | 20 | CTRL MOD. -WAKE UP PCM | |
| 6 | CE226 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + | |
| 7 | CLS25 (YE-VT) | 20 | CTRL MOD. - TURN LAMP RIGHT FRONT | |
| 8 | CLS21 (BU-GN) | 18 | CTRL MOD. - TURN LAMP LEFT FRONT | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | CDC64 (WH-BU) | 20 | #N/A | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | RDC59 (GY-BR) | 18 | CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR - | |
| 15 | CMC19 (GY-VT) | 20 | SWITCH - LOW LEVEL BRAKE FLUID | |
| 16 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 17 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 18 | CDC55 (BN-VT) | 20 | RELAY - RUN, START | |
| 19 | * | * | Not Used | |
| 20 | SDC57 (BU-OG) | 18 | CTRL MOD. - BATTERY MONITORING SYSTEM MONITOR | |
| 21 | LDC59 (BU-WH) | 18 | CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR + | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used | |
| 24 | * | * | Not Used | |
| 25 | * | * | Not Used | |
| 26 | * | * | Not Used |

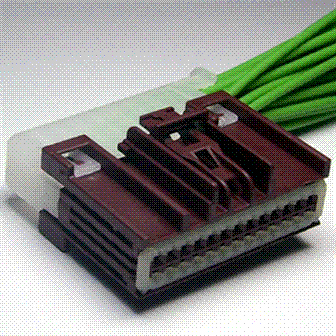

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1291 |
Service Part Number: CU2Z-14S411-ASA Gauge: 20 Pin material: Silver Cavities: 26 Vehicle Uses Control Head - Electronic Automatic Temperature (EATC) Module - Body Control Module - Electronic Automatic Temperature Control (EATC) |
