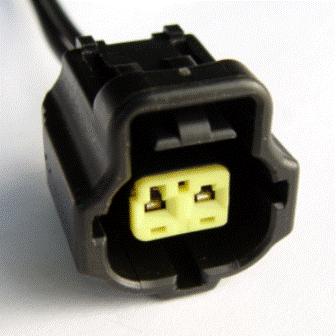

Connector End View (C137) - WINDSHIELD WASHER PUMP
Connector:C137
Description
WINDSHIELD WASHER PUMP
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD120 (BK-GN) | 14 | GROUND - FENDER FRONT LEFT | |
| 2 | CRW14 (BU-WH) | 14 | CTRL MOD. - FRONT WASHER |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-357 |
Service Part Number: 3U2Z-14S411-HVA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses Fuel Pump/Sending Unit Motor - Idle Air Control Motor - Rear Window Washer Fluid Pump Motor - Windshield Washer Fluid Pump Sensor - Coolant Temperature Sensor - Washer Fluid level |
