Connector End View (C135) - ANTI-LOCK BRAKE SYSTEM (ABS) MODULE

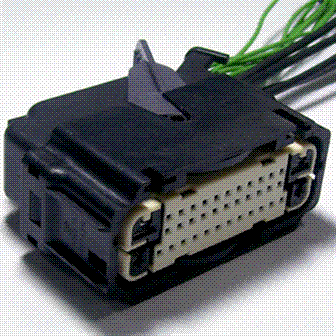

Connector:C135

Description

ANTI-LOCK BRAKE SYSTEM (ABS) MODULE

Color

Harness

12A581

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB69 (GY-RD)	6	FUSE - 69 OR CIRCUIT BREAKER
2	CCA22 (GY-YE)	4	CTRL MOD. - SOLENOID IVD ACTIVE BOOSTER +
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	RCA19 (VT)	4	CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	VCA22 (GN-BN)	4	CTRL MOD. - SOLENOID IVD ACTIVE BOOSTER -
11	*	*	Not Used
12	*	*	Not Used
13	GD121 (BK-YE)	6	GROUND - FENDER FRONT LEFT # 2ND STUD
14	VDB05 (WH)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	VCA05 (GY-VT)	4	SENSOR - WHEEL SPEED RIGHT FRONT
19	VCA06 (WH-OG)	4	SENSOR - WHEEL SPEED RIGHT REAR
20	RCA18 (BN-GN)	4	CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR
21	VCA03 (VT-WH)	4	SENSOR - WHEEL SPEED LEFT FRONT
22	*	*	Not Used
23	*	*	Not Used
24	VCA24 (GN-OG)	20	CTRL MOD. - SENSOR YAW ABS / IVD / TC CAN BUS LOW
25	SBB68 (GN-RD)	6	FUSE - 68 OR CIRCUIT BREAKER
26	VDB04 (WH-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
27	*	*	Not Used
28	GD120 (BK-GN)	4	GROUND - FENDER FRONT LEFT
29	*	*	Not Used
30	*	*	Not Used
31	RCA20 (BN)	4	CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR
32	*	*	Not Used
33	VCA04 (BU-OG)	4	SENSOR - WHEEL SPEED LEFT REAR
34	RCA17 (YE)	4	CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT
35	CBB52 (GN-WH)	18	FUSE - 52 OR CIRCUIT BREAKER
36	*	*	Not Used
37	VCA23 (BU-WH)	18	CTRL MOD. - SENSOR YAW ABS / IVD / TC CAN BUS HIGH
38	GD121 (BK-YE)	6	GROUND - FENDER FRONT LEFT # 2ND STUD

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1234

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BAA

Gauge:

12 20

Pin material:

Tin & Silver

Cavities:

Vehicle Uses

Module - Anti-Lock Brake System

Some Modifications May Be Required
