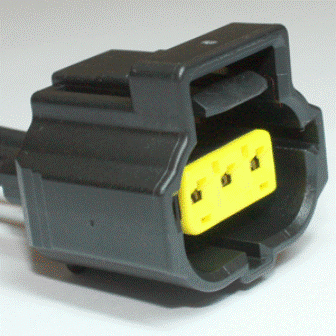

Connector End View (C102B) - GENERATOR
Connector:C102B
Description
GENERATOR
Color
Harness
14B060
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CDC15 (VT) | 18 | GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI) | |
| 2 | CDC10 (BU-OG) | 18 | CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENRC) | |
| 3 | SBB26 (YE-BN) | 18 | FUSE - 26 OR CIRCUIT BREAKER | |
| 3 | SBB26 (YE-RD) | 18 | FUSE - 26 OR CIRCUIT BREAKER |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-118 |
Service Part Number: 1U2Z-14S411-TA Gauge: 14 Pin material: Tin Cavities: 3 Vehicle Uses Alternator Sensor - Brake Fluid Level Sensor - Throttle Position |
