Audio Rear Control Unit (RCU) (Navigator)

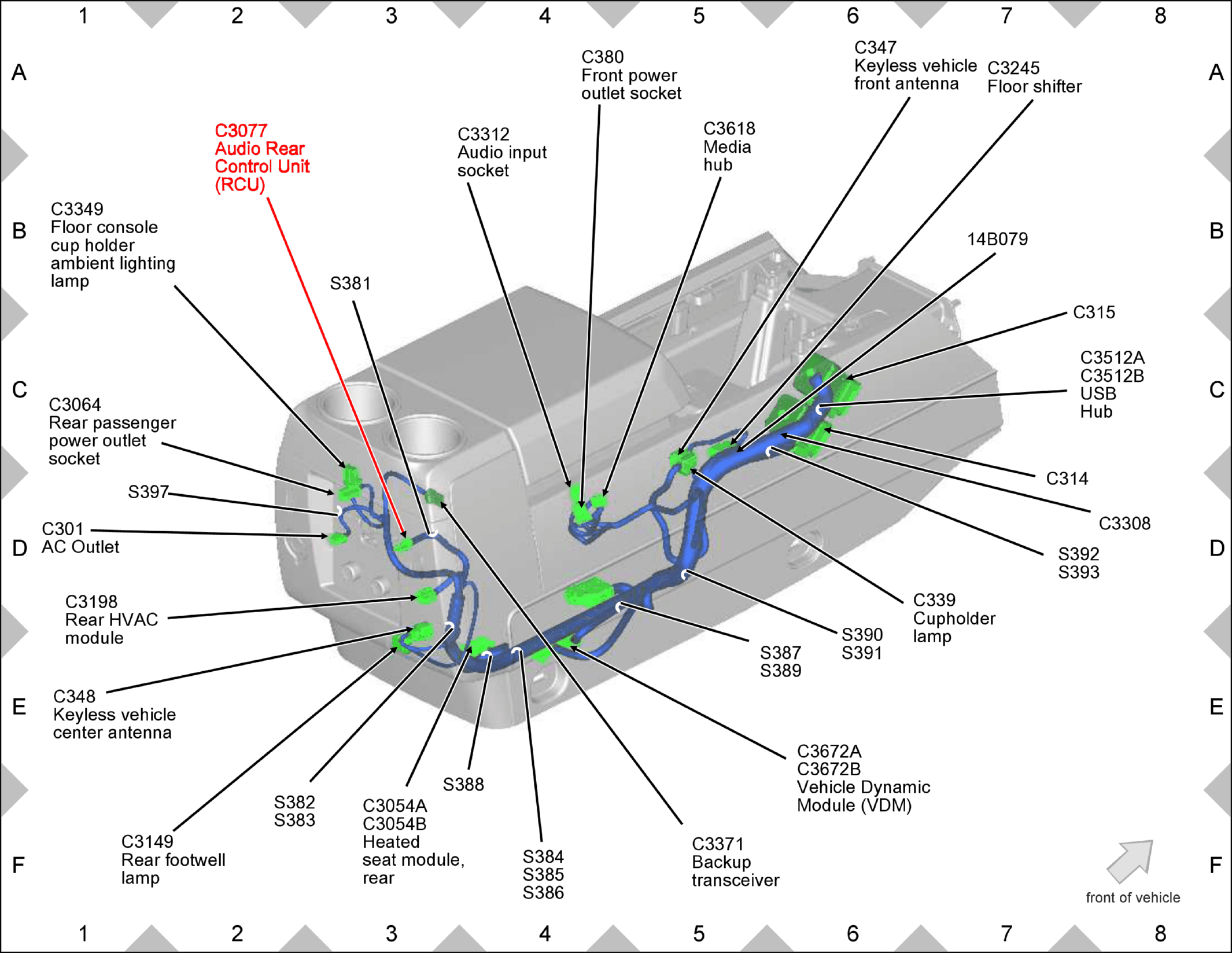

Fig 1: Audio Rear Control Unit (RCU) (Navigator)

GFDW58939

Courtesy of FORD MOTOR COMPANY
