Instrument Panel Cluster (IPC): Overview

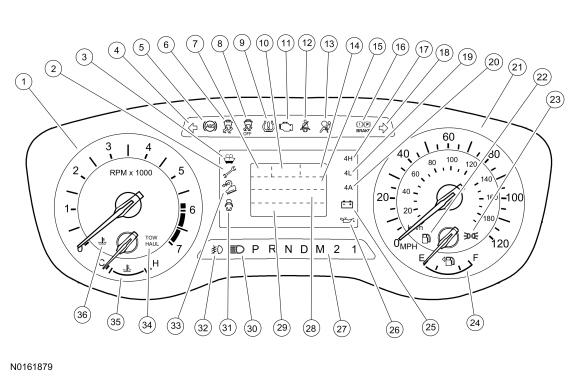

Base IPC
| Item | Description |
|---|---|
| 1 | Tachometer |
| 2 | Powertrain malfunction (wrench) indicator |
| 3 | Low washer fluid indicator |
| 4 | LH turn indicator |
| 5 | ABS warning indicator |
| 6 | Stability-traction control indicator (sliding car icon) |
| 7 | SelectShift ® indicator |
| 8 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 9 | TPMS indicator |
| 10 | Outside air temperature display |
| 11 | MIL |
| 12 | Safety belt warning indicator |
| 13 | Airbag warning indicator |
| 14 | Compass |
| 15 | Cruise control Reconfigurable Telltale (RTT) |
| 16 | Brake warning indicator |
| 17 | 4x4 high indicator |
| 18 | RH turn indicator |
| 19 | 4x4 low indicator |
| 20 | 4x4 auto indicator |
| 21 | Speedometer |
| 22 | Low fuel indicator |
| 23 | Lights on indicator |
| 24 | Fuel gauge |
| 25 | Charging system warning indicator |
| 26 | Low oil pressure warning indicator |
| 27 | PRNDL |
| 28 | Trip odometer display and digital speed display |
| 29 | Odometer |
| 30 | High beam indicator |
| 31 | Door ajar warning indicator |
| 32 | Front fog lamp indicator |
| 33 | Hill descent indicator |
| 34 | Tow haul indicator |
| 35 | Temperature gauge |
| 36 | Engine over-temperature warning indicator |

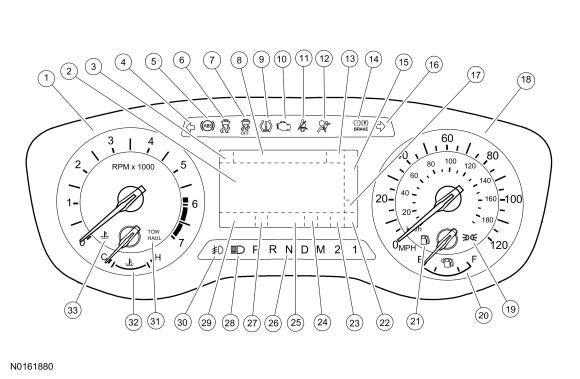

Optional Mid-Level IPC
| Item | Description |
|---|---|
| 1 | Tachometer |
| 2 | Main menu display area |
| 3 | Menu navigation icon |
| 4 | LH turn indicator |
| 5 | ABS warning indicator |
| 6 | Stability-traction control indicator (sliding car icon) |
| 7 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 8 | Submenu display area |
| 9 | TPMS indicator |
| 10 | MIL |
| 11 | Safety belt warning indicator |
| 12 | Airbag warning indicator |
| 13 | Compass |
| 14 | Brake warning indicator |
| 15 | Manual shift mode and progressive range select display |
| 16 | RH turn indicator |
| 17 | Cruise control set speed display |
| 18 | Speedometer |
| 19 | Lights on indicator |
| 20 | Fuel gauge |
| 21 | Low fuel indicator |
| 22 | Cruise control Reconfigurable Telltale (RTT) |
| 23 | 4WD (4x4 [low, high or auto] and 2WD) Reconfigurable Telltale (RTT) |
| 24 | Hill descent Reconfigurable Telltale (RTT) |
| 25 | Rotating Reconfigurable Telltale (RTT) display area Charging system Door and liftgate ajar Low fuel Low oil pressure Low washer fluid level Powertrain malfunction (wrench) Tow haul |
| 26 | PRNDL |
| 27 | SelectShift ® display |
| 28 | High beam indicator |
| 29 | Odometer |
| 30 | Front fog lamp indicator |
| 31 | Tow haul indicator |
| 32 | Temperature gauge |
| 33 | Engine over-temperature warning indicator |

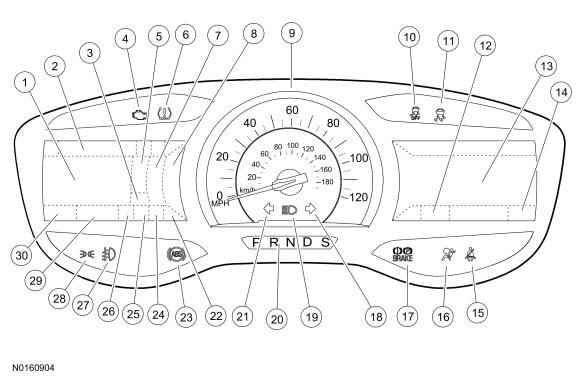

Optional High-Level IPC
| Item | Description |
|---|---|
| 1 | Main display area with tachometer and low gear display |
| 2 | Submenu display area |
| 3 | Cruise control set speed display |
| 4 | MIL |
| 5 | Progressive range select or SelectShift ® display |
| 6 | TPMS warning indicator |
| 7 | Gauge display area (tachometer and temperature based on display settings) |
| 8 | Fuel gauge |
| 9 | Speedometer |
| 10 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 11 | Stability-traction control indicator (sliding car icon) |
| 12 | Compass display |
| 13 | RH multimedia display area |
| 14 | Clock display |
| 15 | Safety belt warning indicator |
| 16 | Airbag warning indicator |
| 17 | Brake warning indicator |
| 18 | RH turn indicator |
| 19 | High beam indicator |
| 20 | PRNDL display |
| 21 | LH turn indicator |
| 22 | SelectShift ® and low gear display |
| 23 | ABS warning indicator |
| 24 | Hill descent Reconfigurable Telltale (RTT) |
| 25 | 4WD (4x4 [low, high or auto] and 2WD) Reconfigurable Telltale (RTT) |
| 26 | Cruise control Reconfigurable Telltale (RTT) (fixed indicator display) |
| 27 | Fog lamp indicator |
| 28 | Lights on indicator |
| 29 | Rotating Reconfigurable Telltale (RTT) display area Charging system Door and liftgate ajar Engine over-temperature Low fuel Low oil pressure Low washer fluid level Powertrain malfunction (wrench) Tow haul |
| 30 | Odometer display |
The base IPC provides a single 2.3" LCD display screen. The optional mid-level IPC provides a single 4.2" LCD display screen. The optional high-level IPC provides dual RH and LH LCD screens. The single display screen clusters and the LH display screen (high-level IPC) contain the conventional message center information. The RH display screen (high-level IPC) displays multimedia information (audio, phone and navigation) as well as items such as vehicle direction and time. For information on the RH display screen, Refer to the appropriate Information and Entertainment Systems article for the procedure.
Informational Indicators/Warning Indicators
Informational indicators provide information to the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.
Reconfigurable Telltale (RTT) Indicators
Reconfigurable Telltale (RTT) indicators illuminate in the message center and replace the typical informational or warning indicator using the same iconic representation. When multiple warnings exist, the Reconfigurable Telltale (RTT) indicators cycle through each display until the condition has been corrected unless the Reconfigurable Telltale (RTT) indicator is in a fixed position.
Network Messaged Inputs
Module messaging has increased over time and is now the standard for sending and receiving information required to operate the IPC. The majority of the inputs required to operate the IPC are received over the HS-CAN.
Hardwired Inputs
The IPC requires hardwired inputs from components that are not hardwired to other modules and, therefore, are not on the HS-CAN but are required for specific IPC functions.
The hardwired inputs are provided by the following components:
- Fuel pump assembly
- Hill descent switch
- Park detect switch
- Traction control disable switch
- Washer fluid level switch
