Rear Drive Pinion Flange and Drive Pinion Seal: Notes

Special Tool(s)

Courtesy of FORD MOTOR COMPANY	2 Jaw Puller 205-D072 (D97L-4221-A) or equivalent
Courtesy of FORD MOTOR COMPANY	Holding Fixture, Drive Pinion Flange 205-126 (T78P-4851-A)
Courtesy of FORD MOTOR COMPANY	Installer, Drive Pinion Flange 205-233 (T85T-4851-AH)
Courtesy of FORD MOTOR COMPANY	Installer, Drive Pinion Oil Seal 205-208 (T83T-4676-A)

Material

Item	Specification
Motorcraft ® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL	WSS-M2C942-A
Motorcraft ® Premium Long-Life Grease XG-1-E1	ESA-M1C75-B

Courtesy of FORD MOTOR COMPANY

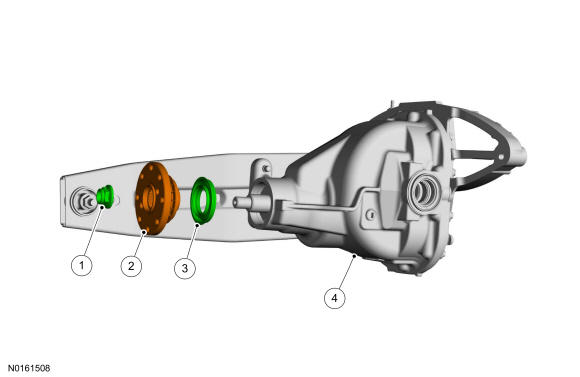

Item	Part Number	Description
1	4320	Drive pinion nut
2	4851	Drive pinion flange
3	4676	Drive pinion oil seal
4	4010	Axle housing
