Parking Brake Cable - Front: Notes

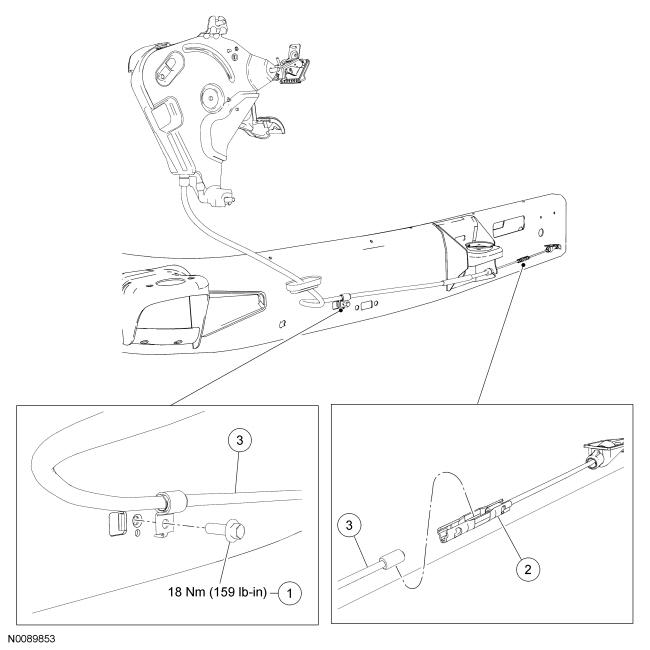

Fig 1: Front Parking Brake Cable With Torque Specifications
GFD134873Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 W506423 Front park brake cable P-clip-to-frame bolt
2 - Park brake cable union
3 2853 Front park brake cable
