Rear Brake Flexible Hose: Notes

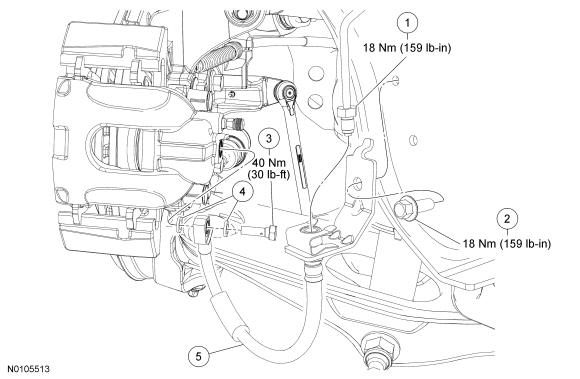

Fig 1: Brake Flexible Hose With Torque Specifications
GFD134866Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - Brake tube fitting (part of 2265)
2 - Brake flexible hose bracket bolt
3 385116 Brake caliper flow bolt
4 2149 Copper washers (2 required)
5 2282 Brake flexible hose
