Bumper - Rear: Removal

1.

Remove the rear bumper cover. Refer to Bumper Cover - Rear .

2.

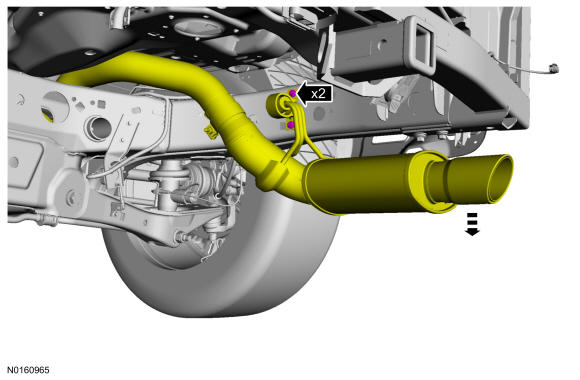

Remove the bolts and lower the exhaust system.

GFD137915

Courtesy of FORD MOTOR COMPANY

3.

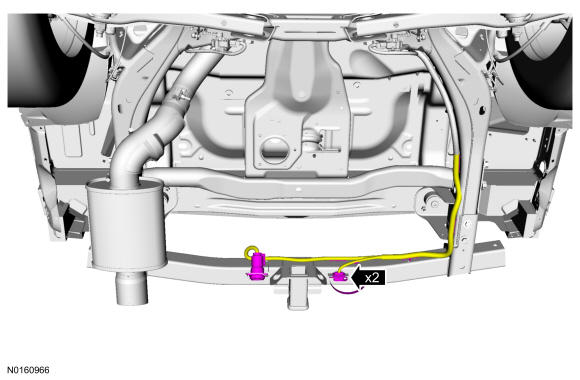

Disconnect the wiring harness.

GFD137916

Courtesy of FORD MOTOR COMPANY

4.

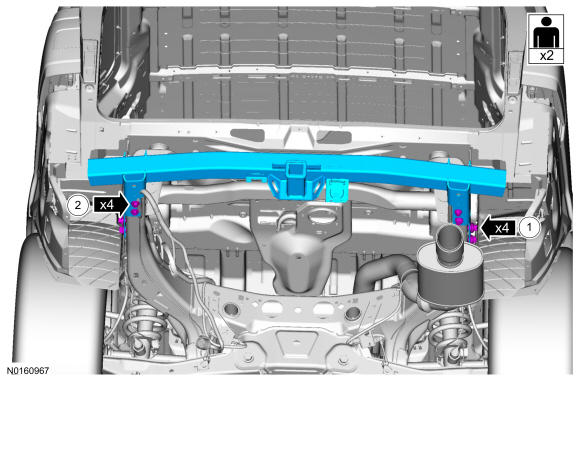

With the help of an assistant, remove the rear bumper.
- 1.

  Remove the bolts.
  - To install, tighten to 175 Nm (129 lb-ft).
- 2.

  Remove the bolts.
  - To install, tighten to 275 Nm (203 lb-ft).

GFD137917

Courtesy of FORD MOTOR COMPANY
