Removal And Installation
NOTE:
Expedition shown, Navigator similar.
- 1.

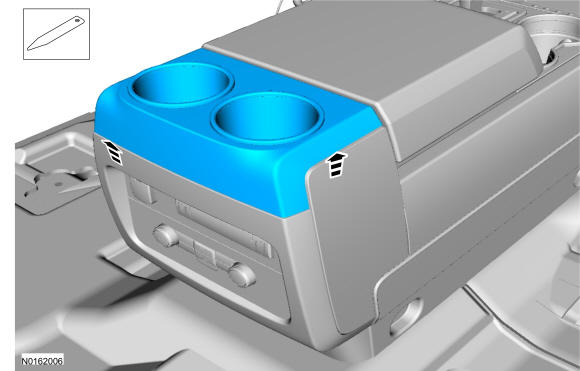

Remove the floor console rear cup holders.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

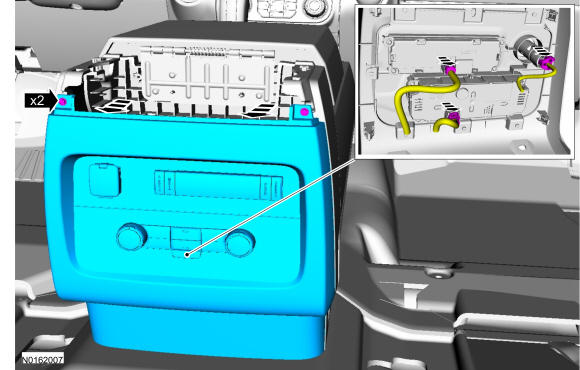

Remove the retainers, disconnect the electrical connectors and remove the floor console rear trim panel.
 Courtesy of FORD MOTOR COMPANY
|
- 3.
- 1.

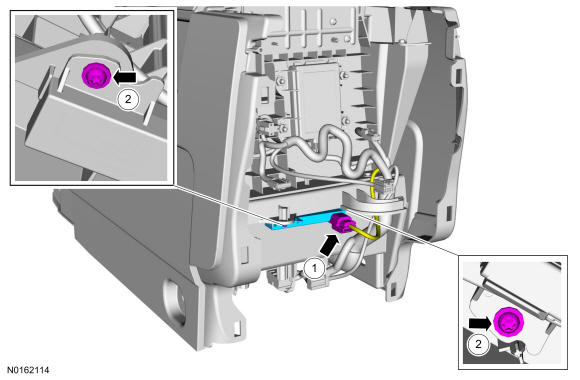

Disconnect the PATS antenna electrical connector.
- 2.
Remove the screws and the PATS center antenna.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
To install, reverse the removal procedure.
