Brake Pedal and Bracket: Notes
NOTE:

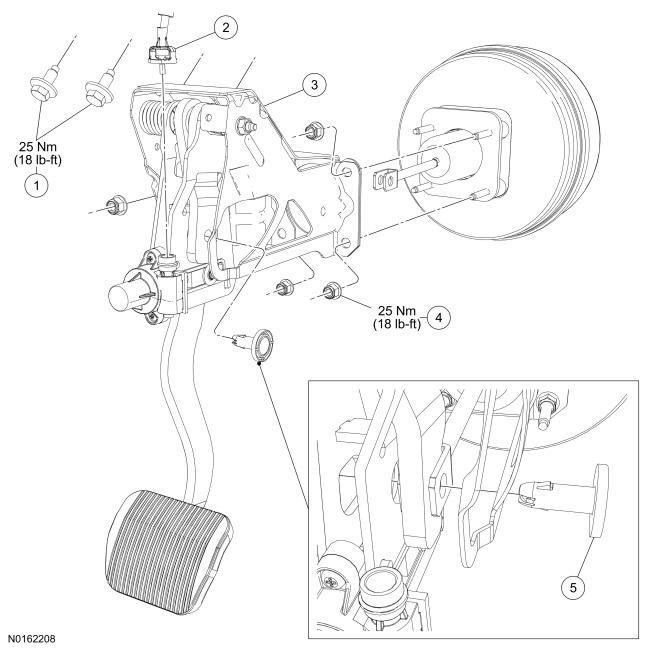

Adjustable brake pedal and bracket shown, fixed brake pedal and bracket similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W702368 | Brake pedal bracket bolts |
| 2 | - | Accelerator pedal-to-brake pedal cable (part of 9F836) |
| 3 | 2450 | Brake pedal and bracket |
| 4 | W520212 | Brake pedal bracket nut (4 required) |
| 5 | 2L523 | Brake pedal pin |
