Brake Vacuum Pump - 1.5L EcoBoost (132kW 180PS) - I4: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .

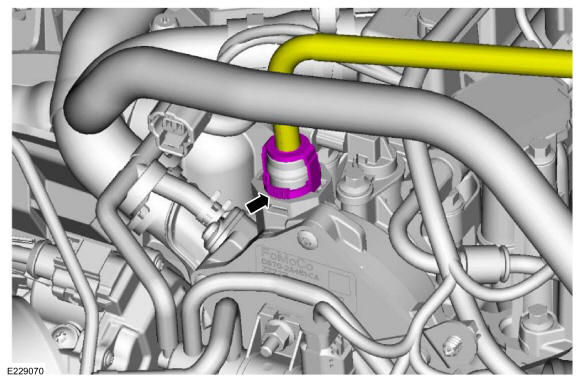

Squeeze the sides of the coupling and disconnect the vacuum tube.

Courtesy of FORD MOTOR COMPANY

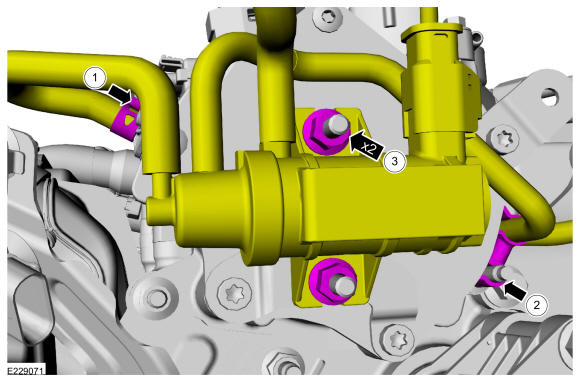

- Release the clamp and disconnect the vacuum hose.
- Detach the vacuum hose retainer.
- Remove the nuts and position the vacuum control regulator aside.
  Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

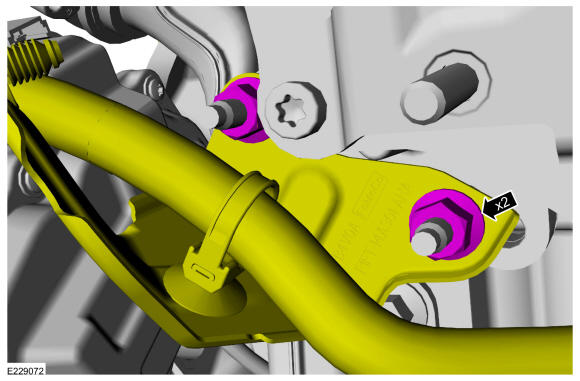

Remove the nuts and position the wiring harness bracket aside.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

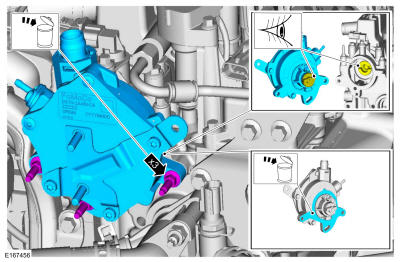

NOTE: Manually align the brake vacuum pump drive key with the camshaft slot before installation.
1. Remove the bolts and the brake vacuum pump. Discard the bolts.
  Torque: 89 lb.in (10 Nm)
2. Remove and discard the gasket.
Courtesy of FORD MOTOR COMPANY

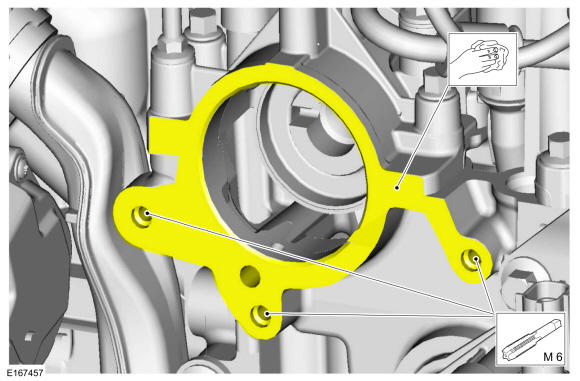

NOTE: Make sure the mating surfaces are clean and free of foreign material and thread lock residue is cleaned from the bolt holes.

Clean the mating surfaces and tap the bolt holes.

Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

Courtesy of FORD MOTOR COMPANY

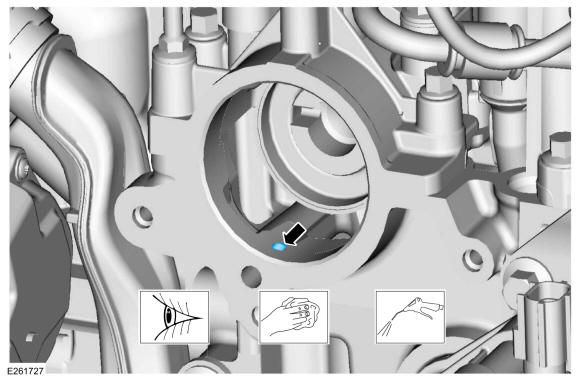

NOTE: Make sure the vacuum pump oil feed hole is clean and free of foreign materials.

Inspect and clean the vacuum pump oil feed hole.

Courtesy of FORD MOTOR COMPANY
