Brake Vacuum Pump - 2.7L EcoBoost (238kW/324PS): Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the air cleaner outlet pipes. Refer to: AIR CLEANER OUTLET PIPE LH . Refer to: AIR CLEANER OUTLET PIPE RH .

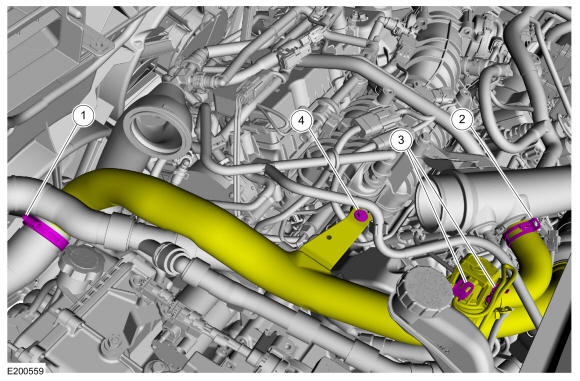

- 2.

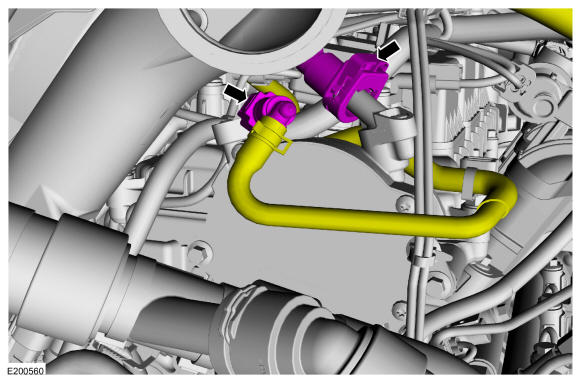

- 1.
Loosen the clamp and disconnect the pipe.Torque: 44 lb.in (5 Nm)
- 2.
Release the clamp and disconnect the pipe.
- 3.

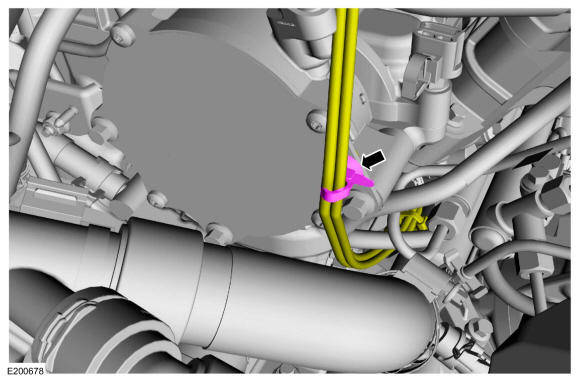

Disconnect the electrical connector and detach the wiring retainer.
- 4.
Remove the bolt and position the CAC intake pipe aside.Torque: 71 lb.in (8 Nm)
- 1.
