Remote Keyless Entry and Alarm

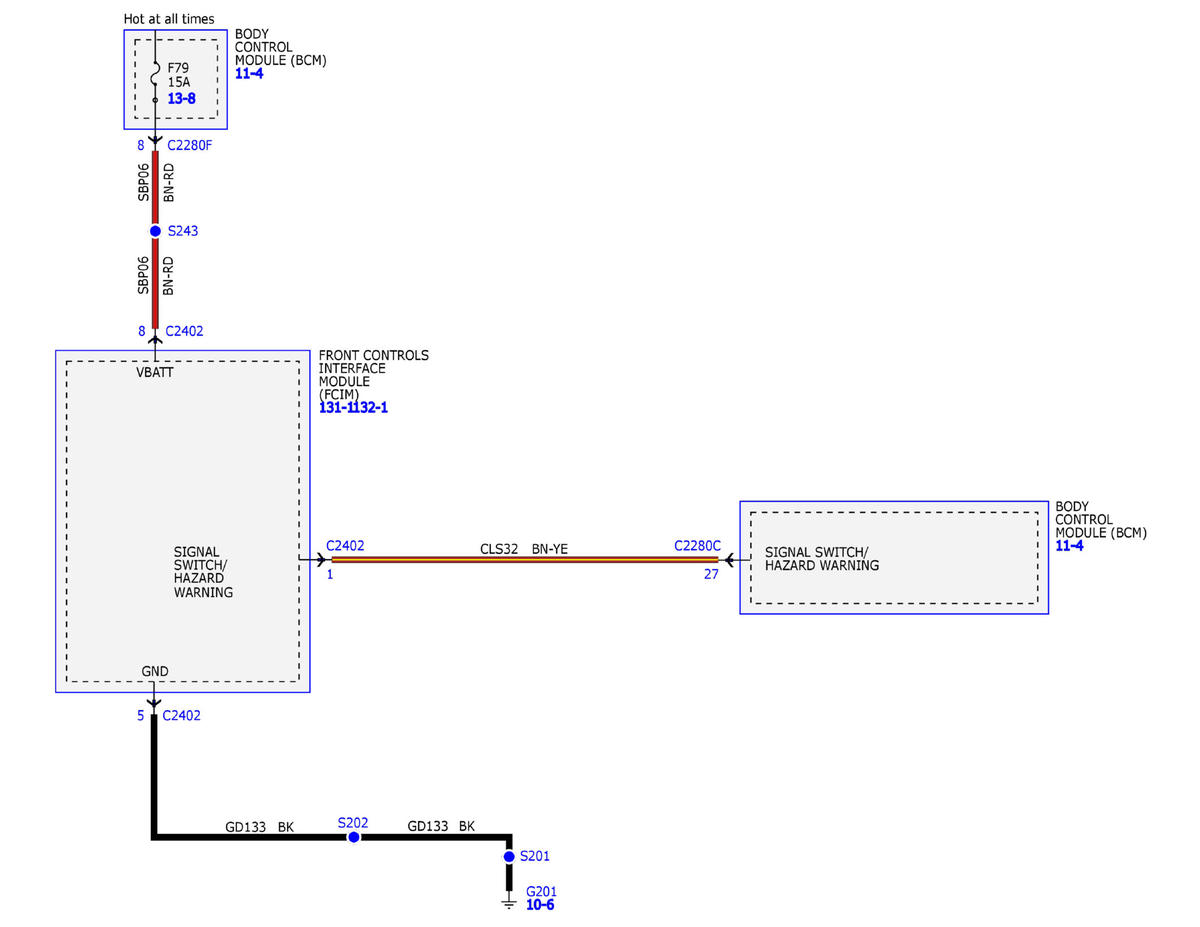

Fig 1: Remote Keyless Entry and Alarm Wiring Diagram (1 Of 11)
GFDW88965Courtesy of FORD MOTOR COMPANY

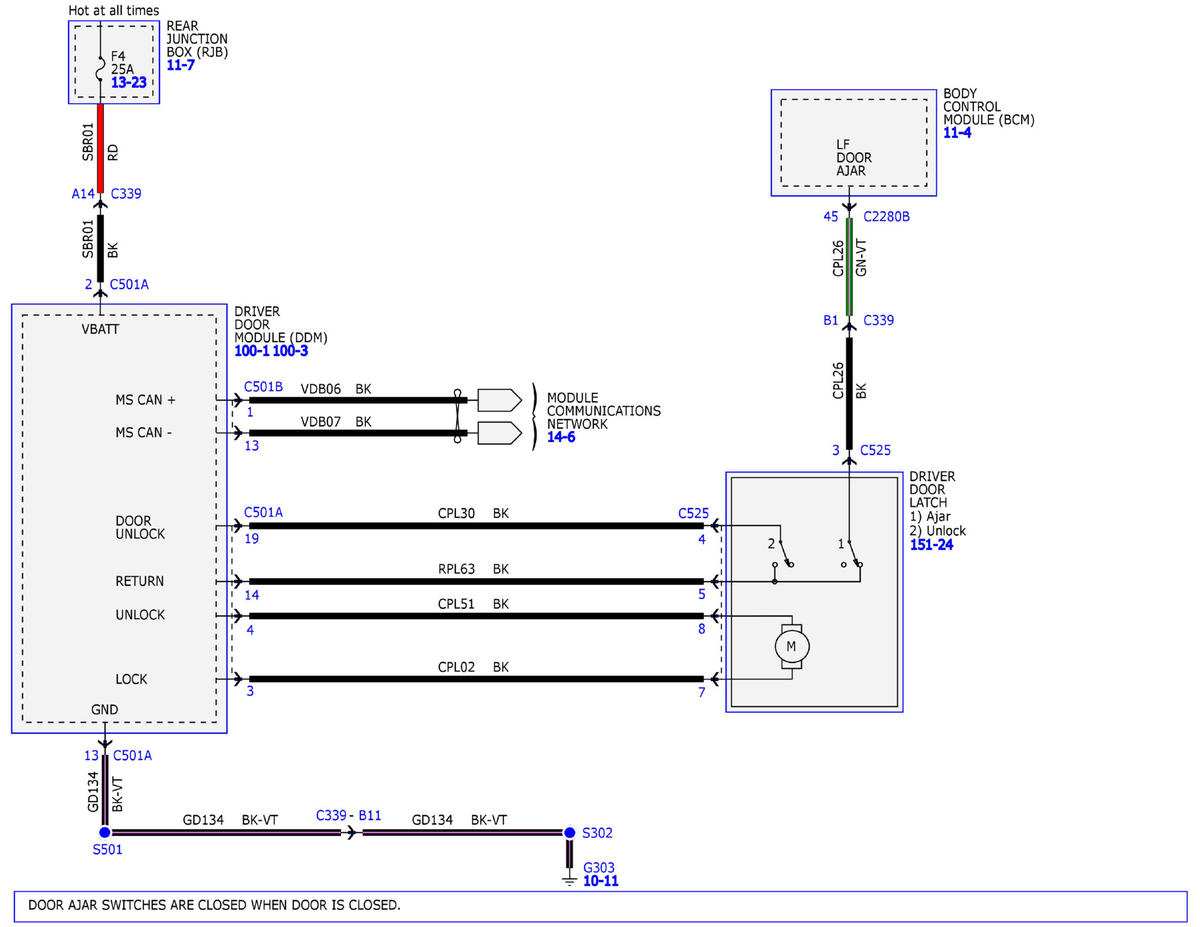

Fig 2: Remote Keyless Entry and Alarm Wiring Diagram (2 Of 11)
GFDW88966Courtesy of FORD MOTOR COMPANY

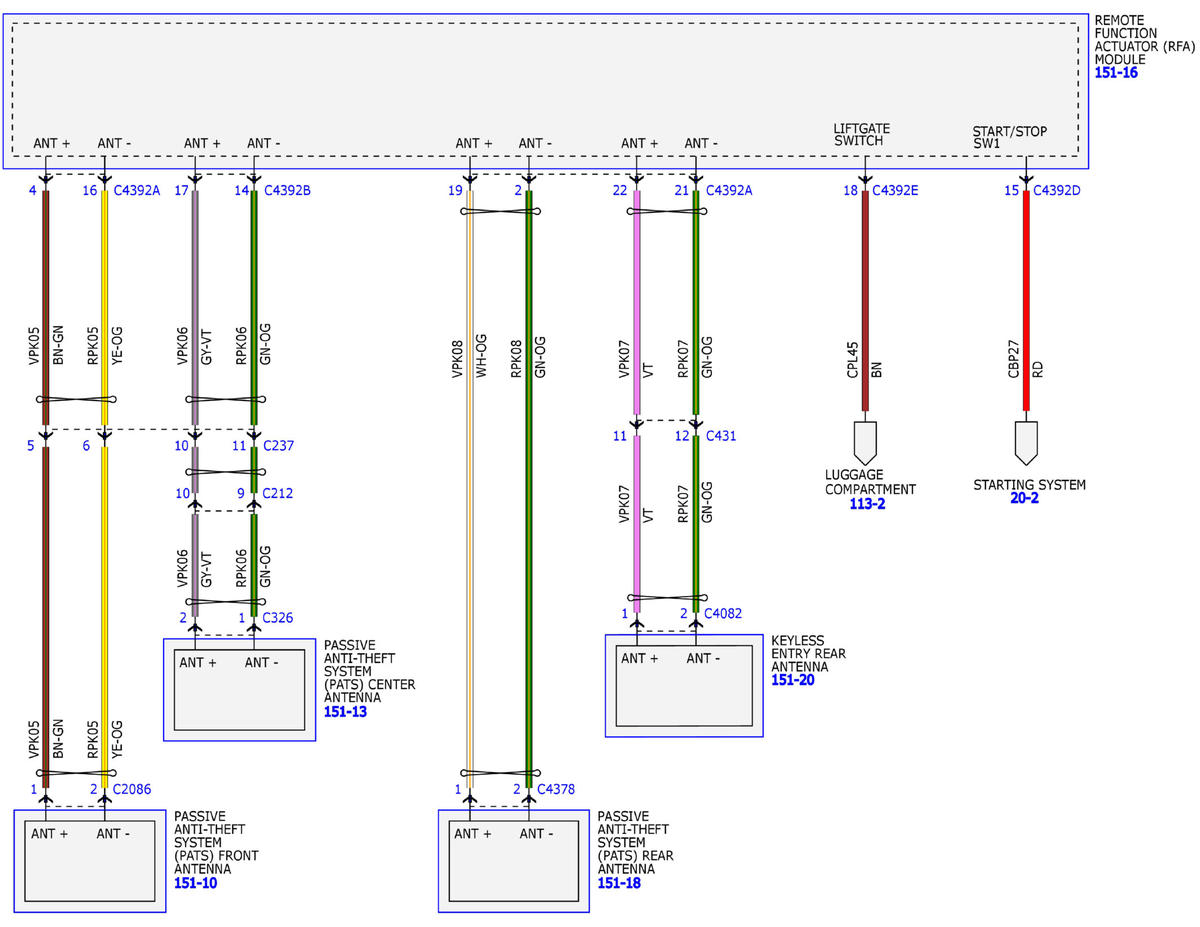

Fig 3: Remote Keyless Entry and Alarm Wiring Diagram (3 Of 11)
GFDW88967Courtesy of FORD MOTOR COMPANY

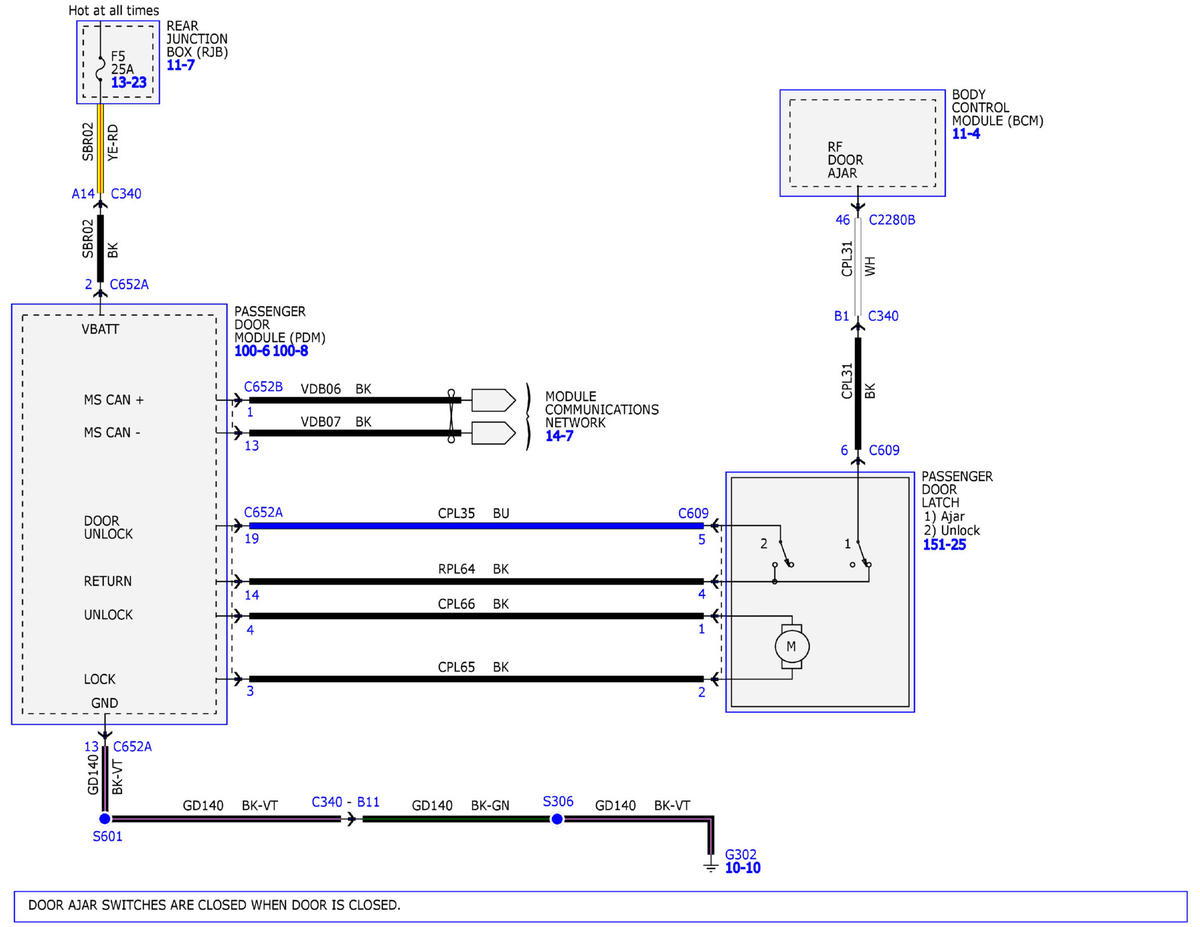

Fig 4: Remote Keyless Entry and Alarm Wiring Diagram (4 Of 11)
GFDW88968Courtesy of FORD MOTOR COMPANY

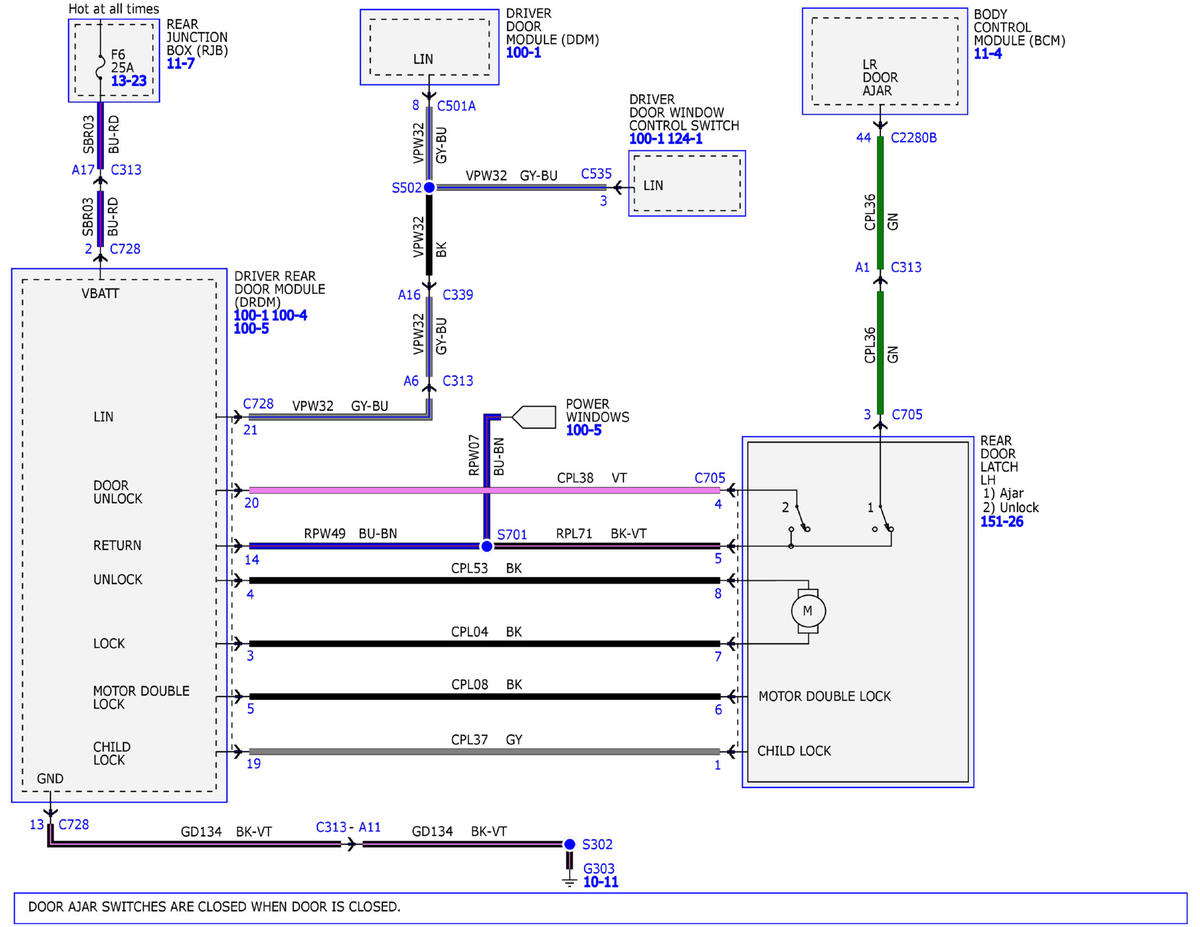

Fig 5: Remote Keyless Entry and Alarm Wiring Diagram (5 Of 11)
GFDW88969Courtesy of FORD MOTOR COMPANY

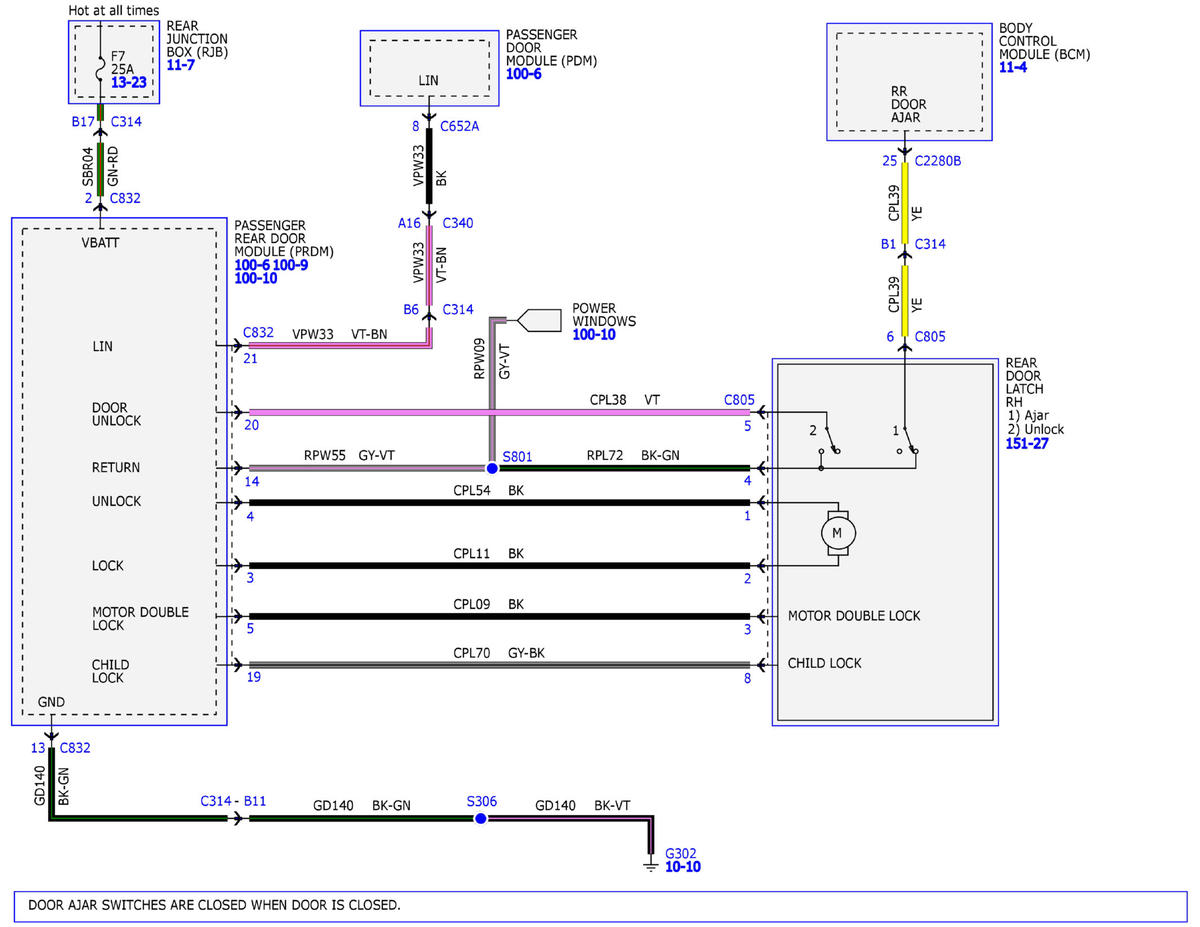

Fig 6: Remote Keyless Entry and Alarm Wiring Diagram (6 Of 11)
GFDW88970Courtesy of FORD MOTOR COMPANY

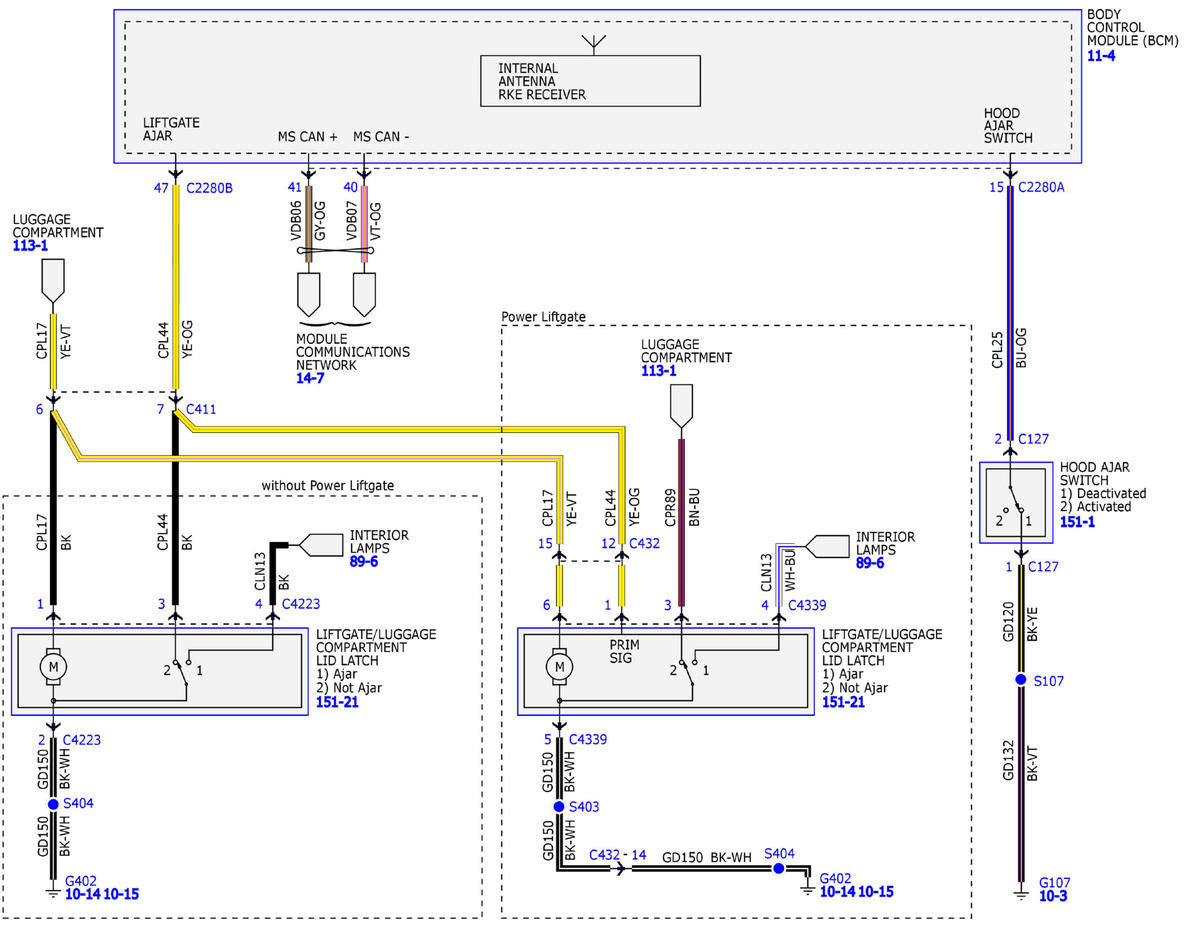

Fig 7: Remote Keyless Entry and Alarm Wiring Diagram (7 Of 11)
GFDW88971Courtesy of FORD MOTOR COMPANY

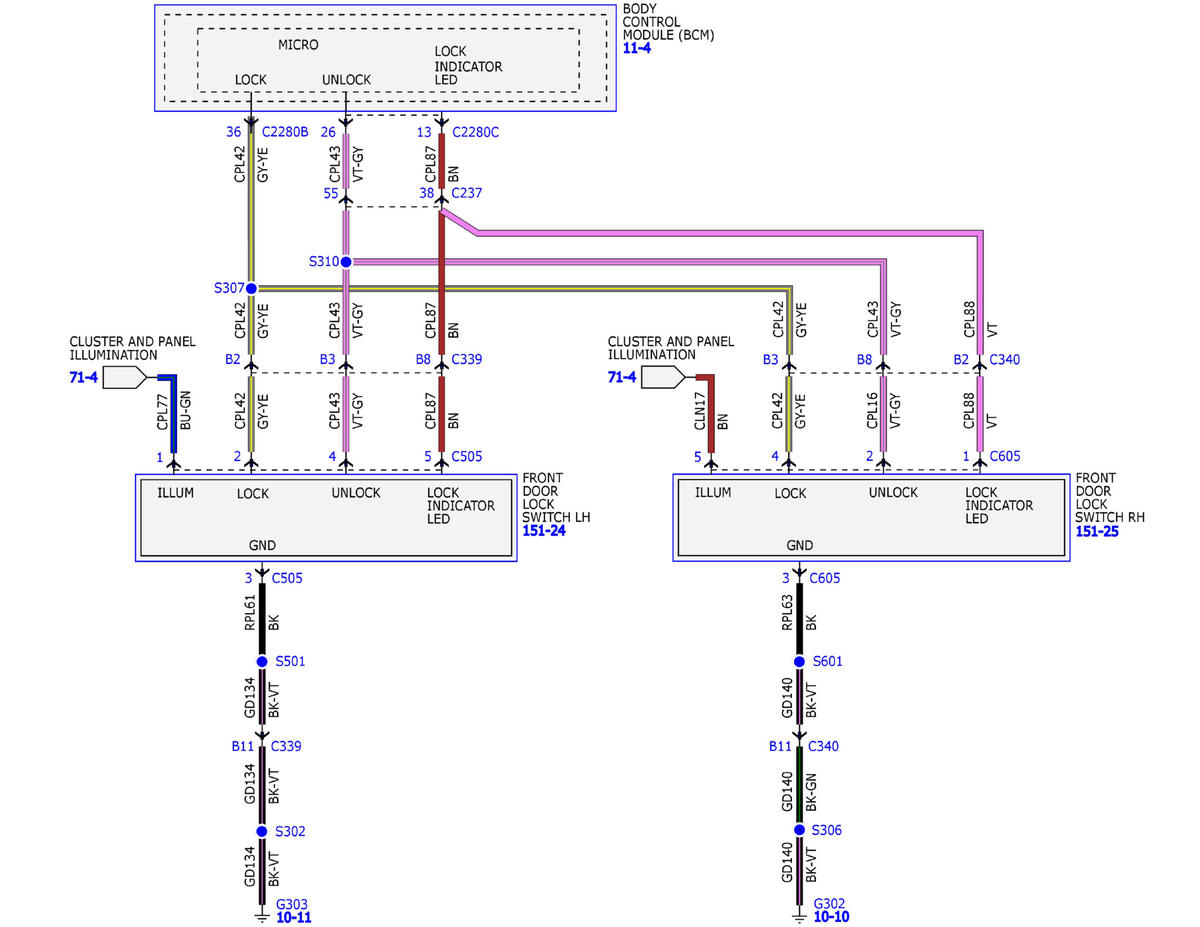

Fig 8: Remote Keyless Entry and Alarm Wiring Diagram (8 Of 11)
GFDW88972Courtesy of FORD MOTOR COMPANY

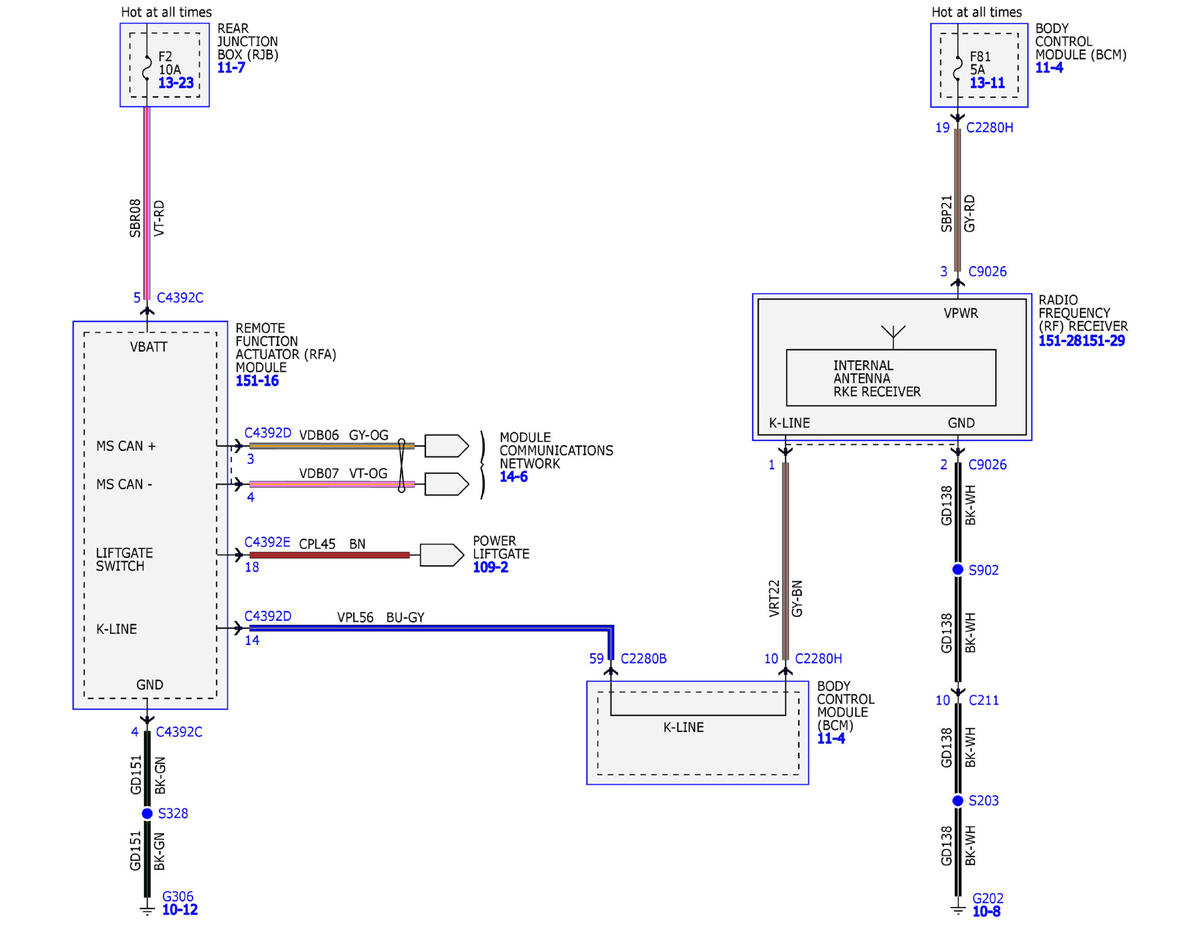

Fig 9: Remote Keyless Entry and Alarm Wiring Diagram (9 Of 11)
GFDW88973Courtesy of FORD MOTOR COMPANY

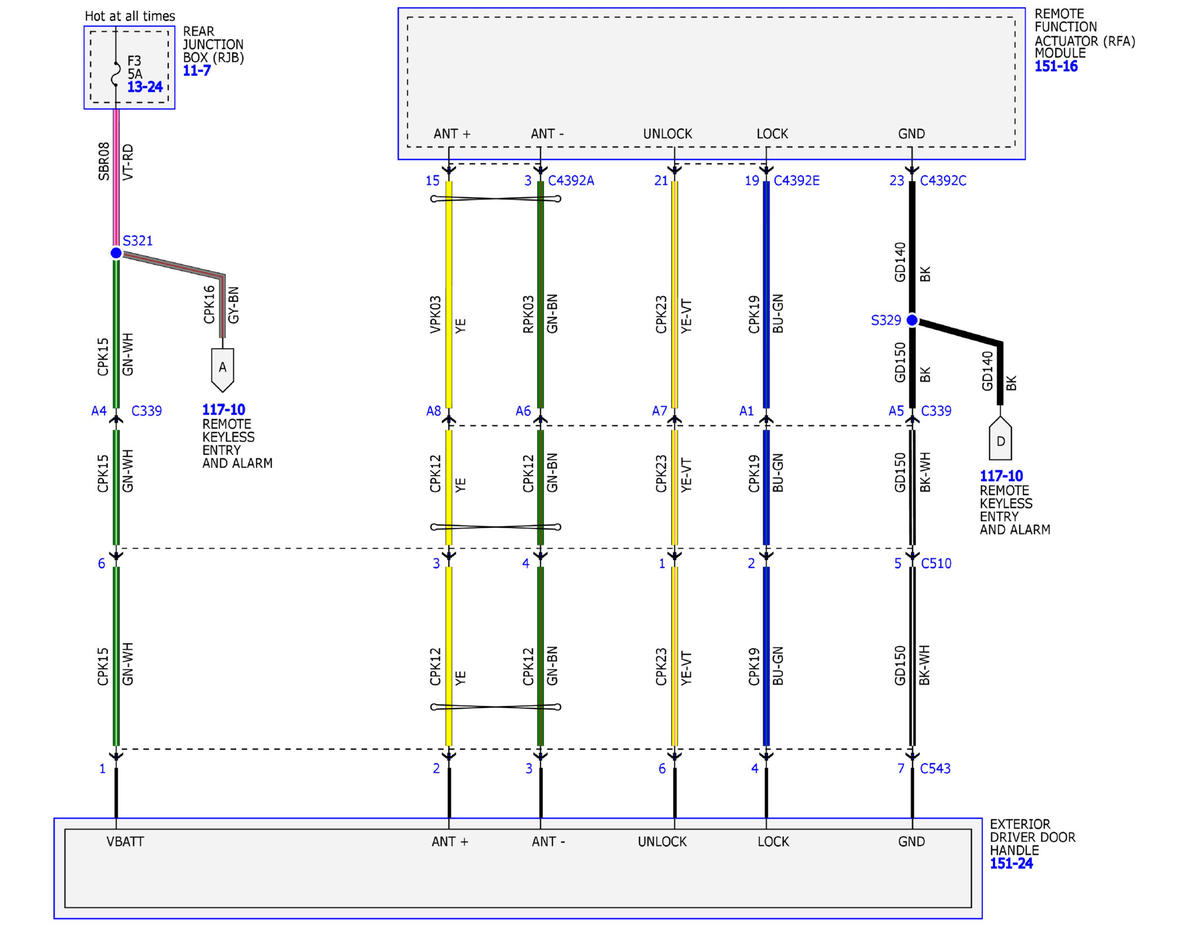

Fig 10: Remote Keyless Entry and Alarm Wiring Diagram (10 Of 11)
GFDW88974Courtesy of FORD MOTOR COMPANY

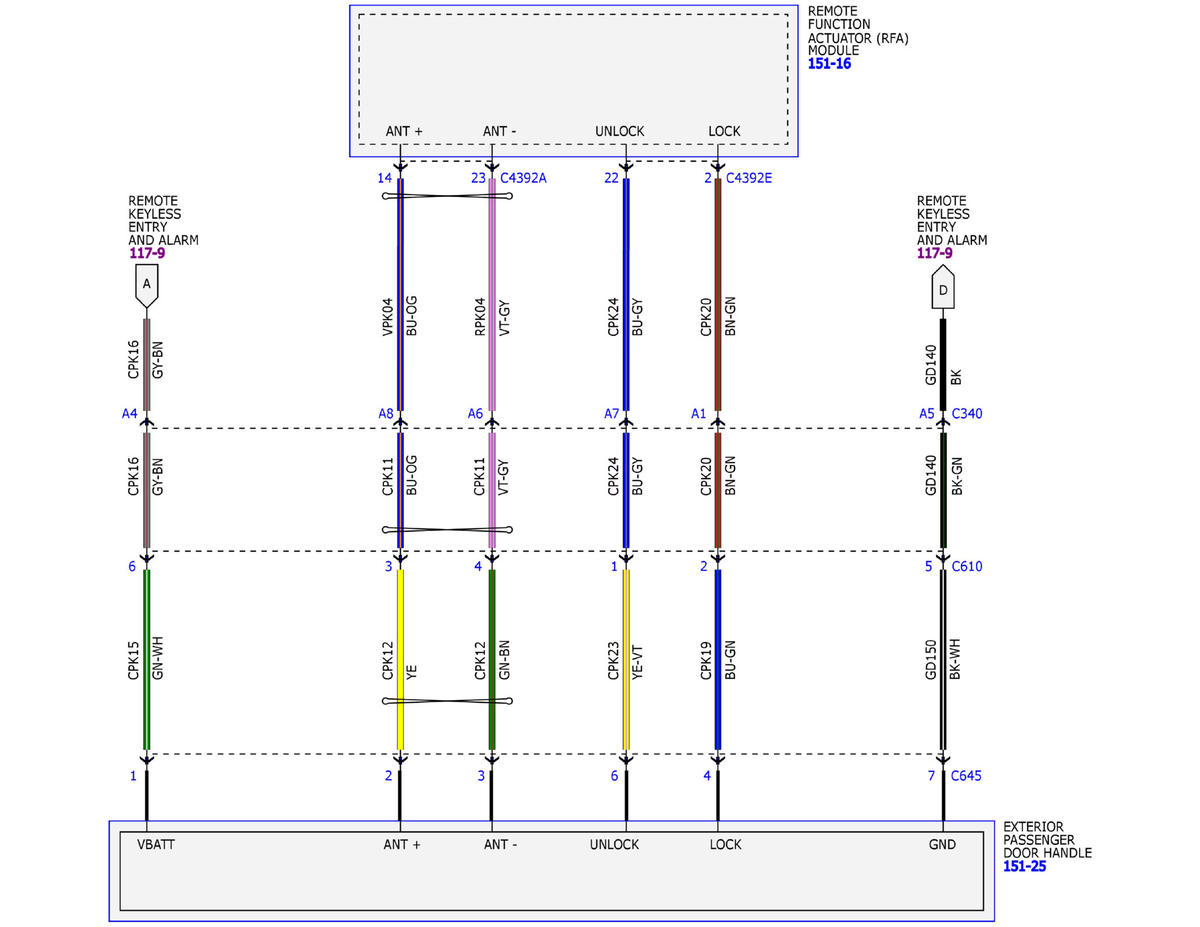

Fig 11: Remote Keyless Entry and Alarm Wiring Diagram (11 Of 11)
GFDW88975Courtesy of FORD MOTOR COMPANY
