Power Liftgate

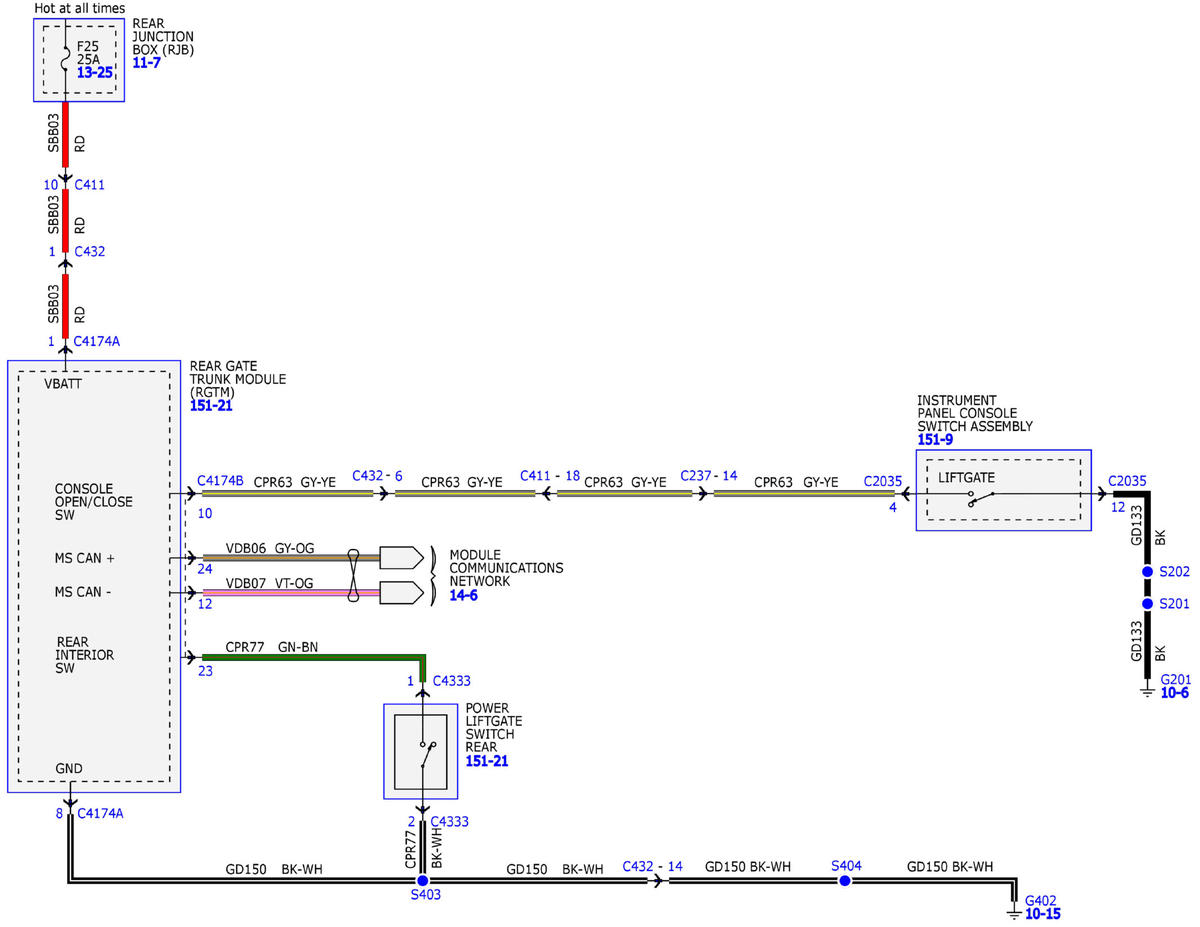

Fig 1: Power Liftgate Wiring Diagram (1 Of 4)
GFDW88942Courtesy of FORD MOTOR COMPANY

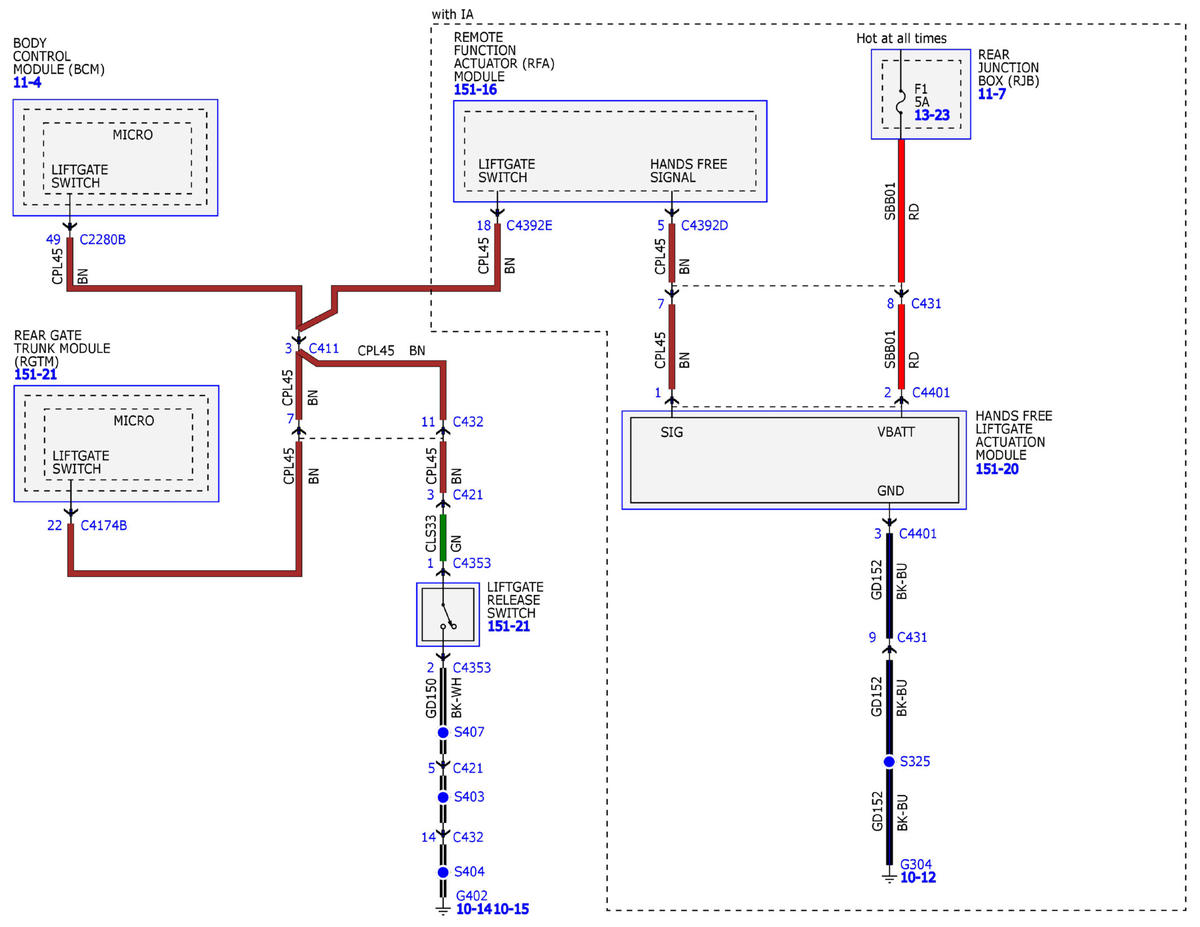

Fig 2: Power Liftgate Wiring Diagram (2 Of 4)
GFDW88943Courtesy of FORD MOTOR COMPANY

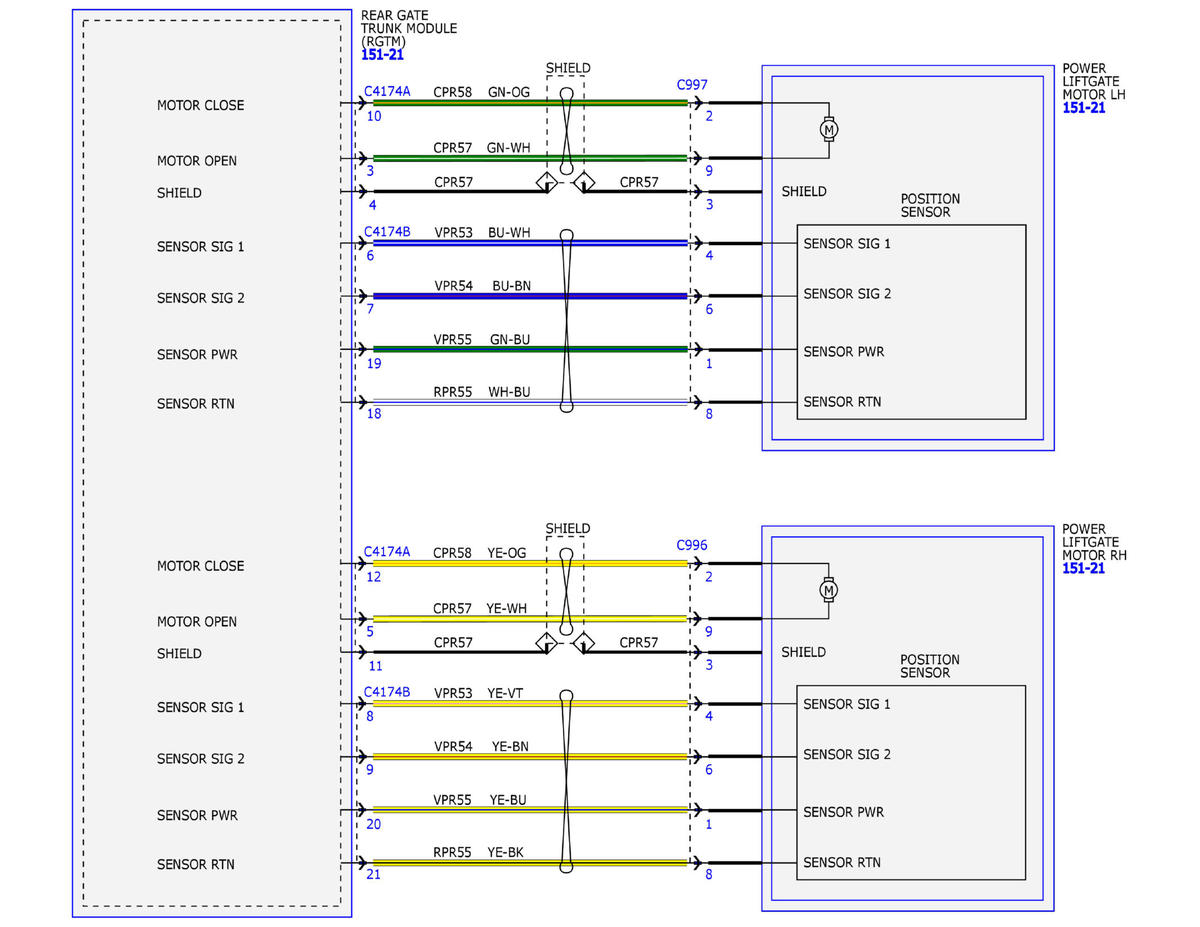

Fig 3: Power Liftgate Wiring Diagram (3 Of 4)
GFDW88944Courtesy of FORD MOTOR COMPANY

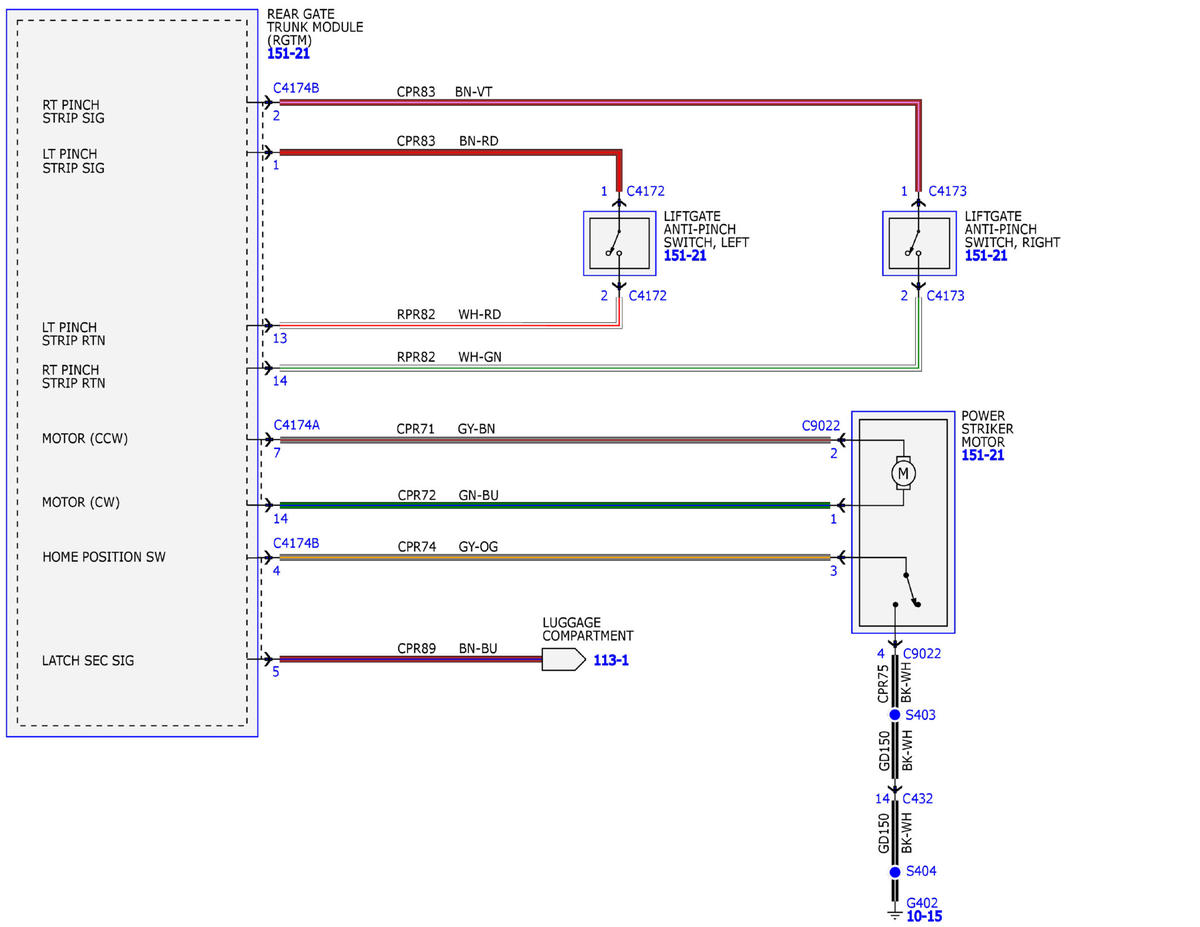

Fig 4: Power Liftgate Wiring Diagram (4 Of 4)
GFDW88945Courtesy of FORD MOTOR COMPANY
