Power Distribution/BCM

Fig 1: Power Distribution/BCM Wiring Diagram (1 Of 26)

GFDW88916

Courtesy of FORD MOTOR COMPANY

Fig 2: Power Distribution/BCM Wiring Diagram (2 Of 26)

GFDW88917

Courtesy of FORD MOTOR COMPANY

Fig 3: Power Distribution/BCM Wiring Diagram (3 Of 26)

GFDW88918

Courtesy of FORD MOTOR COMPANY

Fig 4: Power Distribution/BCM Wiring Diagram (4 Of 26)

GFDW88919

Courtesy of FORD MOTOR COMPANY

Fig 5: Power Distribution/BCM Wiring Diagram (5 Of 26)

GFDW88920

Courtesy of FORD MOTOR COMPANY

Fig 6: Power Distribution/BCM Wiring Diagram (6 Of 26)

GFDW88921

Courtesy of FORD MOTOR COMPANY

Fig 7: Power Distribution/BCM Wiring Diagram (7 Of 26)

GFDW88922

Courtesy of FORD MOTOR COMPANY

Fig 8: Power Distribution/BCM Wiring Diagram (8 Of 26)

GFDW88923

Courtesy of FORD MOTOR COMPANY

Fig 9: Power Distribution/BCM Wiring Diagram (9 Of 26)

GFDW88924

Courtesy of FORD MOTOR COMPANY

Fig 10: Power Distribution/BCM Wiring Diagram (10 Of 26)

GFDW88925

Courtesy of FORD MOTOR COMPANY

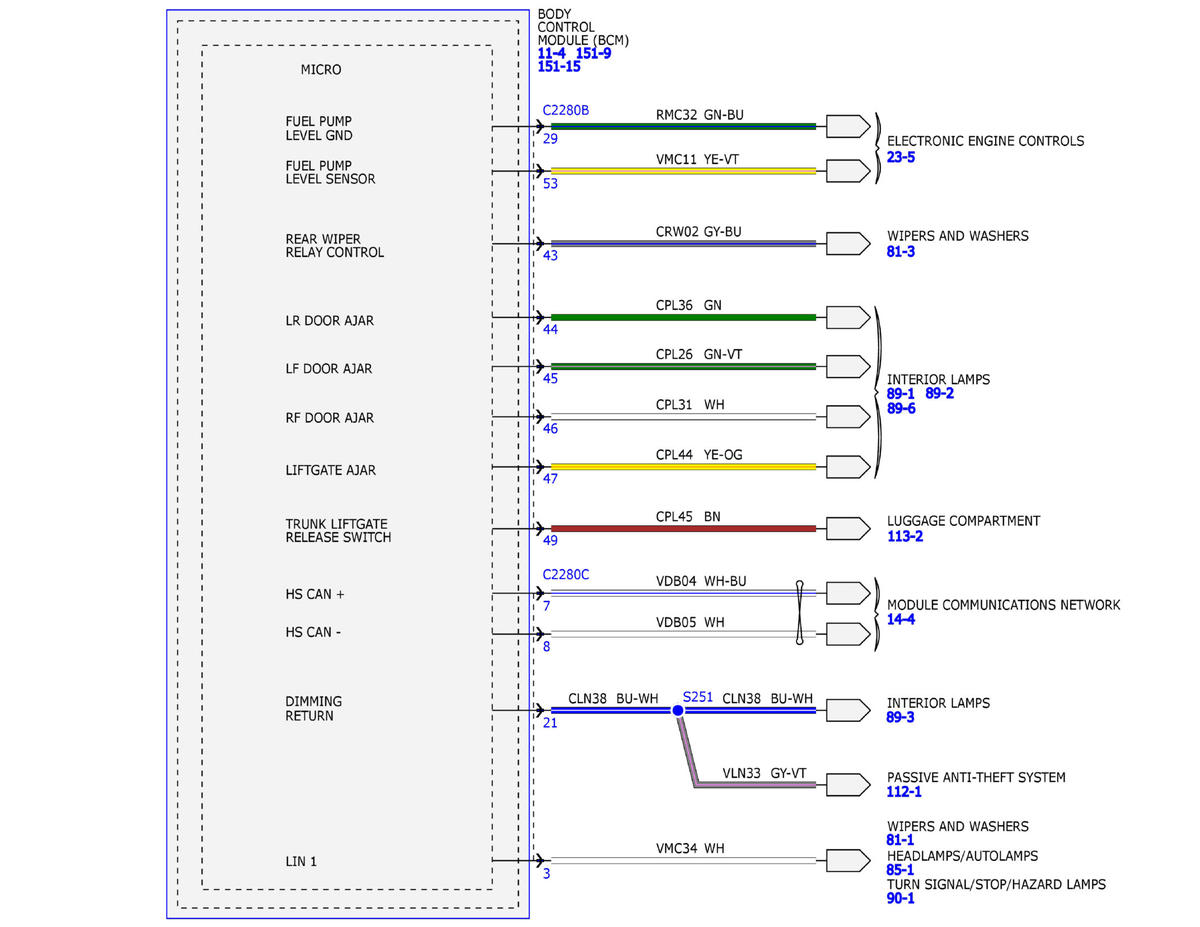

Fig 11: Power Distribution/BCM Wiring Diagram (11 Of 26)

GFDW88926

Courtesy of FORD MOTOR COMPANY

Fig 12: Power Distribution/BCM Wiring Diagram (12 Of 26)

GFDW88927

Courtesy of FORD MOTOR COMPANY

Fig 13: Power Distribution/BCM Wiring Diagram (13 Of 26)

GFDW88928

Courtesy of FORD MOTOR COMPANY

Fig 14: Power Distribution/BCM Wiring Diagram (14 Of 26)

GFDW88929

Courtesy of FORD MOTOR COMPANY

Fig 15: Power Distribution/BCM Wiring Diagram (15 Of 26)

GFDW88930

Courtesy of FORD MOTOR COMPANY

Fig 16: Power Distribution/BCM Wiring Diagram (16 Of 26)

GFDW88931

Courtesy of FORD MOTOR COMPANY

Fig 17: Power Distribution/BCM Wiring Diagram (17 Of 26)

GFDW88932

Courtesy of FORD MOTOR COMPANY

Fig 18: Power Distribution/BCM Wiring Diagram (18 Of 26)

GFDW88933

Courtesy of FORD MOTOR COMPANY

Fig 19: Power Distribution/BCM Wiring Diagram (19 Of 26)

GFDW88934

Courtesy of FORD MOTOR COMPANY

Fig 20: Power Distribution/BCM Wiring Diagram (20 Of 26)

GFDW88935

Courtesy of FORD MOTOR COMPANY

Fig 21: Power Distribution/BCM Wiring Diagram (21 Of 26)

GFDW88936

Courtesy of FORD MOTOR COMPANY

Fig 22: Power Distribution/BCM Wiring Diagram (22 Of 26)

GFDW88937

Courtesy of FORD MOTOR COMPANY

Fig 23: Power Distribution/BCM Wiring Diagram (23 Of 26)

GFDW88938

Courtesy of FORD MOTOR COMPANY

Fig 24: Power Distribution/BCM Wiring Diagram (24 Of 26)

GFDW88939

Courtesy of FORD MOTOR COMPANY

Fig 25: Power Distribution/BCM Wiring Diagram (25 Of 26)

GFDW88940

Courtesy of FORD MOTOR COMPANY

Fig 26: Power Distribution/BCM Wiring Diagram (26 Of 26)

GFDW88941

Courtesy of FORD MOTOR COMPANY
