Home >> Ford >> 2017 >> C-Max Hybrid Titanium >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams >> Instrument Cluster

Instrument Cluster

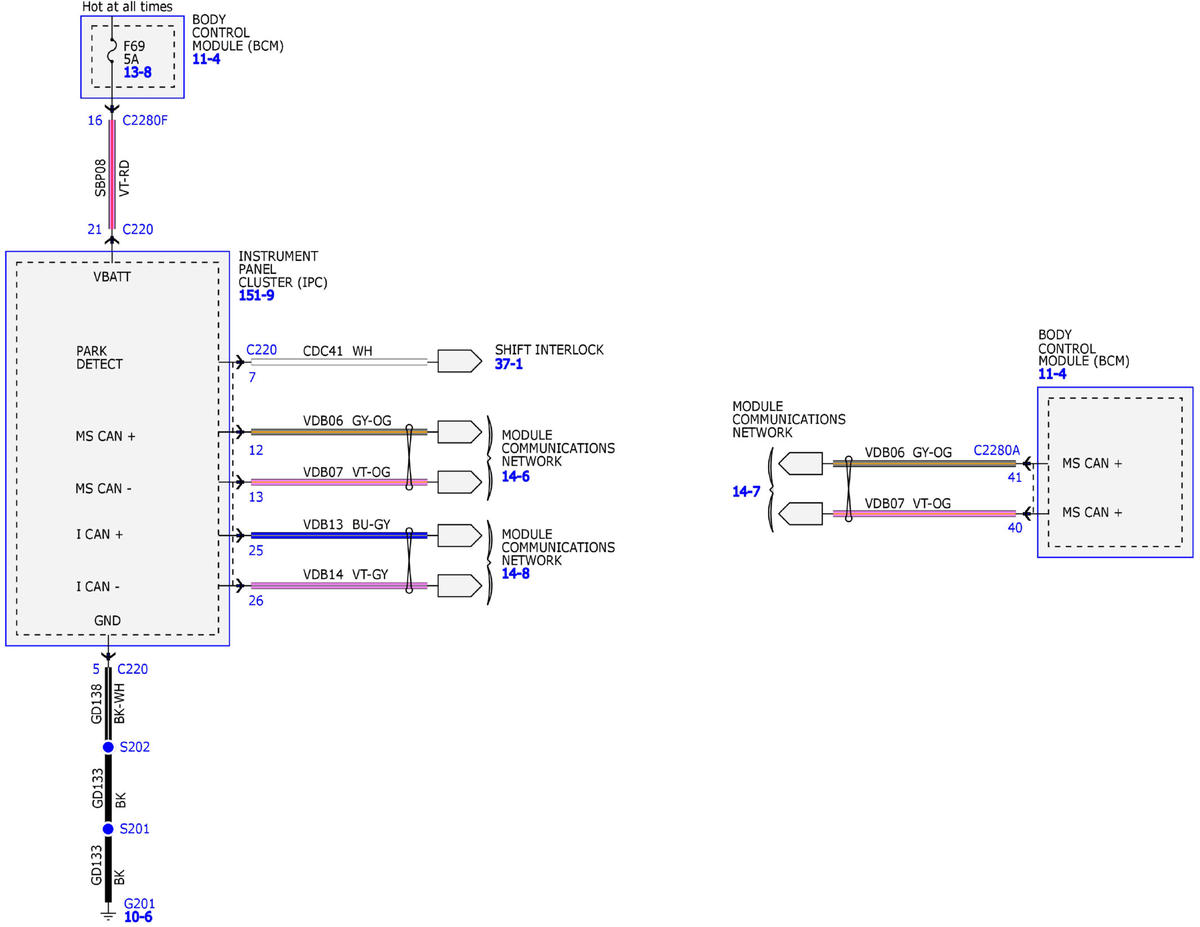

Fig 1: Instrument Cluster Wiring Diagram (1 Of 3)
GFDW88884Courtesy of FORD MOTOR COMPANY

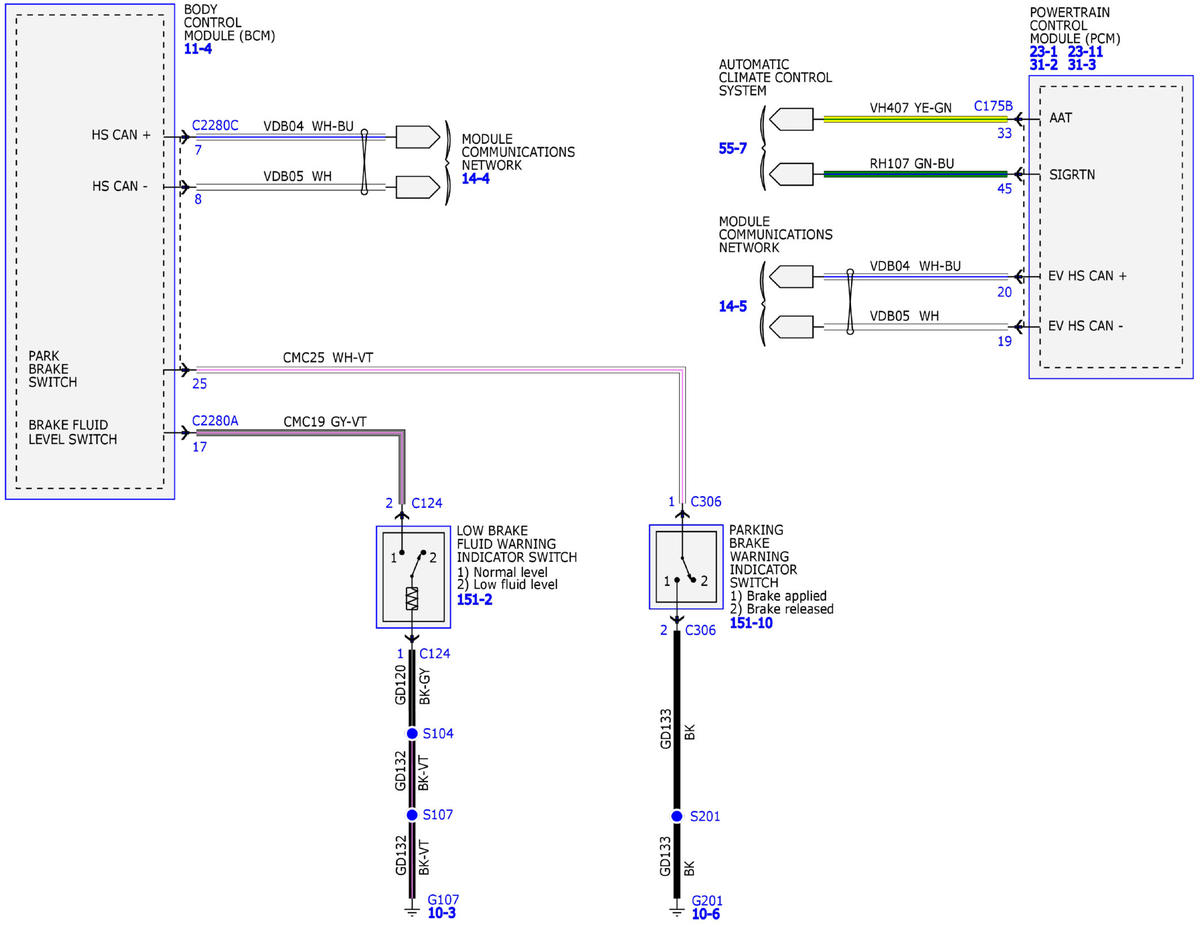

Fig 2: Instrument Cluster Wiring Diagram (2 Of 3)
GFDW88885Courtesy of FORD MOTOR COMPANY

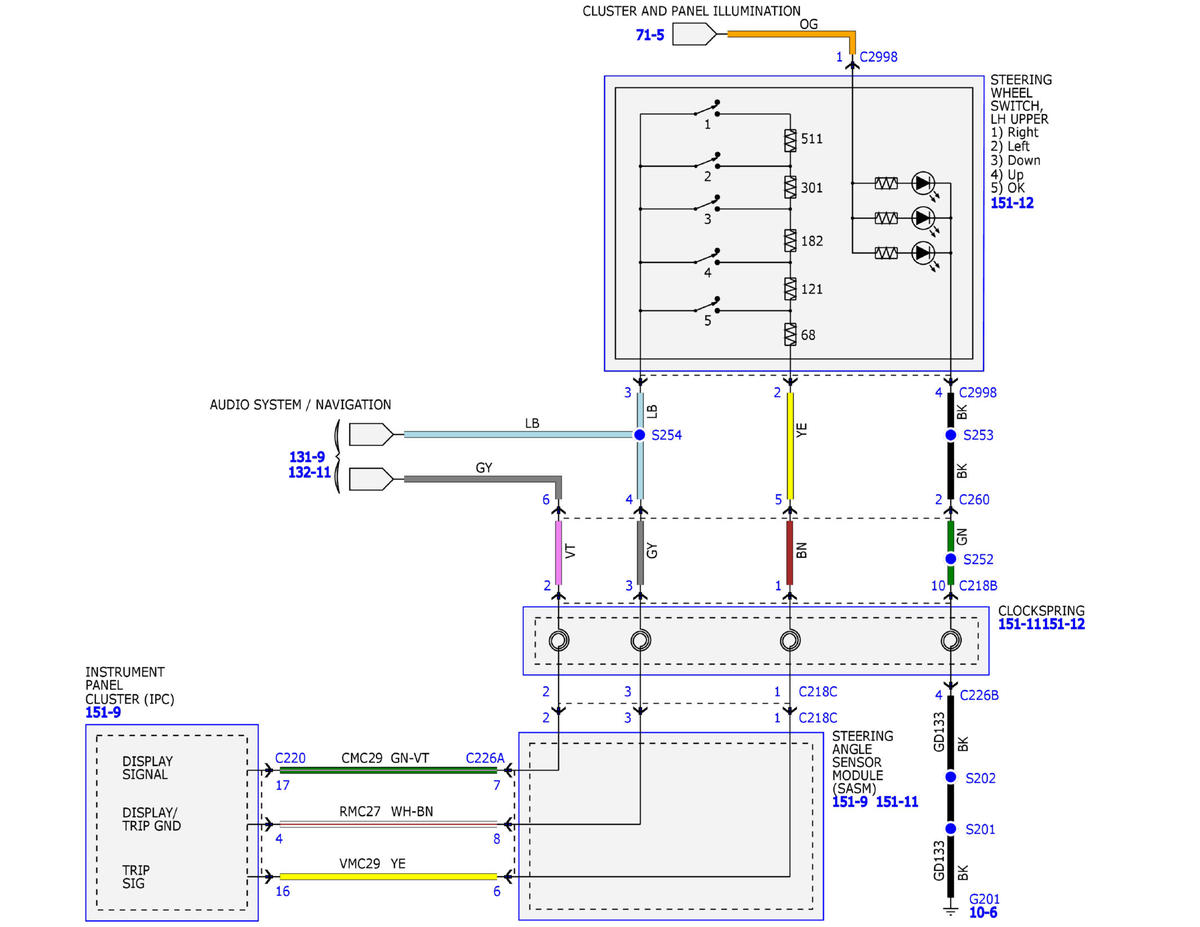

Fig 3: Instrument Cluster Wiring Diagram (3 Of 3)
GFDW88886Courtesy of FORD MOTOR COMPANY
