Audio System/Navigation - SYNC Without Touchscreen

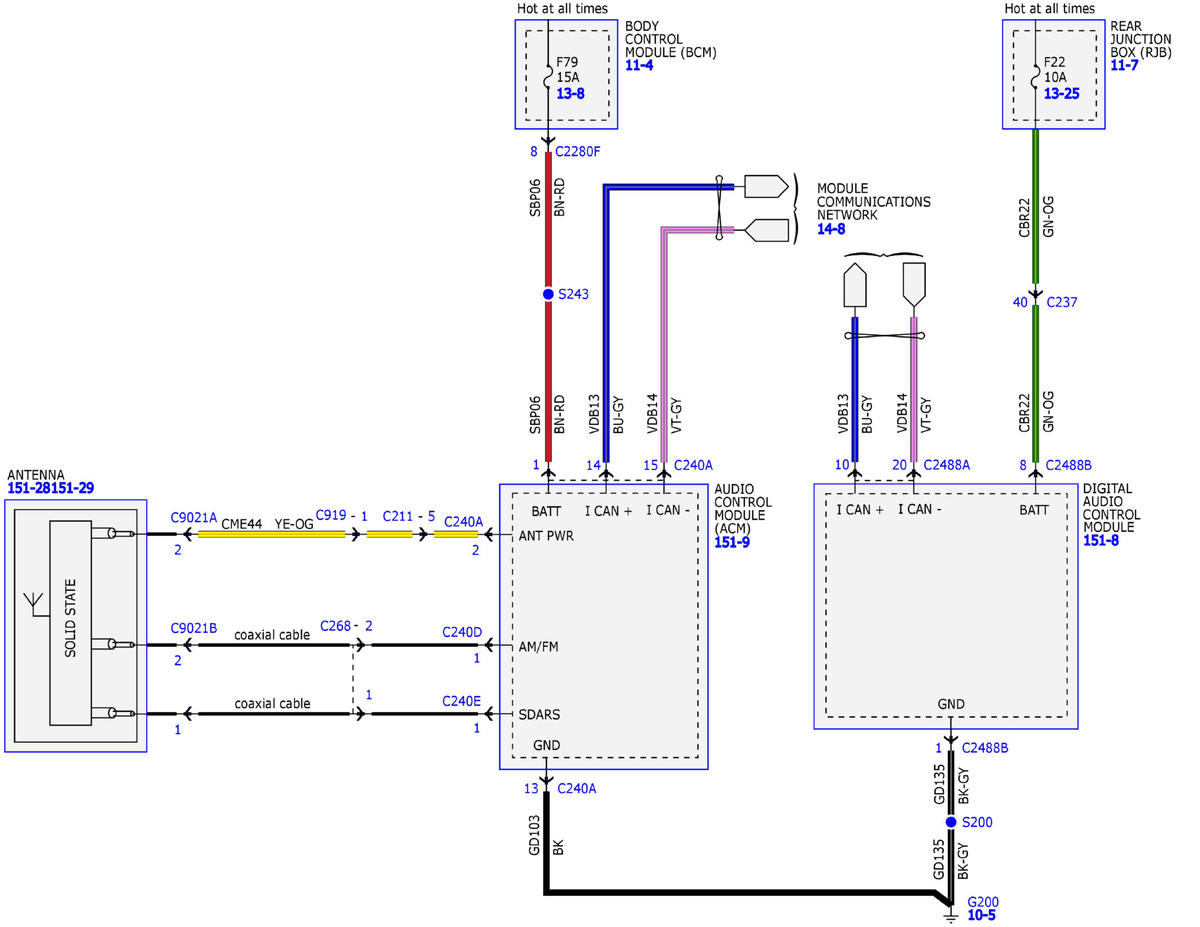

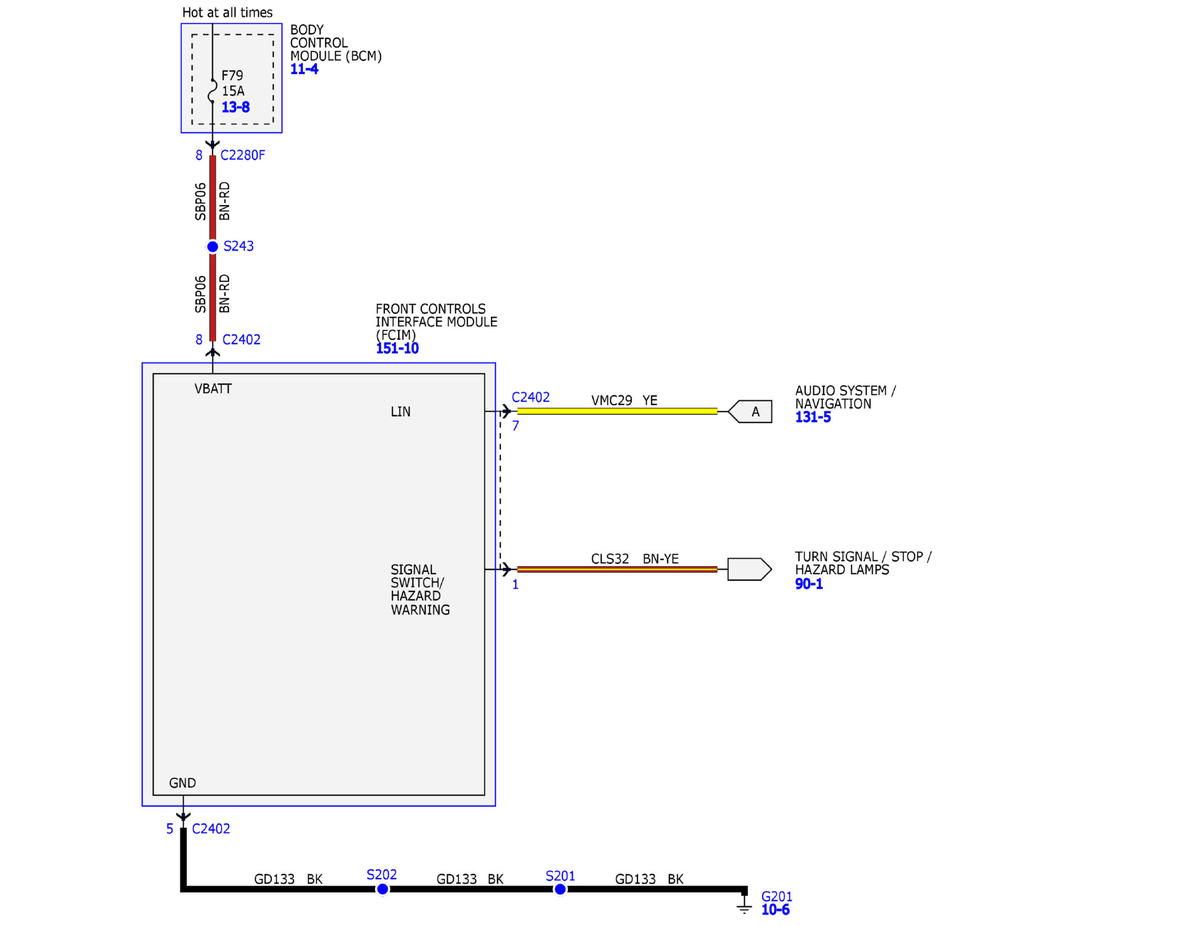

Fig 1: Audio System/Navigation - Sync Without Touchscreen Wiring Diagram (1 Of 11)

Courtesy of FORD MOTOR COMPANY

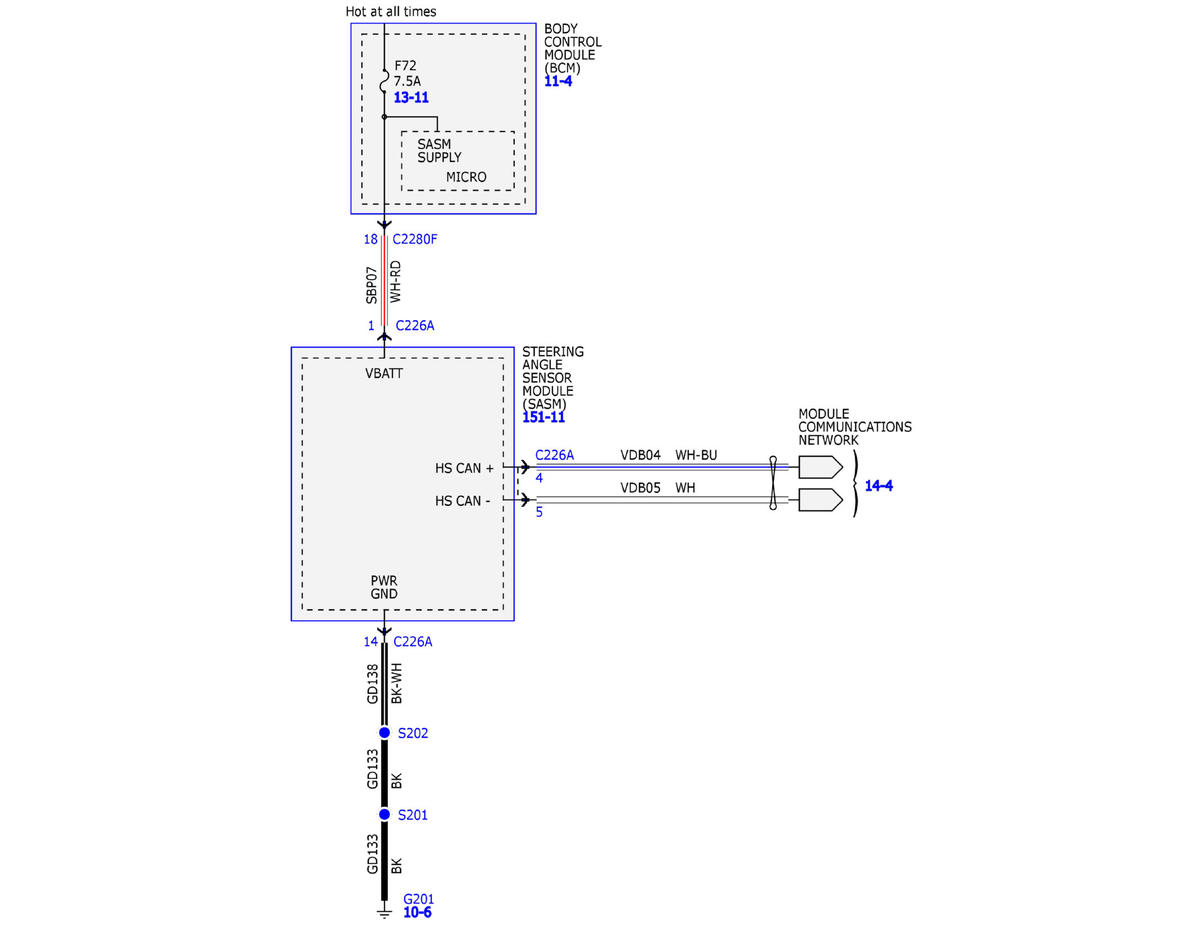

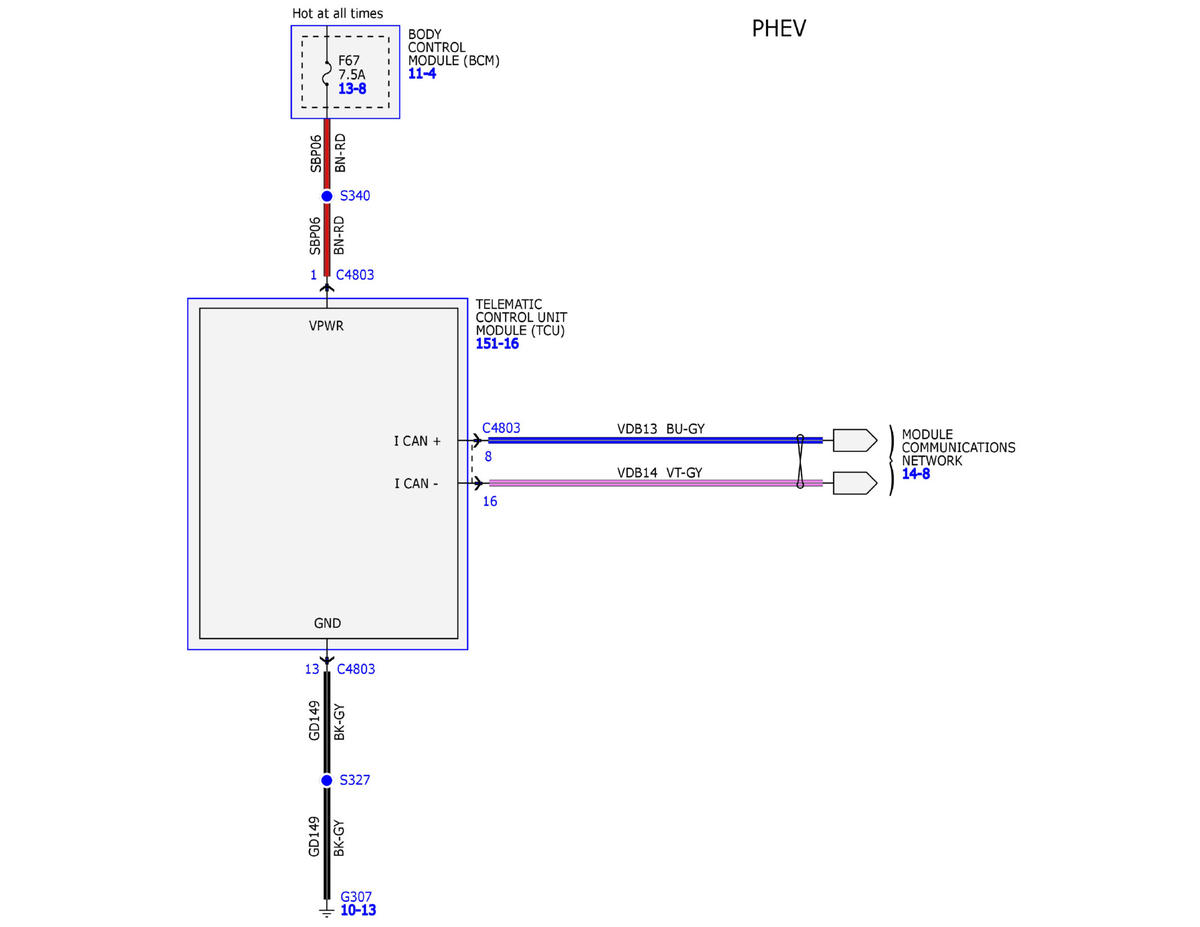

Fig 2: Audio System/Navigation - Sync Without Touchscreen Wiring Diagram (2 Of 11)

Courtesy of FORD MOTOR COMPANY

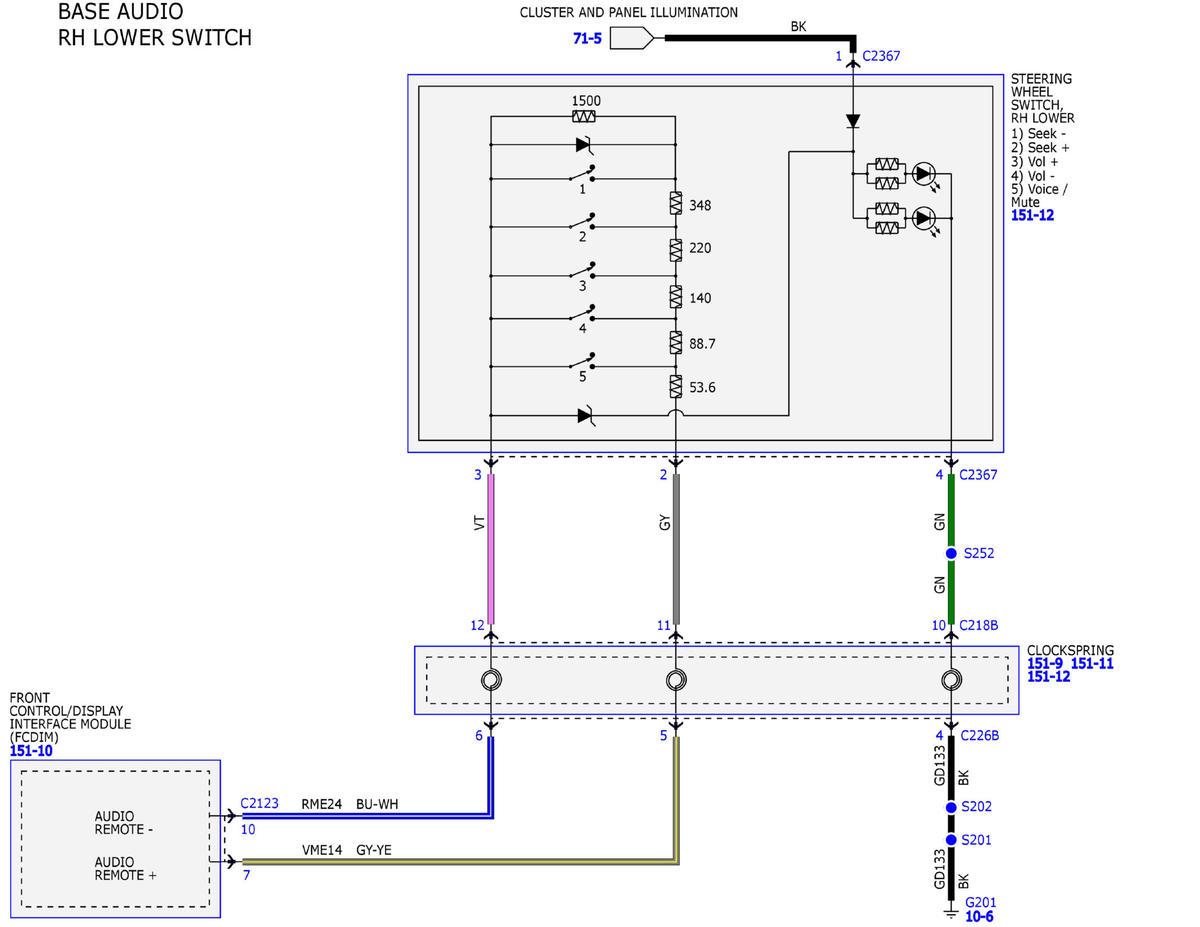

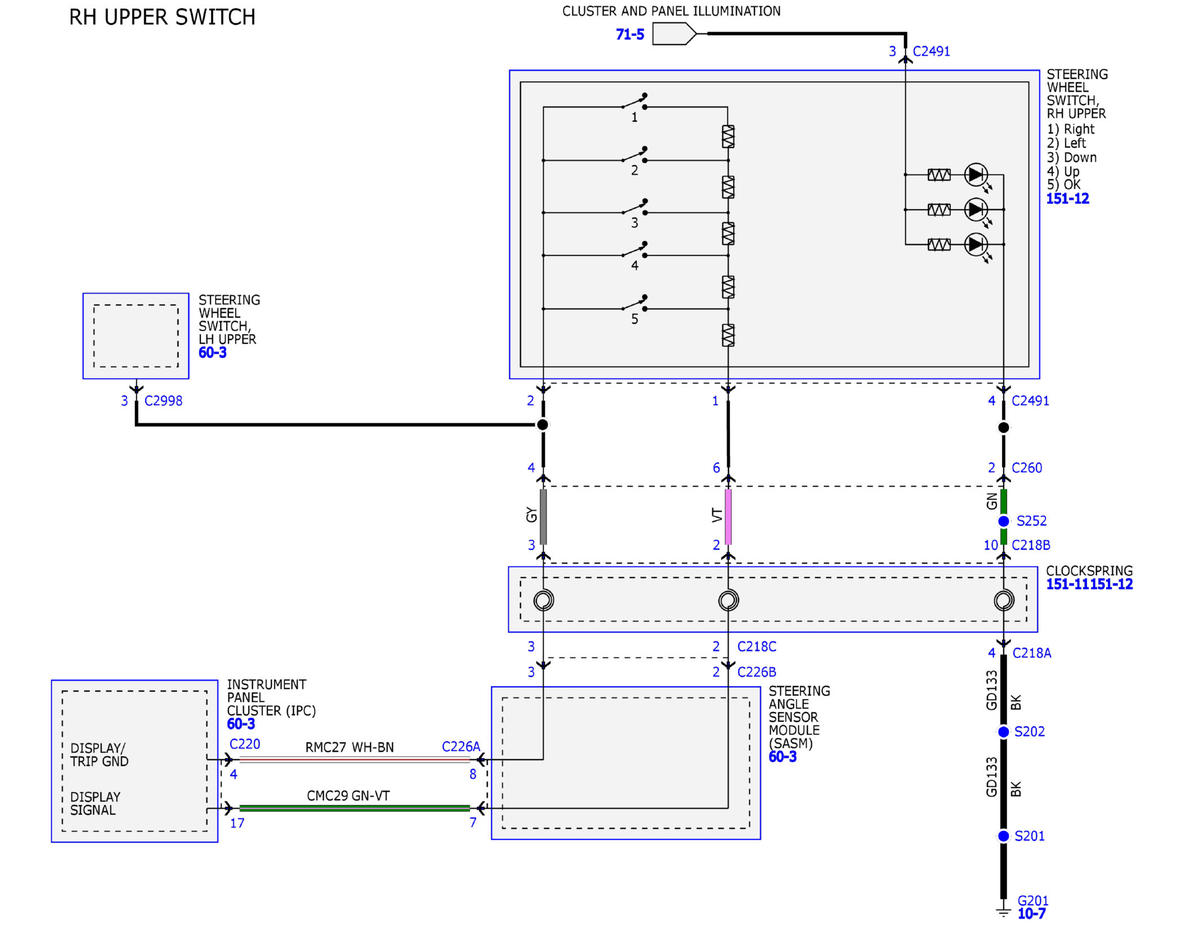

Fig 3: Audio System/Navigation - Sync Without Touchscreen Wiring Diagram (3 Of 11)

Courtesy of FORD MOTOR COMPANY

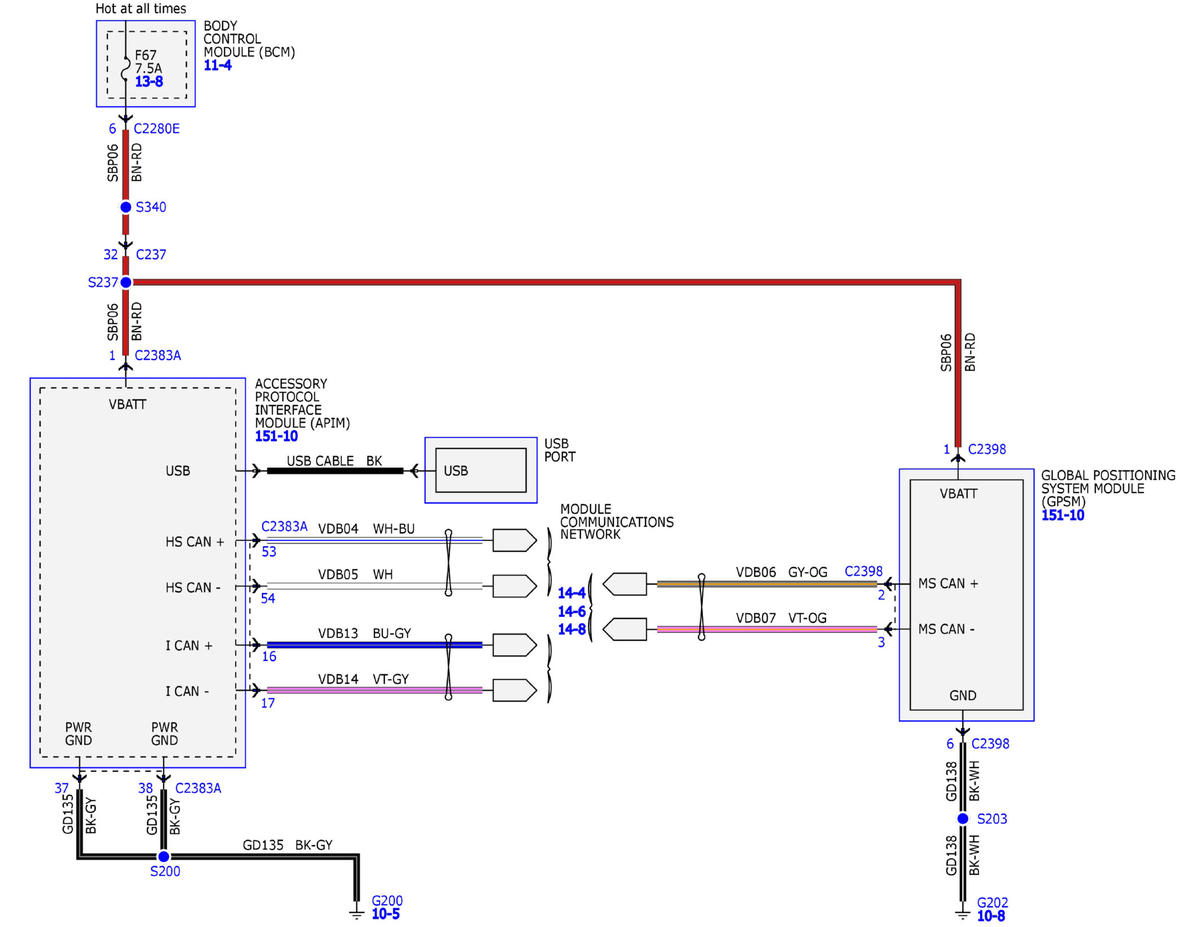

Fig 4: Audio System/Navigation - Sync Without Touchscreen Wiring Diagram (4 Of 11)

Courtesy of FORD MOTOR COMPANY

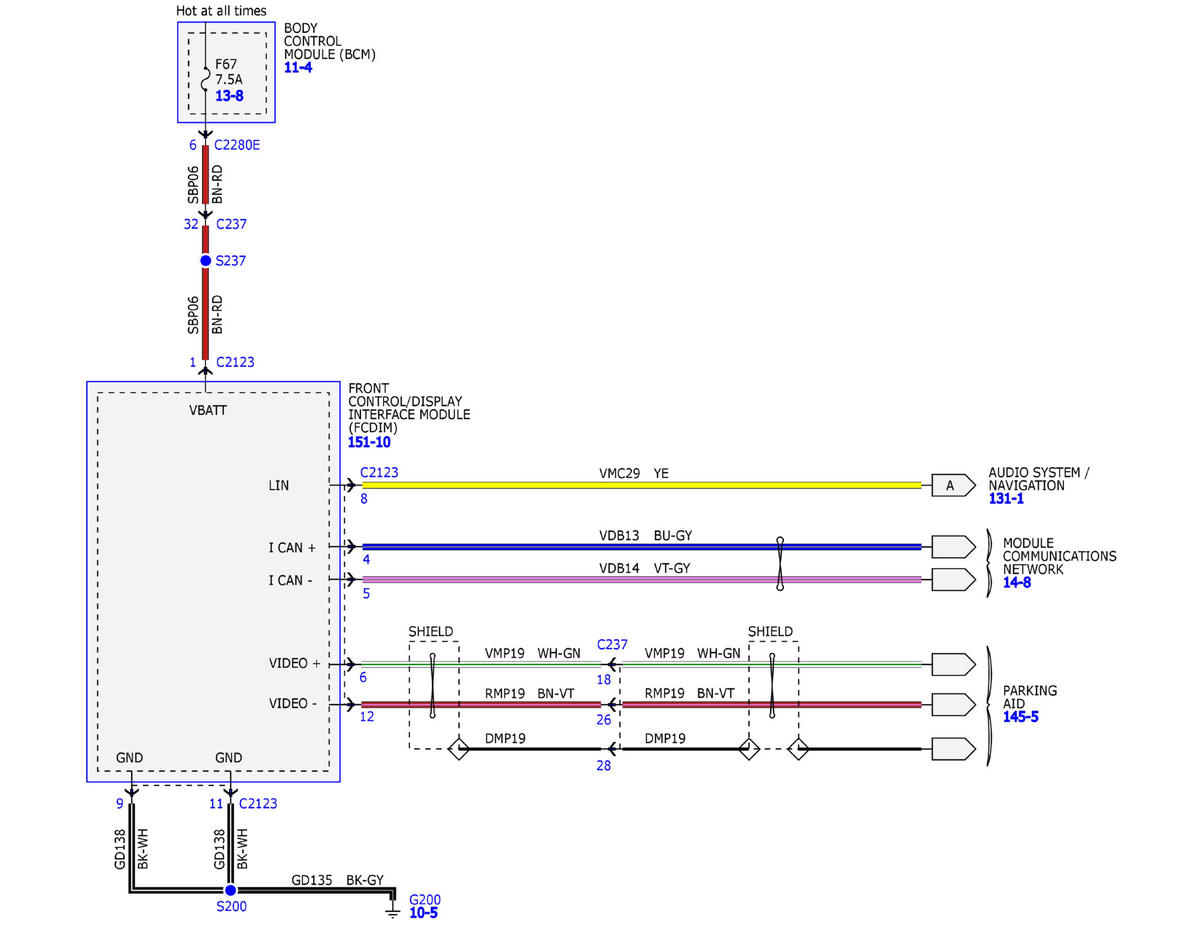

Fig 5: Audio System/Navigation - Sync Without Touchscreen Wiring Diagram (5 Of 11)

Courtesy of FORD MOTOR COMPANY

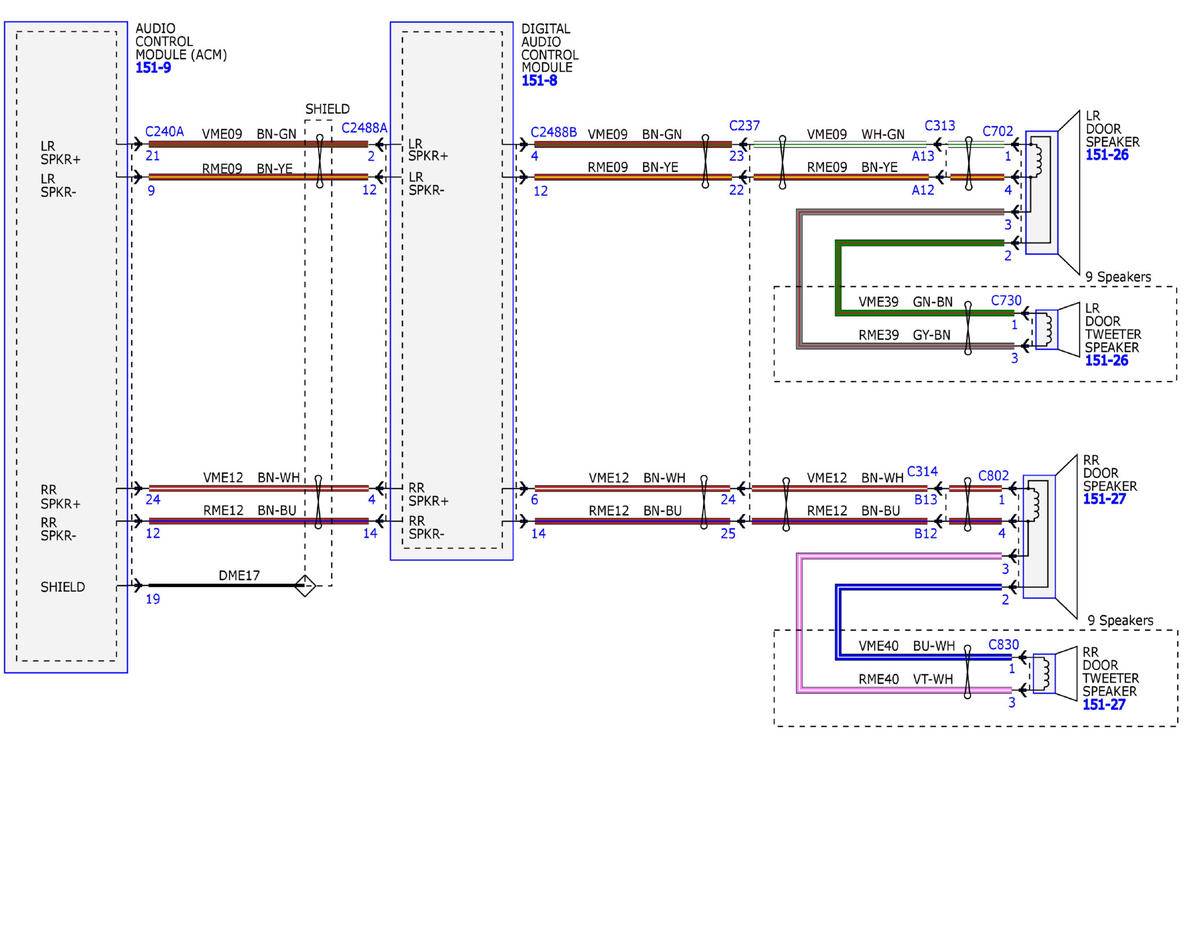

Fig 6: Audio System/Navigation - Sync Without Touchscreen Wiring Diagram (6 Of 11)

Courtesy of FORD MOTOR COMPANY

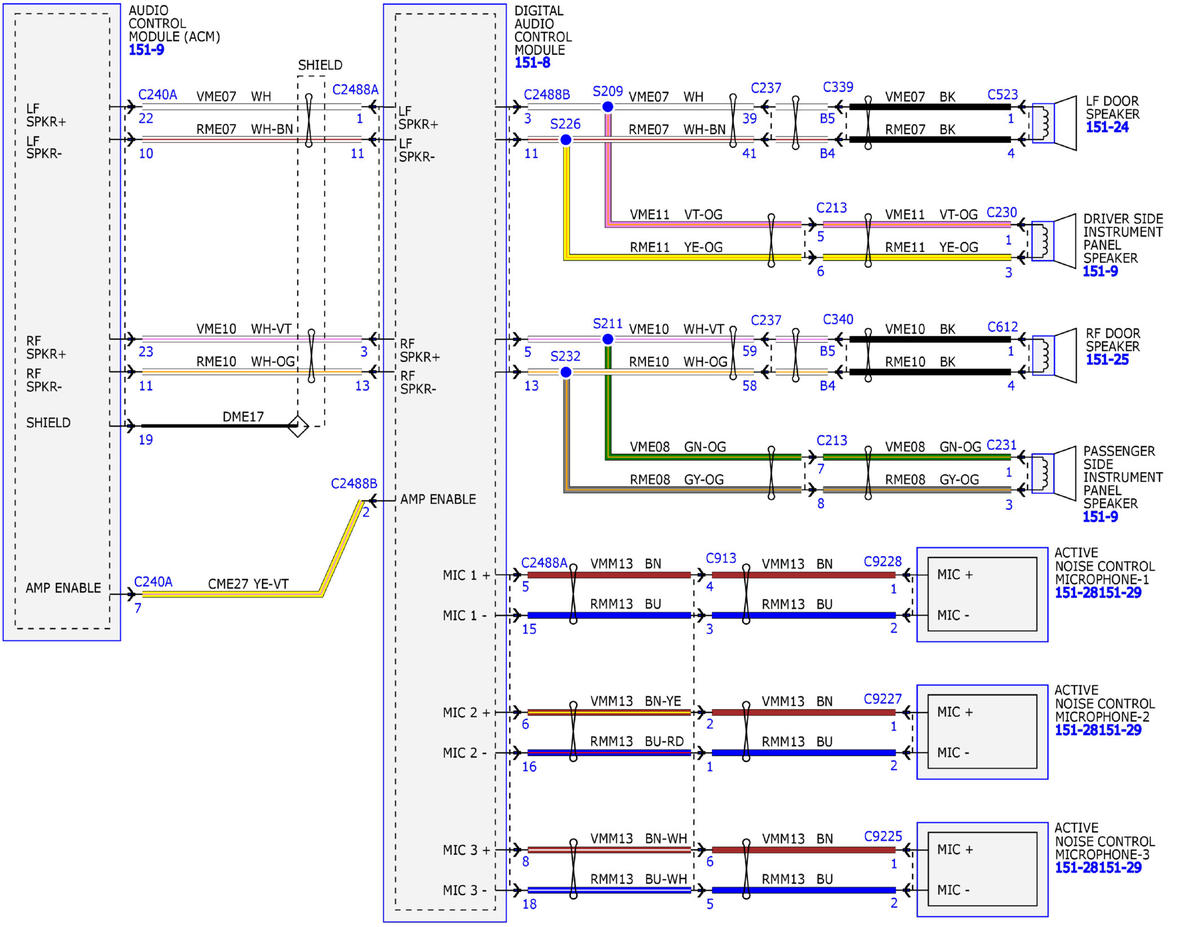

Fig 7: Audio System/Navigation - Sync Without Touchscreen Wiring Diagram (7 Of 11)

Courtesy of FORD MOTOR COMPANY

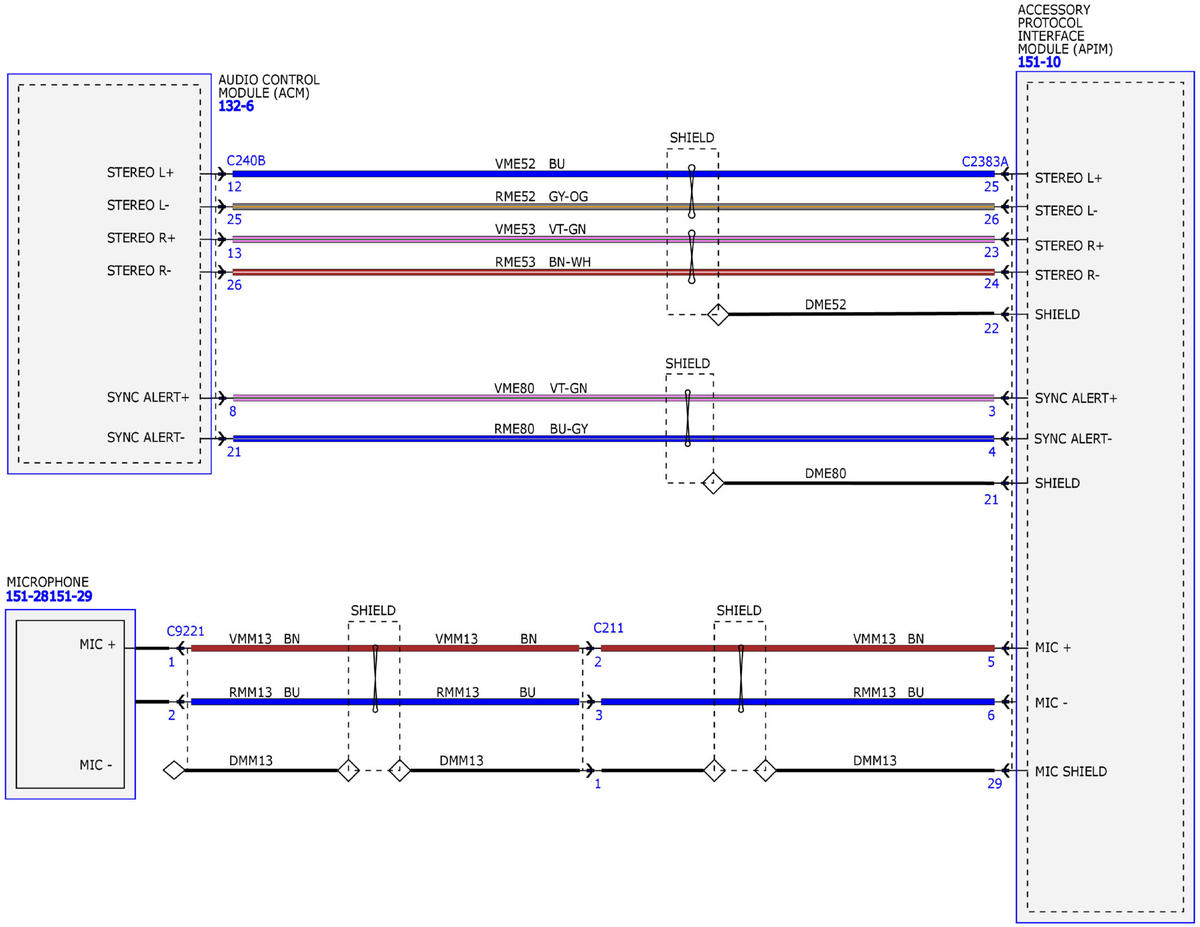

Fig 8: Audio System/Navigation - Sync Without Touchscreen Wiring Diagram (8 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 9: Audio System/Navigation - Sync Without Touchscreen Wiring Diagram (9 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 10: Audio System/Navigation - Sync Without Touchscreen Wiring Diagram (10 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 11: Audio System/Navigation - Sync Without Touchscreen Wiring Diagram (11 Of 11)

Courtesy of FORD MOTOR COMPANY
