Component Testing

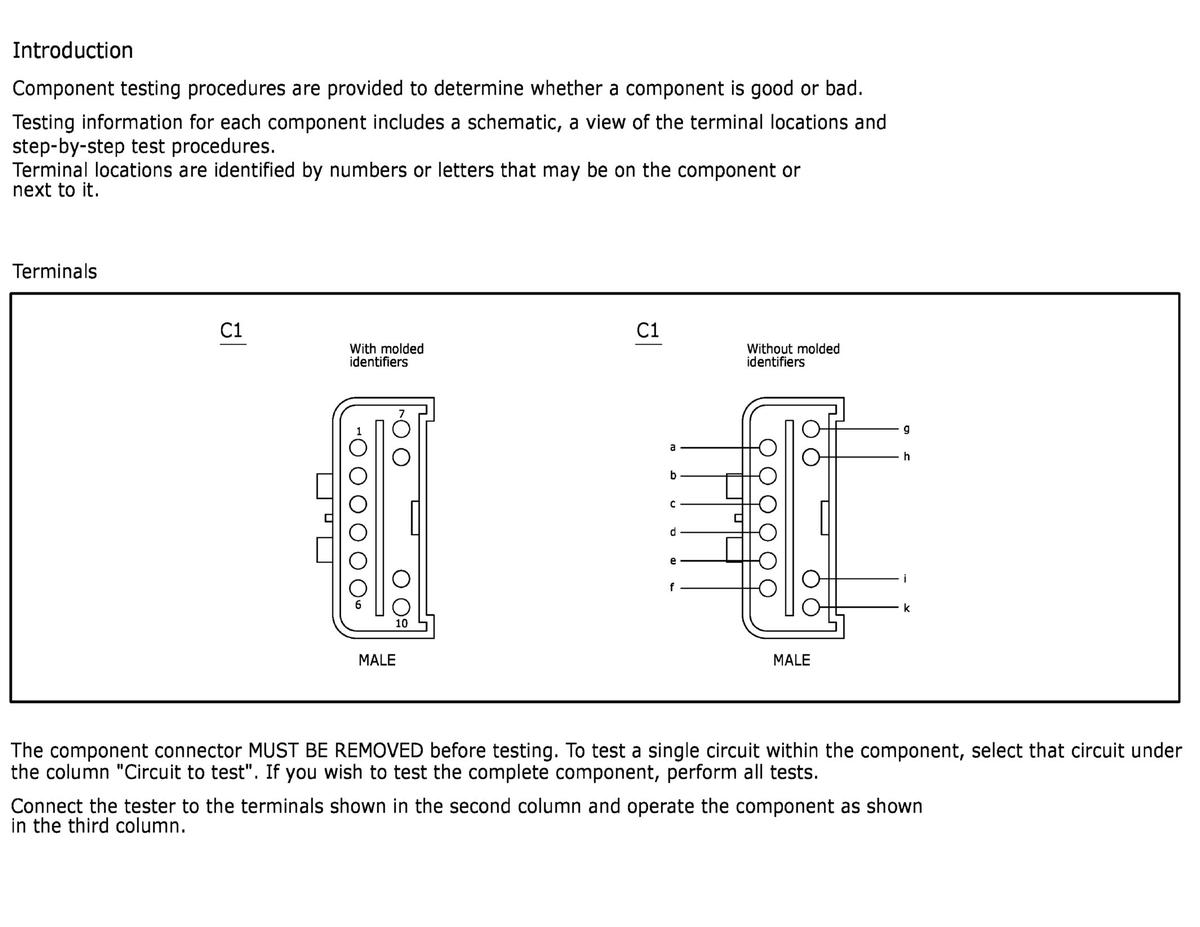

Fig 1: Component Testing Introduction
GFDW89010Courtesy of FORD MOTOR COMPANY

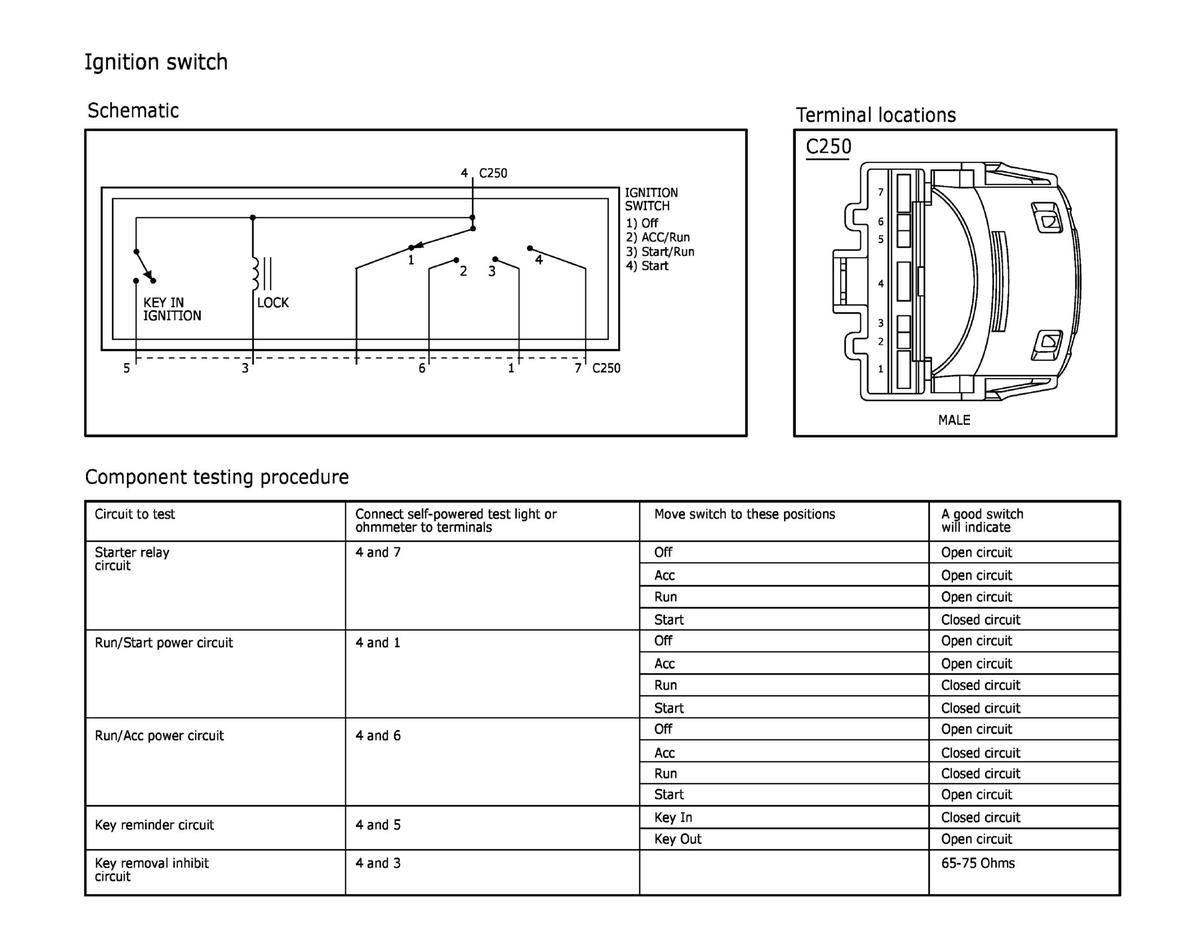

Fig 2: Ignition Switch Component Testing (1 Of 2)
GFDW89011Courtesy of FORD MOTOR COMPANY

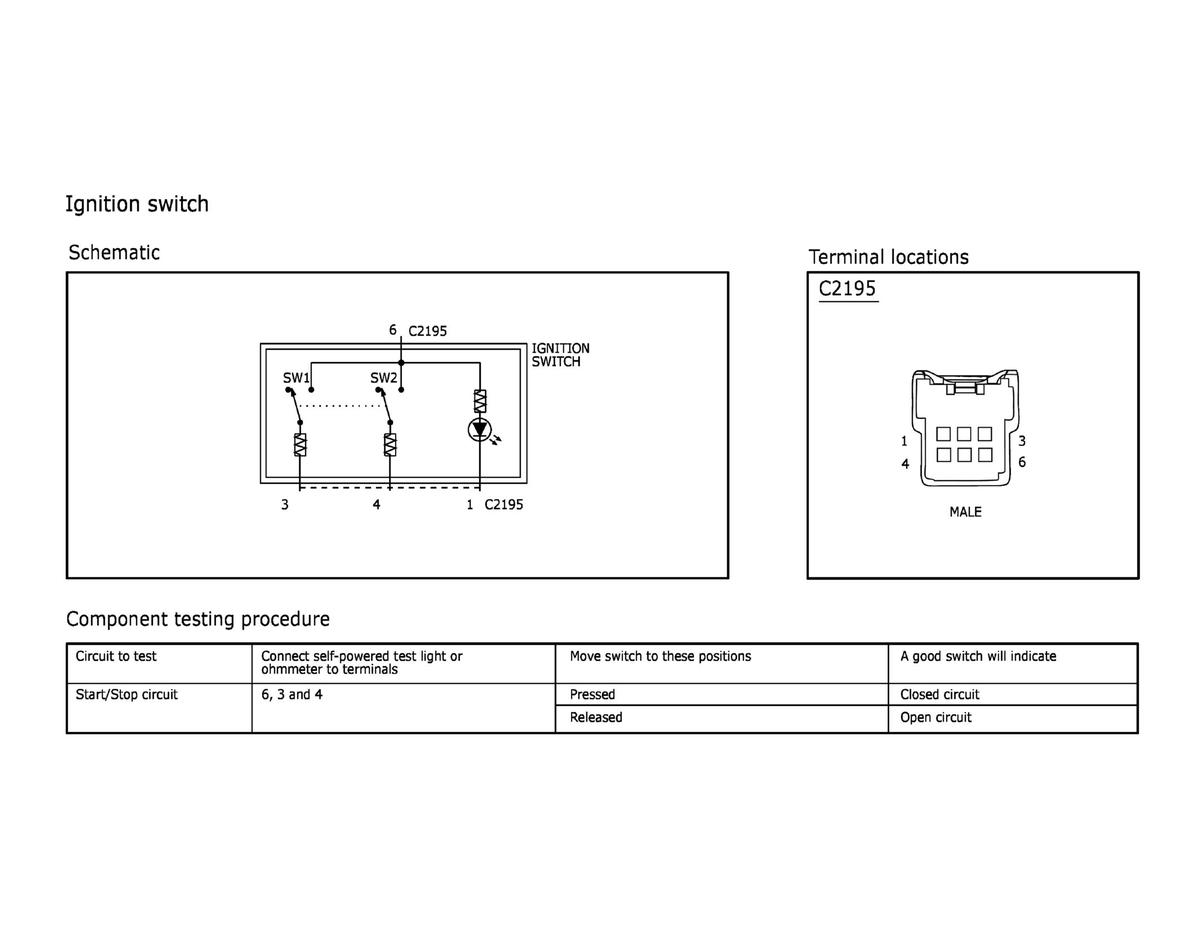

Fig 3: Ignition Switch Component Testing (2 Of 2)
GFDW89012Courtesy of FORD MOTOR COMPANY

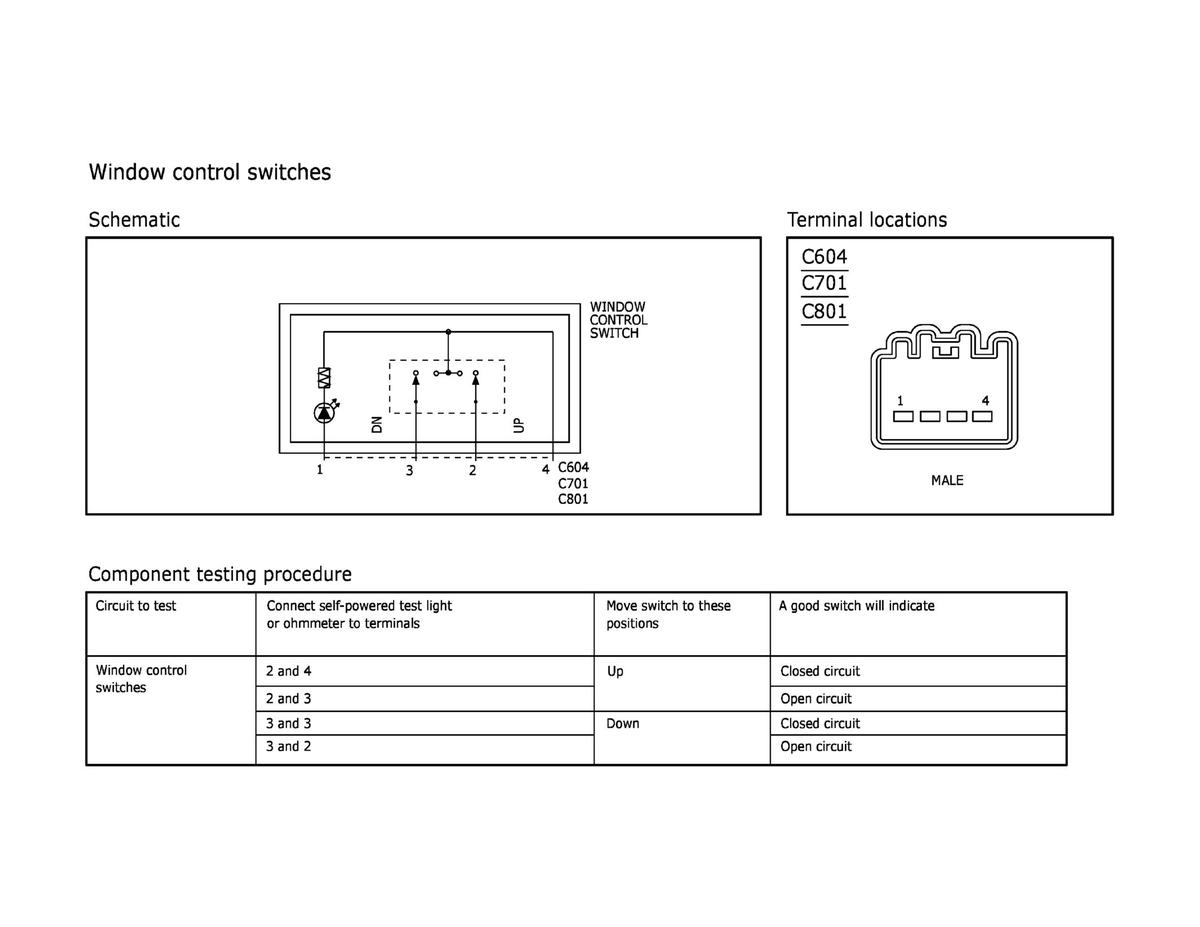

Fig 4: Window Control Switches Component Testing
GFDW89013Courtesy of FORD MOTOR COMPANY

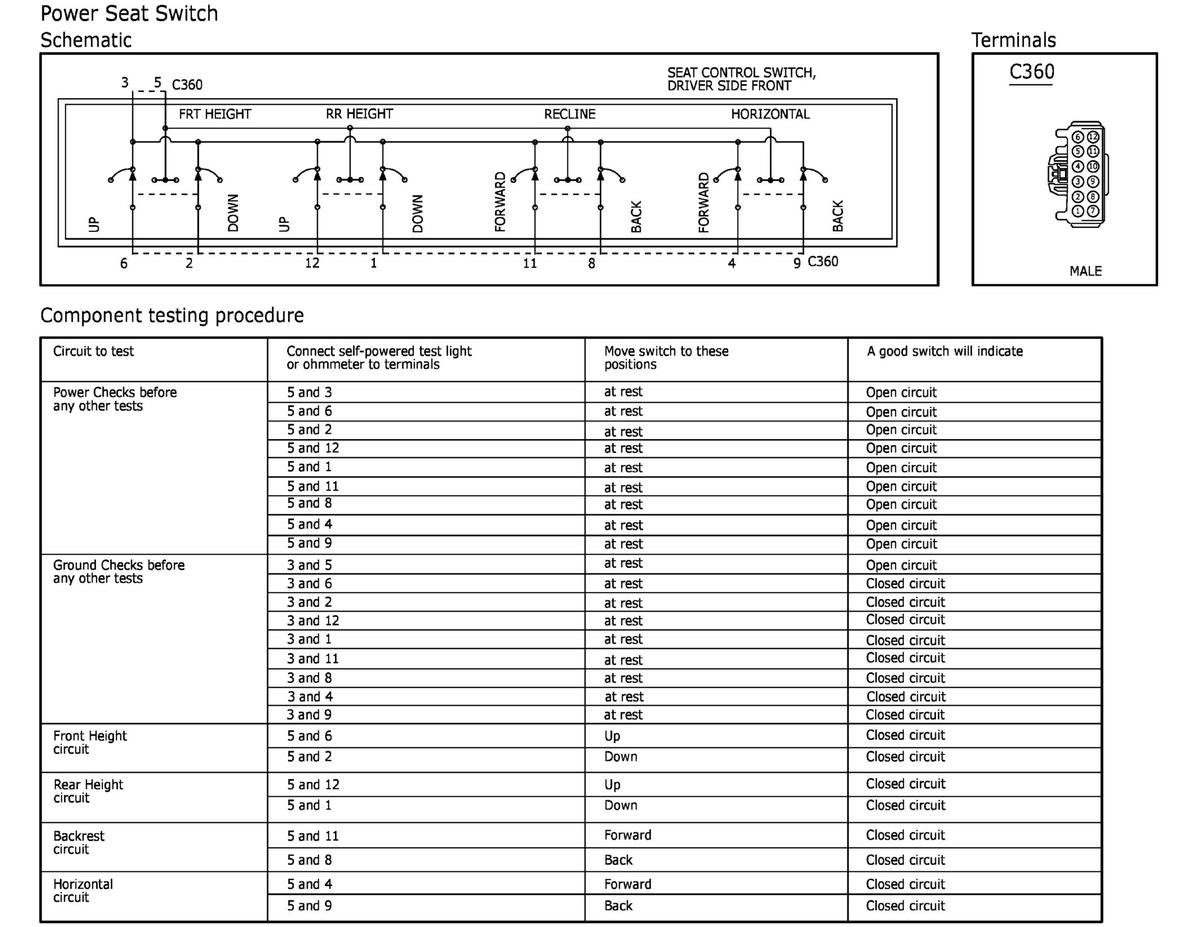

Fig 5: Power Seat Switch Component Testing
GFDW89014Courtesy of FORD MOTOR COMPANY

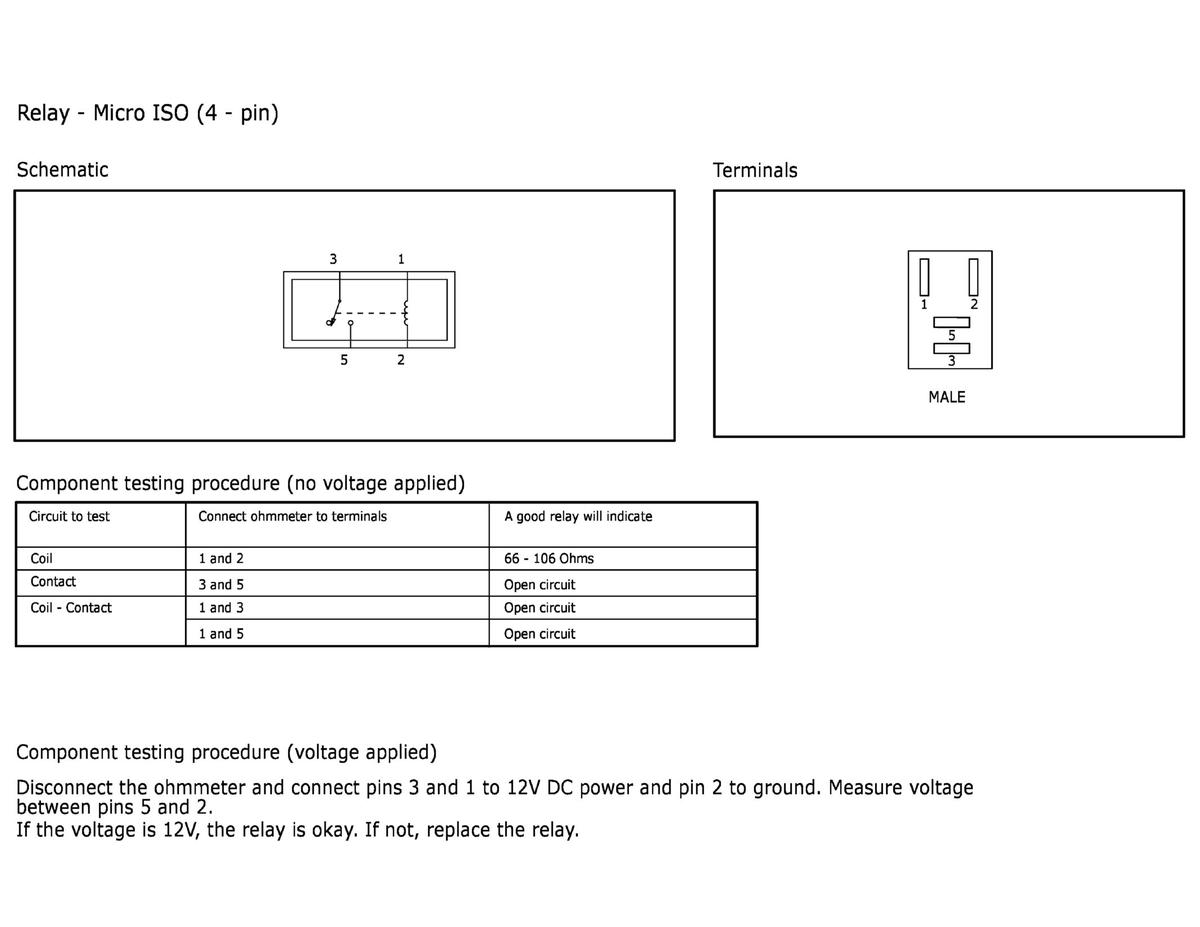

Fig 6: Relay - Micro ISO (4 - Pin) Component Testing
GFDW89015Courtesy of FORD MOTOR COMPANY

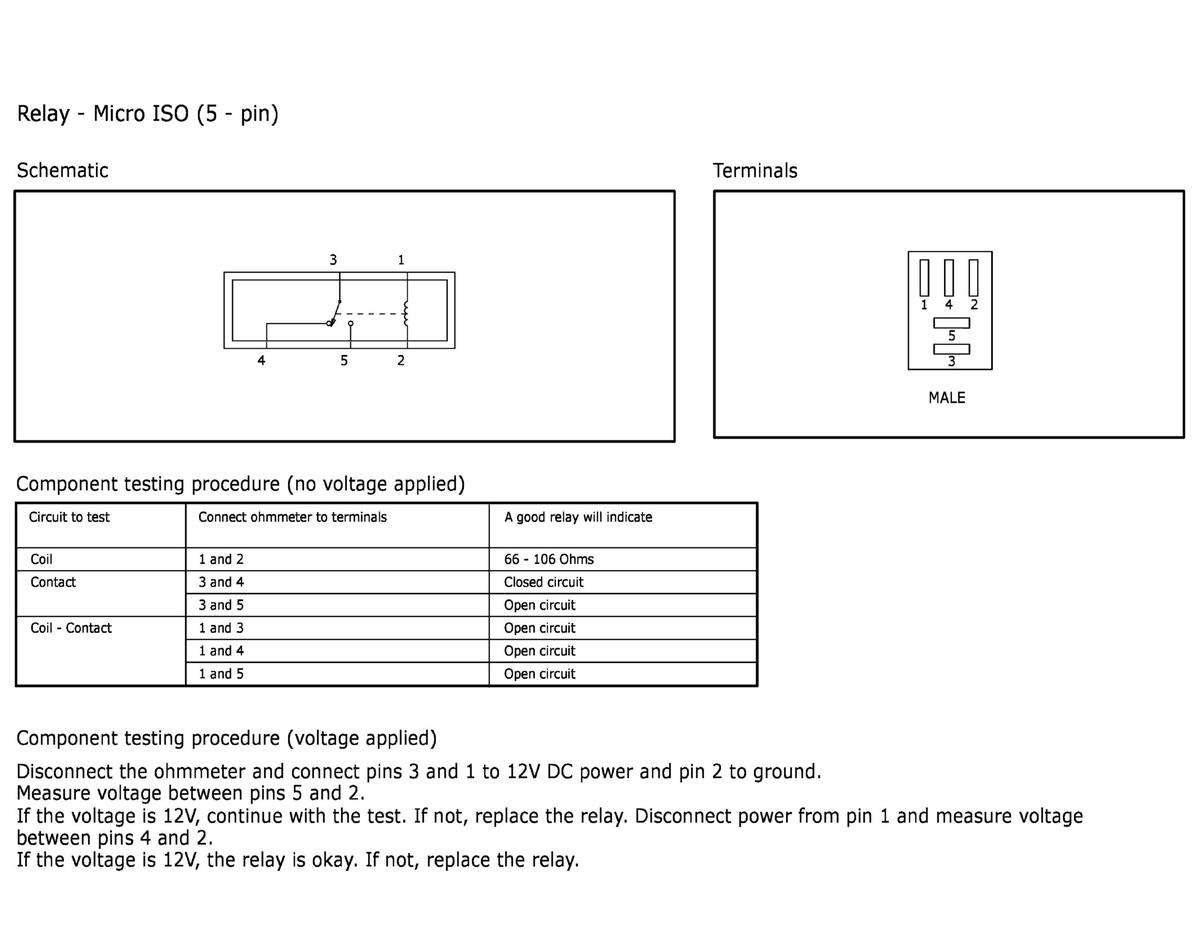

Fig 7: Relay - Micro ISO (5-Pin) Component Testing
GFDW89016Courtesy of FORD MOTOR COMPANY

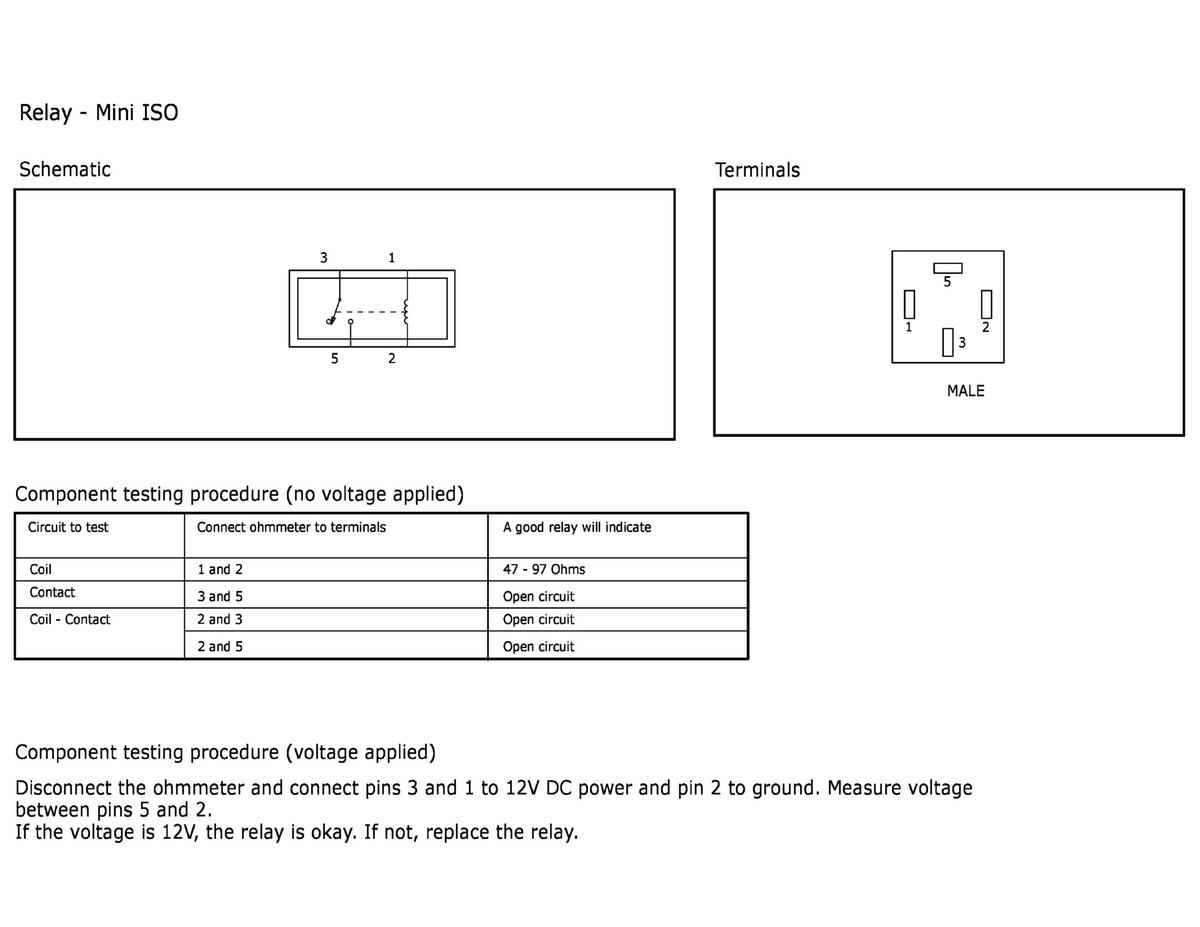

Fig 8: Relay - Micro ISO Component Testing
GFDW89017Courtesy of FORD MOTOR COMPANY

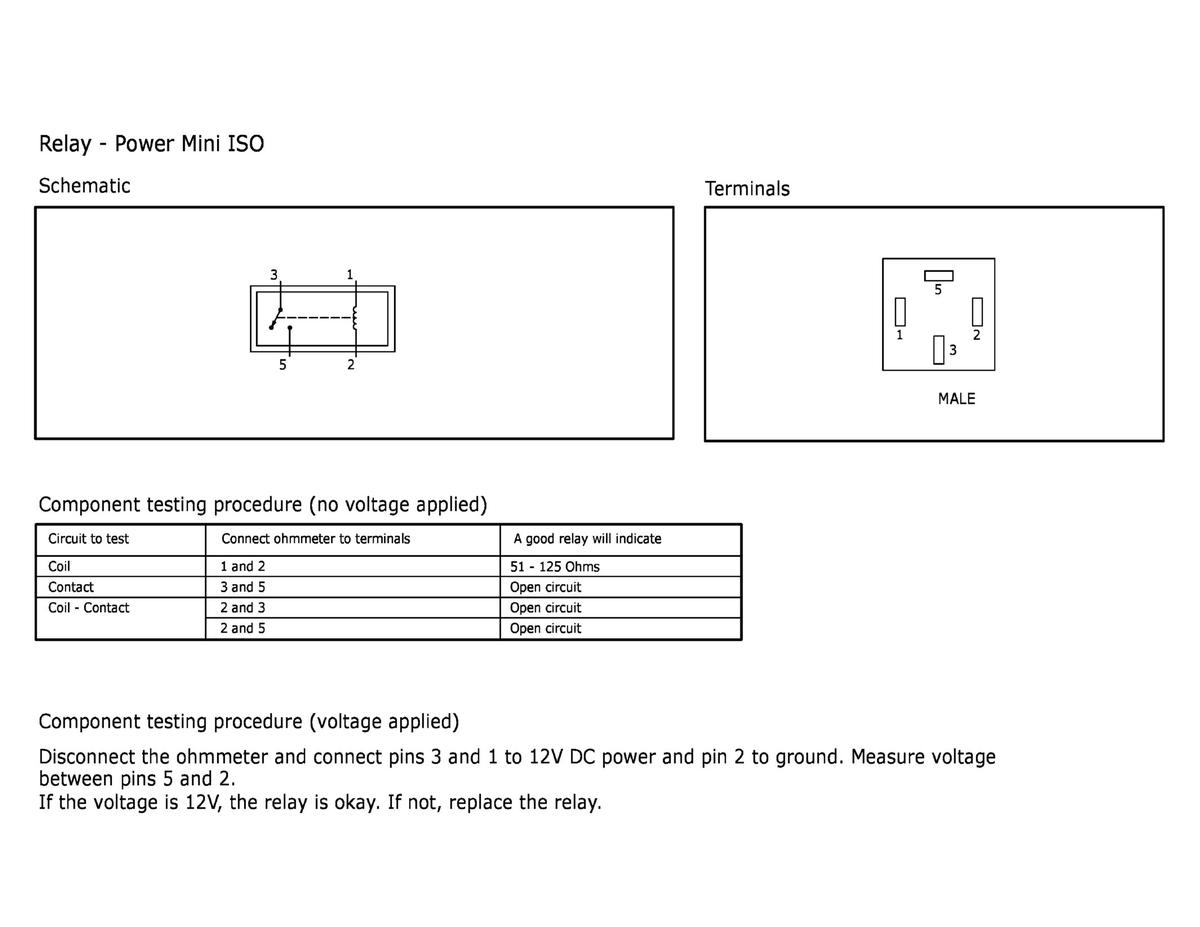

Fig 9: Relay - Power Mini ISO Component Testing
GFDW89018Courtesy of FORD MOTOR COMPANY
