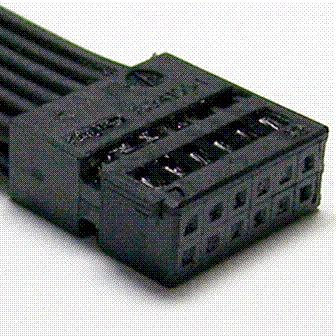

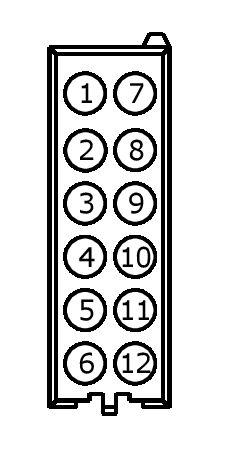

Connector End View (C4014B) - PARKING AID MODULE
Connector:C4014B
Description
PARKING AID MODULE
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RMP06 (YE-OG) | 22 | CTRL MOD. - PARKING AID # SENSORS FRONT - | |
| 2 | LMP06 (VT-GY) | 22 | CTRL MOD. - PARKING AID # SENSORS FRONT + | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | VMP11 (BU-GN) | 22 | SENSOR - PARKING AID # FRONT # (LEFT OUTER) | |
| 6 | VMP10 (WH-BU) | 22 | SENSOR - PARKING AID # FRONT # (LEFT INNER) | |
| 7 | VMP12 (BU-GY) | 22 | SENSOR - PARKING AID # FRONT # (RIGHT INNER) | |
| 8 | VMP13 (BU-OG) | 22 | SENSOR - PARKING AID # FRONT # (RIGHT OUTER) | |
| 9 | VMP20 (GY-OG) | 22 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE | |
| 10 | VMP21 (WH-BN) | 22 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1178 |
Service Part Number: BU2Z-14S411-YA Gauge: 18 Pin material: Tin (greased) Cavities: 12 Vehicle Uses Module - Reverse Park Aid (RPA) |
