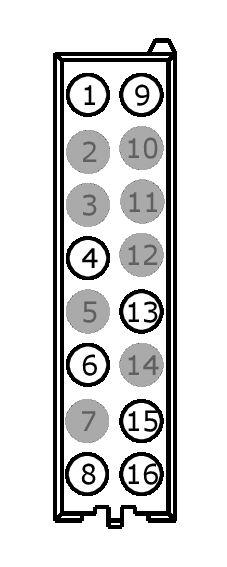

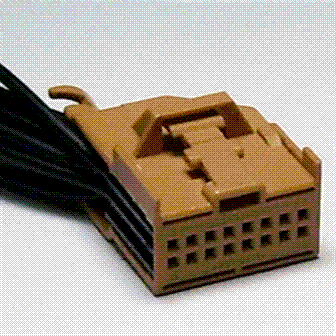

Connector End View (C4014A) - PARKING AID MODULE
Connector:C4014A
Description
PARKING AID MODULE
Color
BK
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBR01 (BU) | 20 | FUSE - 1 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | CMP18 (GN-BN) | 22 | SWITCH - PARKING AID | |
| 5 | * | * | Not Used | |
| 6 | VDB04 (WH-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 7 | * | * | Not Used | |
| 8 | GD152 (BK-BU) | 22 | GROUND - PILLAR D RIGHT # 2ND POINT (6L2T) | |
| 9 | CMP02 (GN-BU) | 22 | CTRL MOD. - PARKING AID # INDICATOR STATUS | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | CMP02 (GN-BU) | 22 | CTRL MOD. - PARKING AID # INDICATOR STATUS | |
| 14 | * | * | Not Used | |
| 15 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 16 | CMP18 (GN-BN) | 22 | SWITCH - PARKING AID |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1189 |
Service Part Number: BU2Z-14S411-ZA Gauge: 18 Pin material: Tin (greased) Cavities: 16 Vehicle Uses Module - Reverse Park Aid (RPA) |
