Connector End View (C1607) - ACTIVE PARK ASSIST SENSOR LH

Connector:C1607

Description

ACTIVE PARK ASSIST SENSOR LH

Color

Harness

15K867

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LMP06 (VT-GY)	20	CTRL MOD. - PARKING AID # SENSORS FRONT +
2	VMP20 (GY-OG)	22	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT
3	RMP06 (YE-OG)	20	CTRL MOD. - PARKING AID # SENSORS FRONT -

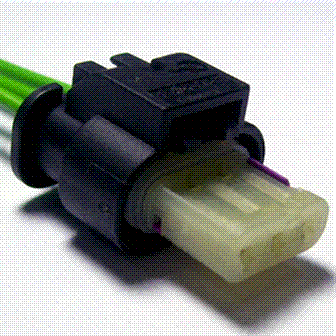

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1386

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-ARA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Sensor - Front Park Aid (FPA)
