Parking Brake Cable Adjustment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Base Part Number: 2780

Adjustment

All Vehicles

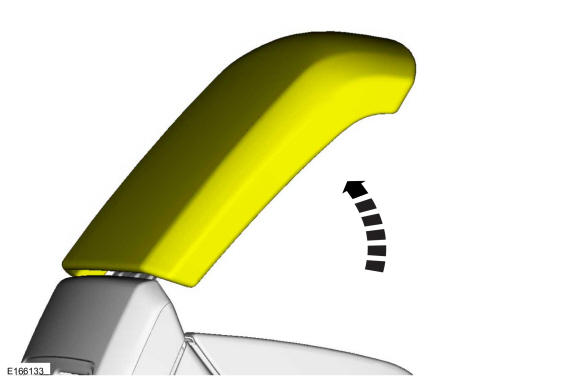

1. Courtesy of FORD MOTOR COMPANY

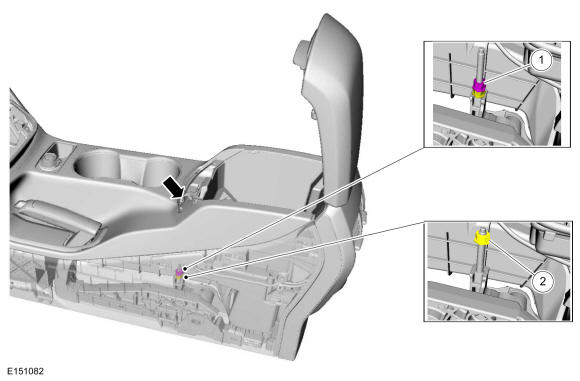

2. Courtesy of FORD MOTOR COMPANY

Vehicles Equipped With A Media Hub

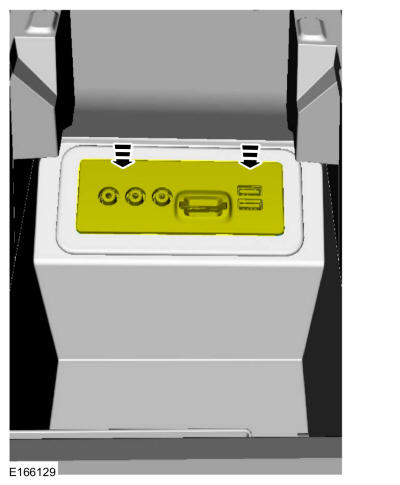

3. Courtesy of FORD MOTOR COMPANY

All Vehicles

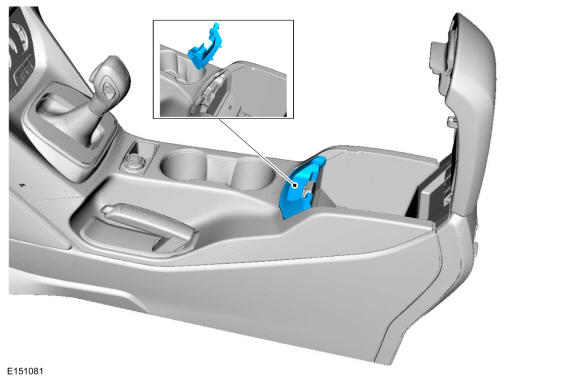

4. Courtesy of FORD MOTOR COMPANY

5. Refer to: Jacking and Lifting - Overview .

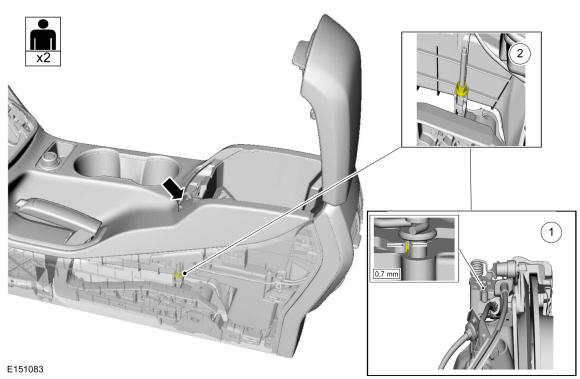

6. NOTE: Make sure the parking brake control is fully released.
   NOTE: This procedure step requires the specified number of technicians
   1. Insert a 0.7 mm (0.027 in) feeler gauge between the parking brake lever and the brake caliper abutment, on both sides.
   2. Tighten the parking brake cable adjustment nut until movement is observed on one of the parking brake levers.
   3. Remove the feeler gauges.

   Courtesy of FORD MOTOR COMPANY

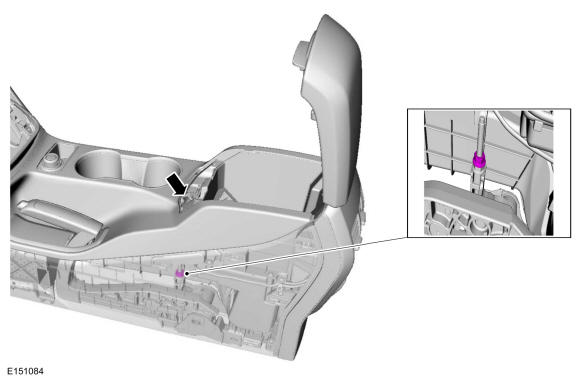

7. Torque: 18 lb.in (2 Nm)

   Courtesy of FORD MOTOR COMPANY

Vehicles Equipped With A Media Hub

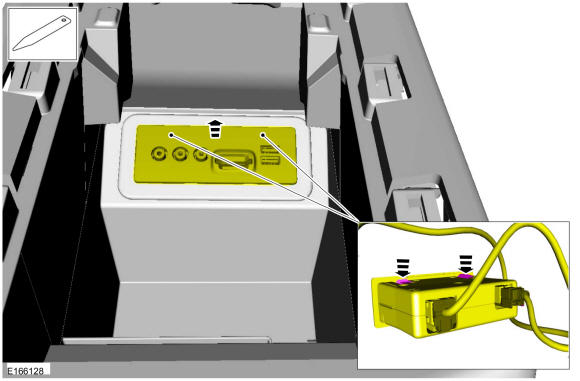

8. Courtesy of FORD MOTOR COMPANY

All vehicles

9. Courtesy of FORD MOTOR COMPANY

10. Courtesy of FORD MOTOR COMPANY
