Brake Pedal And Bracket: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Accelerator Pedal .

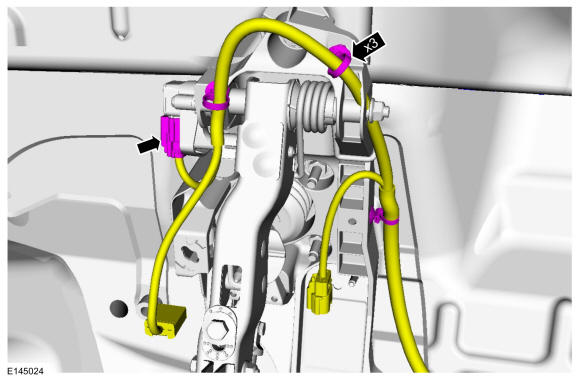

- Refer to: Stoplamp Switch .
- Refer to: Driver Knee Airbag .

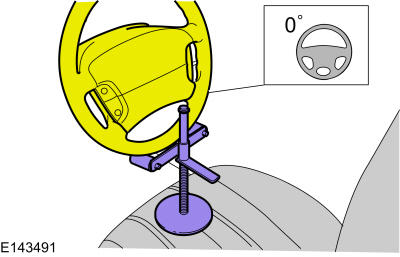

- Steering wheel in straight ahead position.
-

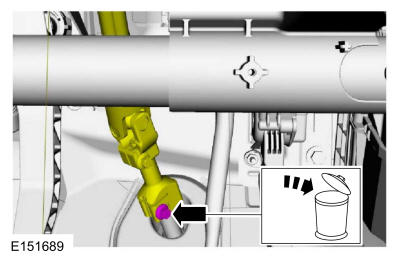

WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
Discard the specified component. Follow local disposal regulations.

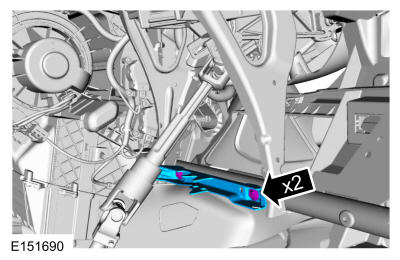

Torque: 21 lb.ft (28 Nm)
- Torque: 133 lb.in (15 Nm)
- Torque: 133 lb.in (15 Nm)

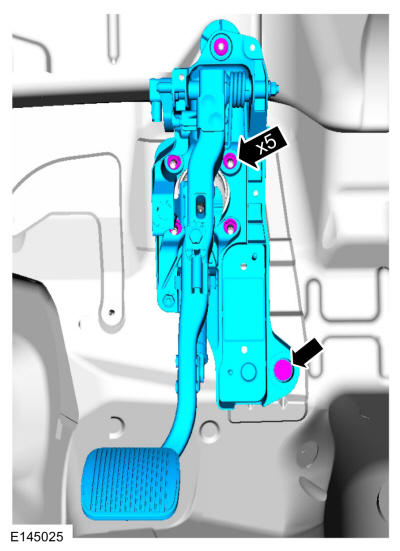

- Torque: 17 lb.ft (23 Nm)
