Brake Pedal And Bracket: Installation

  1. To install, reverse the removal procedure.

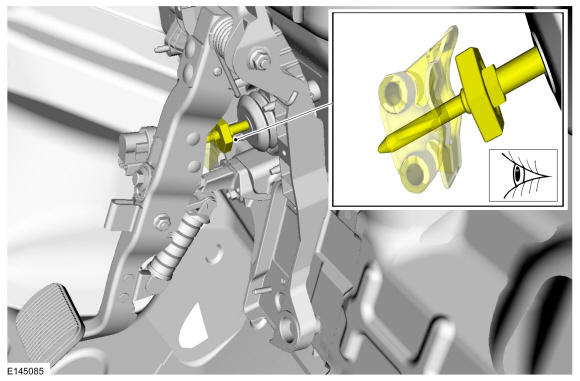

  2. NOTE: Make sure the brake booster rod is positioned correctly into the clevis block.

    Visual check.

GFD223084Courtesy of FORD MOTOR COMPANY
