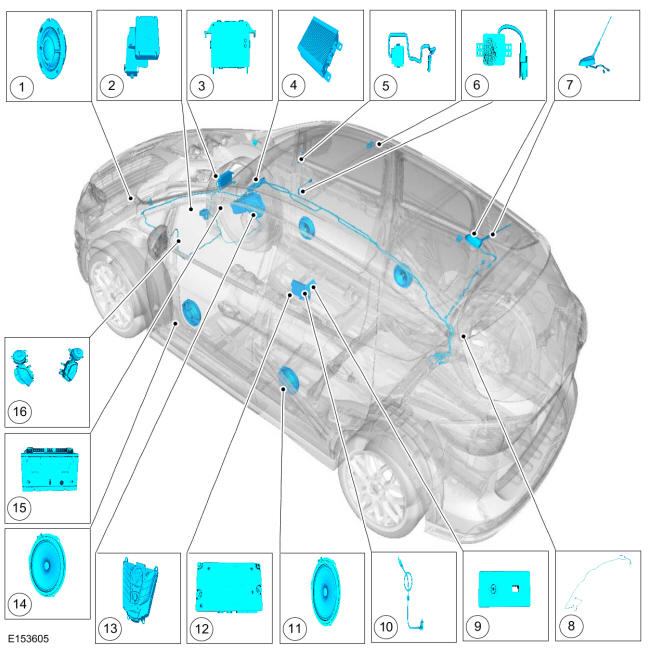

Information And Entertainment System - Component Location
| Item | Description |
|---|---|
| 1 | Driver side instrument panel speaker (passenger side similar) |
| 2 | GPSM, located behind the IPC |
| 3 | FCDIM |
| 4 | DACMC |
| 5 | SYNC ® microphone (located in the overhead console) |
| 6 | Noise cancellation microphones (located in headliner) |
| 7 | Antenna |
| 8 | Antenna cable |
| 9 | Audio input socket and USB port |
| 10 | USB cable |
| 11 | Rear door speaker |
| 12 | APIM |
| 13 | FCIM |
| 14 | Front door speaker |
| 15 | ACM |
| 16 | RH upper and lower steering wheel controls |
