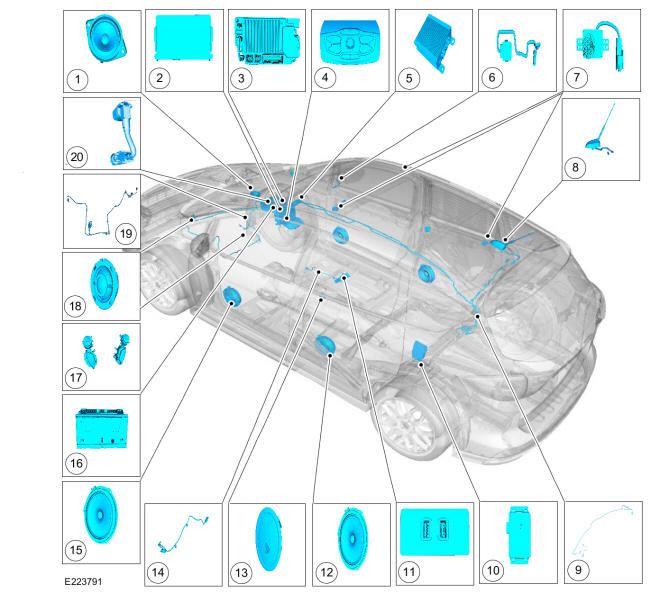

| 1 |
Center instrument panel speaker |
| 2 |
8-inch (203 mm) FDIM |
| 3 |
APIM |
| 4 |
Non-branded FCIM, Sony ®-branded similar |
| 5 |
DACMC |
| 6 |
SYNC ® microphone (located in the overhead console) |
| 7 |
ANC microphones (located in the LHF, RHF, and center rear of the headliner) |
| 8 |
AM/ FM/HD Radio ® (with Sony ®)/satellite radio/ GPS antenna |
| 9 |
Rear AM/ FM/HD Radio ® (with Sony ®) antenna coaxial cable and satellite radio/ GPS coaxial cable assembly |
| 10 |
TCU - PHEV |
| 11 |
USB hub |
| 12 |
LHR door speaker (RHR also shown) |
| 13 |
LHR door tweeter speaker (RHR also shown) (with Sony ®) |
| 14 |
USB hub to APIMUSB cable |
| 15 |
LHF door speaker (RHF also shown) |
| 16 |
ACM |
| 17 |
RH upper and lower steering wheel switches |
| 18 |
LH instrument panel tweeter speaker (RH also shown) |
| 19 |
Front AM/ FM/HD Radio ® (with Sony ®) antenna coaxial cable and satellite radio/ GPS splitter/cable assembly |
| 20 |
LVDS cable |
