Azimuth System Check

Check

1. Turn the ignition ON, engine OFF.
2. Set the parking brake on.

   Courtesy of FORD MOTOR COMPANY

3. Place the gearshift in DRIVE (D).

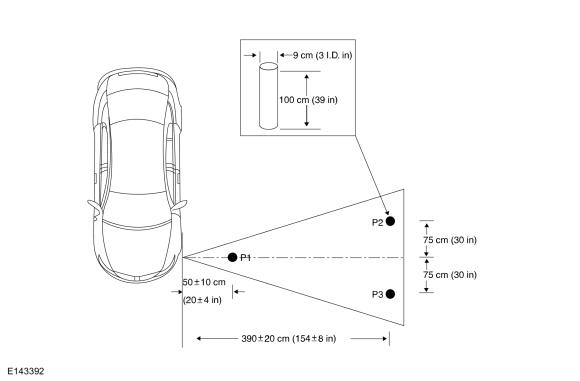

4. Verify the parking aid system detects the specified object when placed within the 3 specified locations (P1, P2, P3) and record the distances.
5. Confirm the recorded distances are within the specification ranges.
6. If the active park assist system does not detect the object, Refer to: Parking Aid .
