OEM Wiring Diagrams: Headlamps/Autolamps

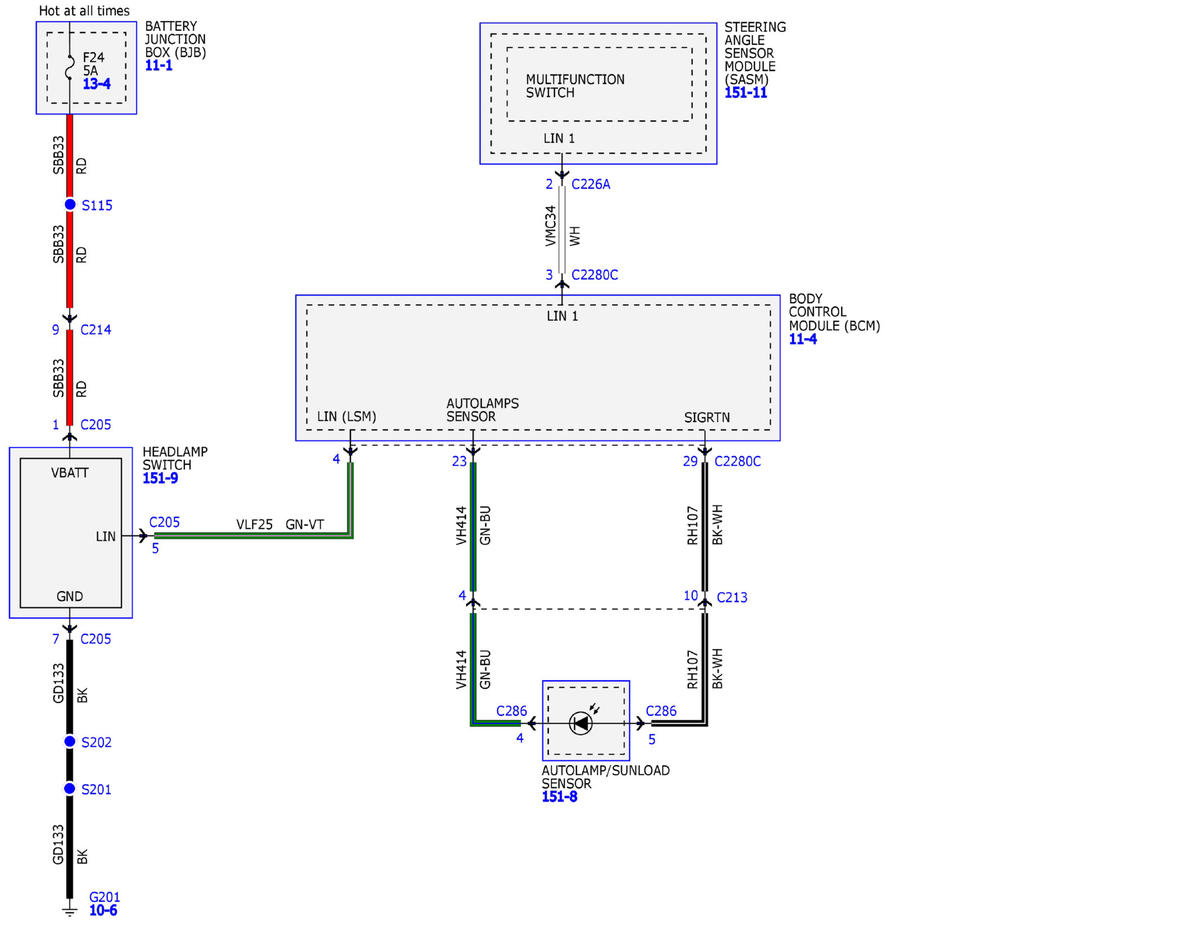

Fig 1: Headlamps/Autolamps Wiring Diagram (1 Of 2)
GFDW88878Courtesy of FORD MOTOR COMPANY

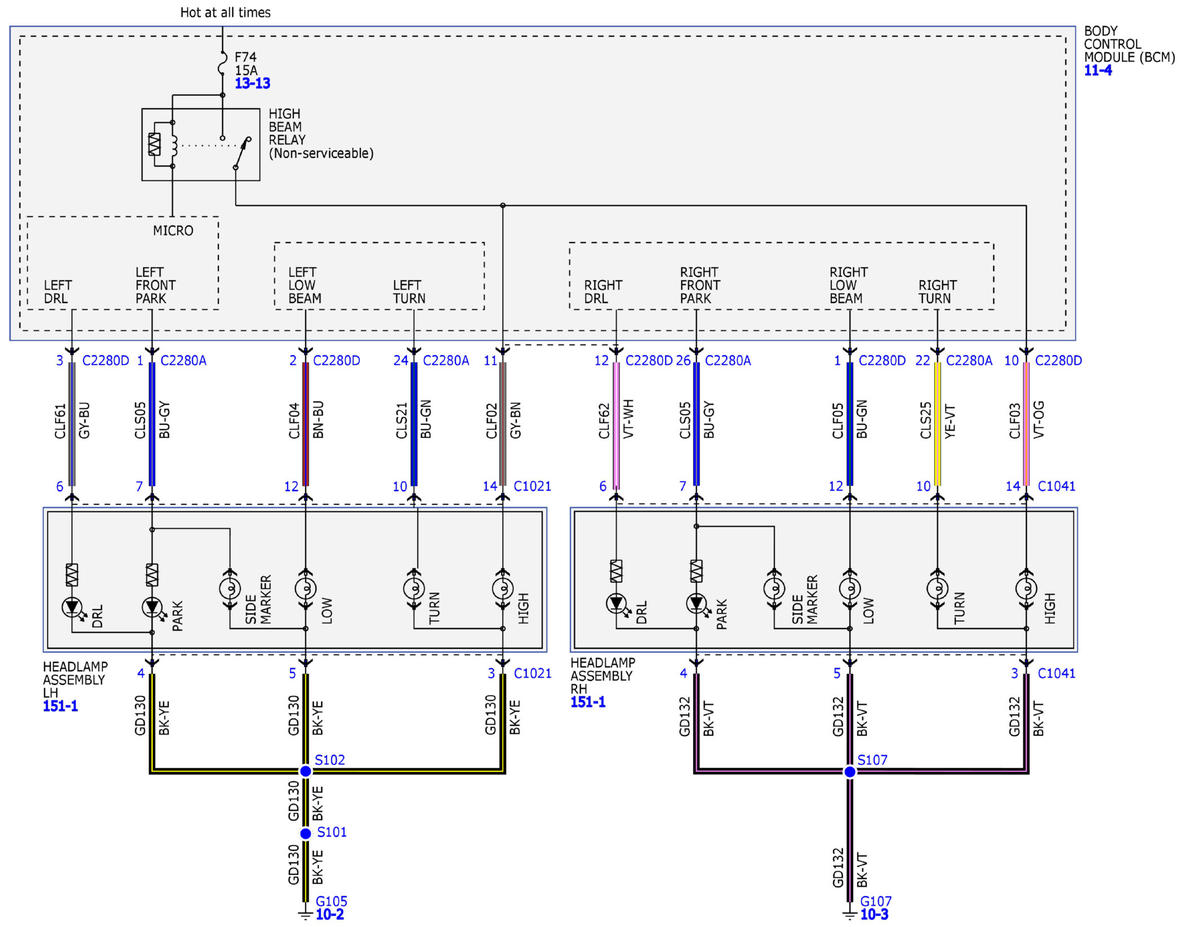

Fig 2: Headlamps/Autolamps Wiring Diagram (2 Of 2)
GFDW88879Courtesy of FORD MOTOR COMPANY
